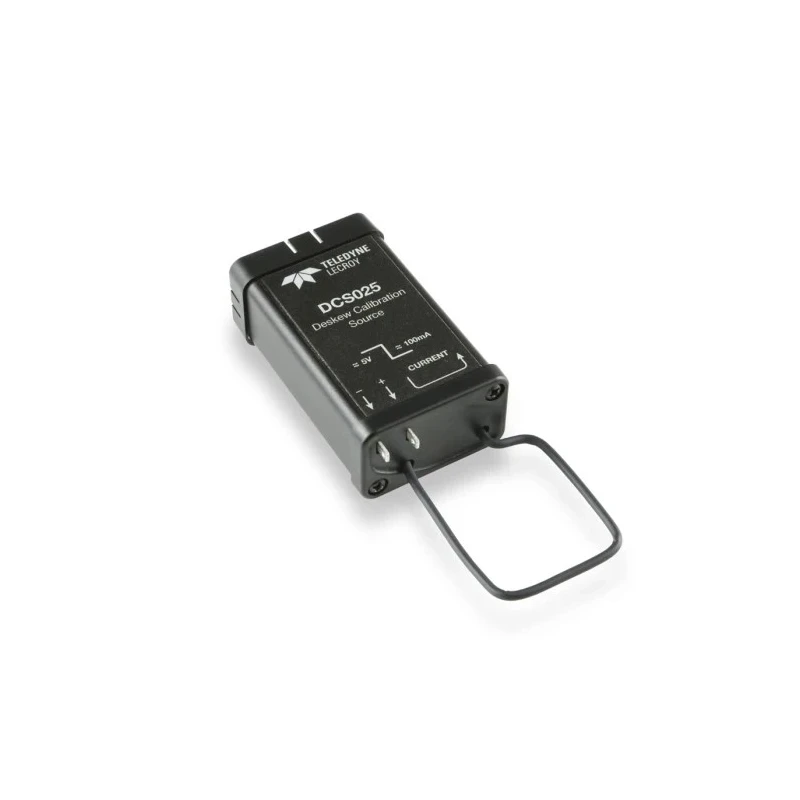

Teledyne LeCroy Deskew Calibration Source Compatible with CP150, CP030, AP015, CP031A, CP030A, CP500, CP031 DCS025
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Teledyne LeCroy |
| Model | DCS025 |
| Accessory Type | Deskew Calibration Source |
| For Use With | CP150, CP030, AP015, CP031A, CP030A, CP500, CP031 |
Key Features
- Generates time-aligned voltage and current pulses for exact deskew calibration.
- Features a signal fall time (80-20%) of 10 ns and a static skew of 1 ns for high precision.
- Operates reliably within an ambient temperature range of 0 to 50 degrees Celsius.
- Provides time-aligned output signals of 5 V voltage and 100 mA current pulses.
- Compatible with 30 A, 150 A, and 500 A current probes with various loop sizes.
- Supports both standard and high-sensitivity current probes for versatile applications.
- Critical for accurate instantaneous power and semiconductor device loss measurements.
- Widely used in science, engineering, medical, automotive, telecom, and general laboratory applications.
Product Description
Teledyne LeCroy DCS025 Deskew Calibration Source offers precise calibration capability by generating time-aligned voltage and current pulses specifically designed to deskew voltage and current probes.
It is essential for applications where minimal propagation delay differences between probes significantly impact measurement accuracy, such as instantaneous power semiconductor loss measurements.
The DCS025 model provides a signal fall time of 10 ns (80-20%) and a very low static skew of only 1 ns, ensuring high precision in measurements. It functions effectively in environments with operating temperatures from 0 to 50 degrees Celsius.
The calibration source outputs time-aligned signals of 5 V voltage and 100 mA current pulses. Its loop size supports compatibility with current probes rated for 30 A, 150 A, and 500 A, catering to both standard and high-sensitivity probe types.
Designed for use in various professional fields, the device is suitable for scientific research, engineering tasks, medical laboratories, automotive industry diagnostics, telecommunications testing, and general purpose laboratory calibration.
Generates time-aligned voltage and current pulses for exact deskew calibration. Features a signal fall time (80-20%) of 10 ns and a static skew of 1 ns for high precision. Operates within 0 to 50 °C ambient temperature range.
Provides 5 V voltage and 100 mA current pulses outputs. Compatible with 30 A, 150 A, and 500 A current probes loop sizes. Supports both standard and high-sensitivity current probes. Crucial for precise instantaneous power semiconductor loss measurements.
Applicable in science, engineering, medical, automotive, telecom, and laboratory settings. This product is made in the United States and supplied in new condition, ensuring reliable performance and durability. Explore more high-quality Oscilloscope Probe Accessories and calibration sources on EnvMart for your laboratory and testing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Teledyne LeCroy DCS025 features a signal fall time of 10 ns (80-20%).
This model has a static skew of only 1 ns, ensuring high precision in measurements.
It provides time-aligned output signals of 5 V voltage and 100 mA current pulses.
The device operates reliably within an ambient temperature range of 0 to 50 degrees Celsius.
It is compatible with current probes rated for 30 A, 150 A, and 500 A, including both standard and high-sensitivity types.
This model is widely used in science, engineering, medical, automotive, telecom, and general laboratory applications.
The DCS025 is classified as a deskew calibration source.
This product is made in the United States.
It is designed for use with models CP150, CP030, AP015, CP031A, CP030A, CP500, and CP031.
It is critical for accurate instantaneous power and semiconductor device loss measurements by minimizing propagation delay differences between probes.
The brand of this calibration source is Teledyne LeCroy.
It generates time-aligned voltage and current pulses for exact deskew calibration.
