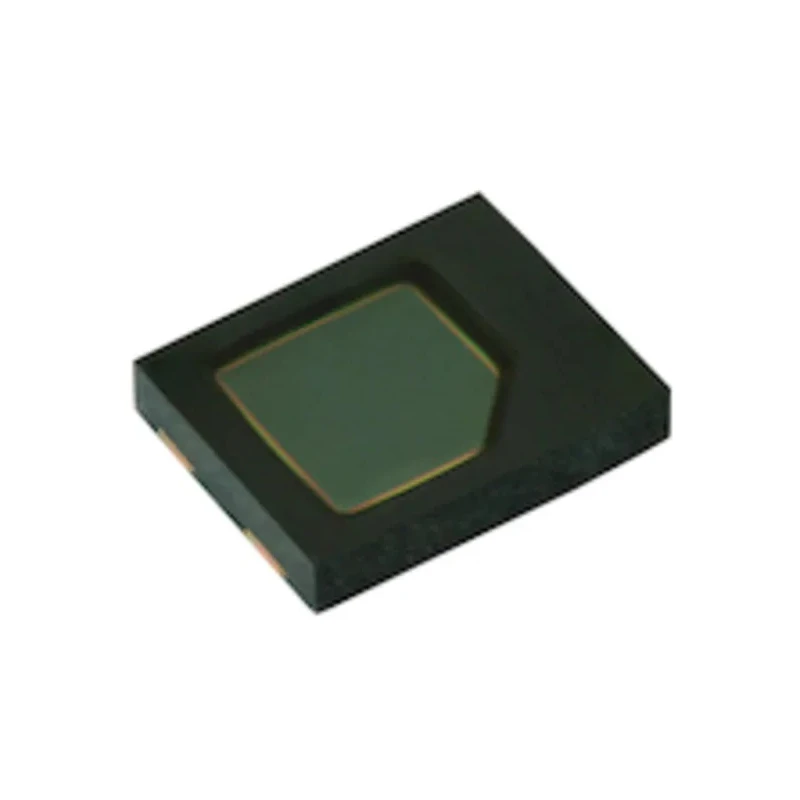

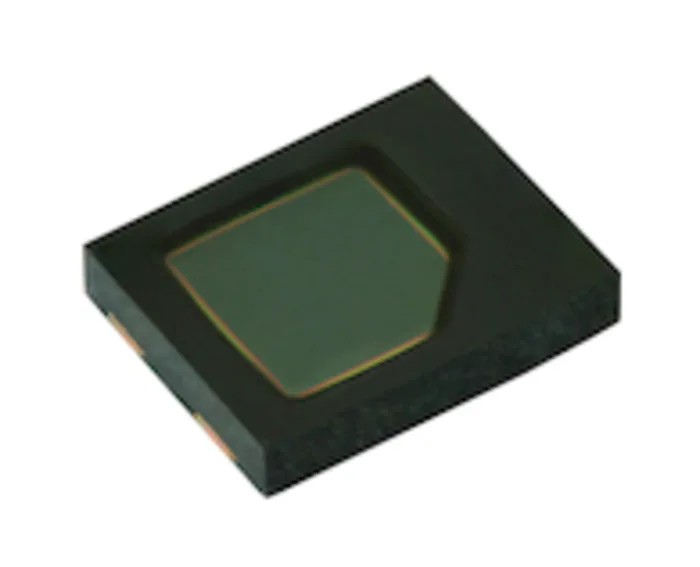

Vishay Infrared High Sensitivity Photodiode 5 x 4 x 0.9 mm Surface Mount QFN Package VEMD5010X01

Vishay VEMD5010X01 infrared photodiode is a high speed, high sensitivity PIN photodiode optimized for visible and near-infrared radiation detection. It features a low profile surface mount QFN package with compact dimensions of 5 mm length, 4 mm width, and 0.9 mm height, facilitating integration in modern electronic devices.

The photodiode has a radiant sensitive area of 7.5 mm² and exhibits a peak wavelength sensitivity at 940 nm, covering a spectral response range from 430 nm to 1070 nm. Its fast response time with typical rise and fall times of 100 ns suits high-speed optical detection applications.

Engineered for demanding environments, it operates within a broad temperature range of -40°C to 100°C and meets the automotive standard AEC-Q101, ensuring durability and reliability. The device is RoHS compliant, supporting environmentally responsible product design.

The Vishay photodiode is packaged in a 4-pin surface mount QFN form factor with tape and reel packaging, facilitating automated manufacturing processes. It features a 65-degree angle of half sensitivity that allows wide-angle detection, enhancing its versatility in photodetection tasks.

Key electrical parameters include a short circuit current of 26 μA, low dark current of 0.2 nA, an open circuit voltage of 350 mV, and a breakdown voltage of 20 V. The product is made in Malaysia and comes with a floor life of 72 hours at moisture sensitivity level 4 according to J-STD-020 standards.

Detects infrared spectrum, peak at 940 nm. Compact 5 x 4 x 0.9 mm surface mount QFN package. High photo and radiant sensitivity with 7.5 mm² sensitive area. Fast electrical response with 100 ns rise and fall times. Operational from -40°C to 100°C; AEC-Q101 qualified.

Low dark current and high precision electrical characteristics. 4-pin surface mount package on tape and reel for automated assembly. Wide 65-degree detection angle for extensive sensing coverage.

This Vishay photodiode is ideal for high-speed photo detection in industrial electronics, automotive sensing, communications, and various laboratory and manufacturing optical detection systems. Its robust construction and certified quality standards make it suitable for demanding industrial and commercial applications.
