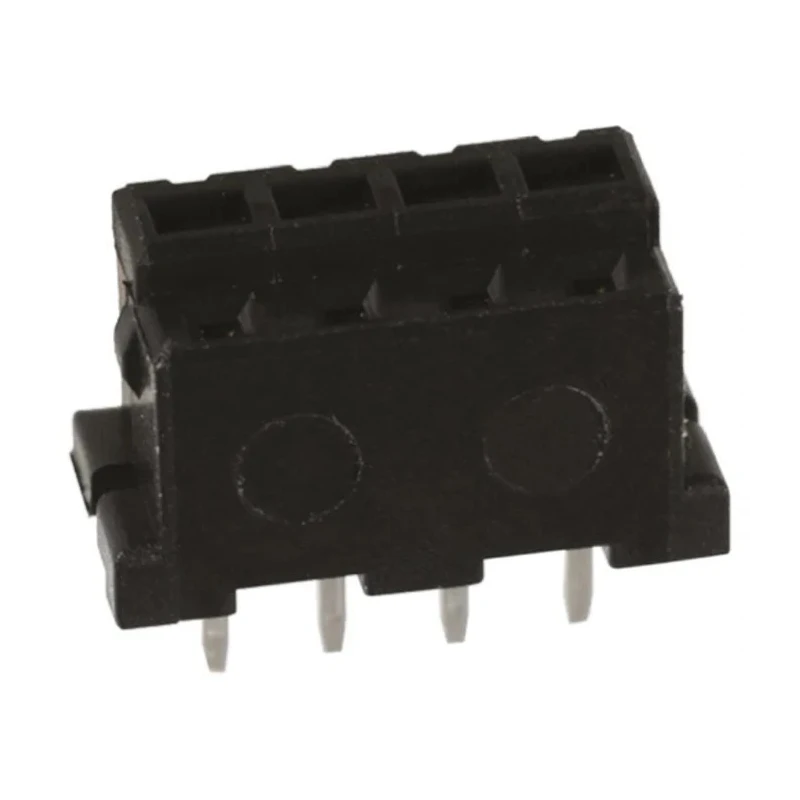

Hirose DF3 Series Straight Through Hole PCB Socket 4-Contact 1 Row 2 mm Pitch Solder DF3-4S-2DSA(25)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 12A |
| Model | DF3-4S-2DSA(25) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper |
| Series | DF3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 4 |
| Contact Gender | Female |
Key Features
- The socket features 4 contacts arranged in a single row for reliable board-to-board connection.
- It employs polyamide housing material ensuring excellent insulating properties.
- The contact gender is female, made of copper with tin plating for durability.
- Suitable for operating voltages up to 250 V and currents up to 12 A.
- Designed to operate reliably within temperatures ranging from -55°C to 105°C.
- Mount type is through hole, facilitating easy soldering onto PCBs.
- Compliant with RoHS standards, assuring environmental safety.
- Its compact 2 mm pitch supports low-profile discrete board connections.
Product Description
Hirose DF3-4S-2DSA(25) is a member of the DF3 Series Straight Through Hole PCB Sockets, designed for industrial electronic applications requiring durable and reliable board-to-board connections. Featuring 4 contacts in a single row with a precise 2 mm pitch, this socket ensures a compact form factor suited for space-sensitive applications.
The socket's housing is made from polyamide, providing excellent electrical insulation and mechanical strength. The female copper contacts are tin plated, promoting corrosion resistance and solderability essential for long-lasting connections.
Rated for use up to 250 V and 12 A, this connector supports moderate power transmission while maintaining safety compliance. Its thermal range from -55°C to 105°C enables operation across harsh environments typical in industrial and commercial electronics.
Termination via straight-through hole soldering facilitates secure PCB mounting, enhancing connection stability. The product adheres to RoHS environmental directives, supporting sustainable manufacturing practices.
Applications for this connector include printers, photocopiers, and similar electronic devices where reliable, low-profile, board-to-board socket connectors are crucial. The socket features 4 contacts arranged in a single row for reliable board-to-board connection.
It employs polyamide housing material ensuring excellent insulating properties. The contact gender is female, made of copper with tin plating for durability. Suitable for operating voltages up to 250 V and currents up to 12 A.
Designed to operate reliably within temperatures ranging from -55°C to 105°C. Mount type is through hole, facilitating easy soldering onto PCBs. Compliant with RoHS standards, assuring environmental safety. Its compact 2 mm pitch supports low-profile discrete board connections.
Ideal for electronic devices such as printers and photocopiers requiring robust PCB connections. Explore other electronics components for industrial, manufacturing, and commercial applications available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose DF3-4S-2DSA(25) PCB socket is rated for a maximum operating voltage of 250 V.
This model can handle currents up to 12 A.
It is designed to operate reliably within a temperature range of -55°C to 105°C.
The contacts in this socket are arranged with a pitch of 2 mm.
This socket features 4 contacts arranged in a single row.
The housing is made from polyamide, while the contacts are made of copper with tin plating.
This model uses solder termination for secure mounting onto PCBs.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
The mount type for this model is through hole, facilitating easy soldering onto PCBs.
The contacts are oriented in a straight configuration.
It is suitable for applications in devices like printers and photocopiers that require reliable board-to-board connections.
The country of origin for this socket is Japan.
