Silicon Labs Hall Effect Sensor Development Kit Si72xx with 6x Si72xx Sensors and Preloaded Demonstrations Si72xx

Name: Silicon Labs Hall Effect Sensor Development Kit Si72xx with 6x Si72xx Sensors and Preloaded Demonstrations Si72xx
Brand: Silicon Labs
SKU: 211172
Price: 611.13 USD
Availability: InStock



Category Sensor Development Tool Brand Silicon Labs Condition New

Specifications

Country of Origin	United States
Brand	Silicon Labs
Model	Si72xx
Sensor Technology	Hall Effect Sensor
For Use With	Si72xx Sensors
Standards/Approvals	RoHS
Kit Classification	Development Kit

Key Features

The kit includes 6 individually mounted Si72xx Hall Effect sensors on postage stamp sized add-on boards.
Preloaded demonstrations cover magnetic field data, temperature sensing, switch, analogue, PWM, SENT outputs, and tamper indication.
The kit features a wheel demo for precise position sensing including revolution counting and quadrant detection.
It includes an EFM32 Happy Gecko STK base board and various sensors such as Si7210, Si7201, Si7202, Si7211, Si7212, and Si7213 demo boards.
Connectivity and prototyping flexibility is ensured with easy interchange of add-on boards and included accessories such as ribbon cable, magnets, coin cell battery, and micro USB cable.
Applicable for security, home automation, consumer electronics, automotive, industrial, metering, and white goods applications.

Product Description

Silicon Labs Si72xx Hall Effect Sensor Development Kit Si72xx is a comprehensive development tool designed for evaluation and prototyping with Si72xx series Hall Effect magnetic sensors. The kit supports low power, high sensitivity sensing with programmable and flexible configurations suitable for open/close and position sensing.

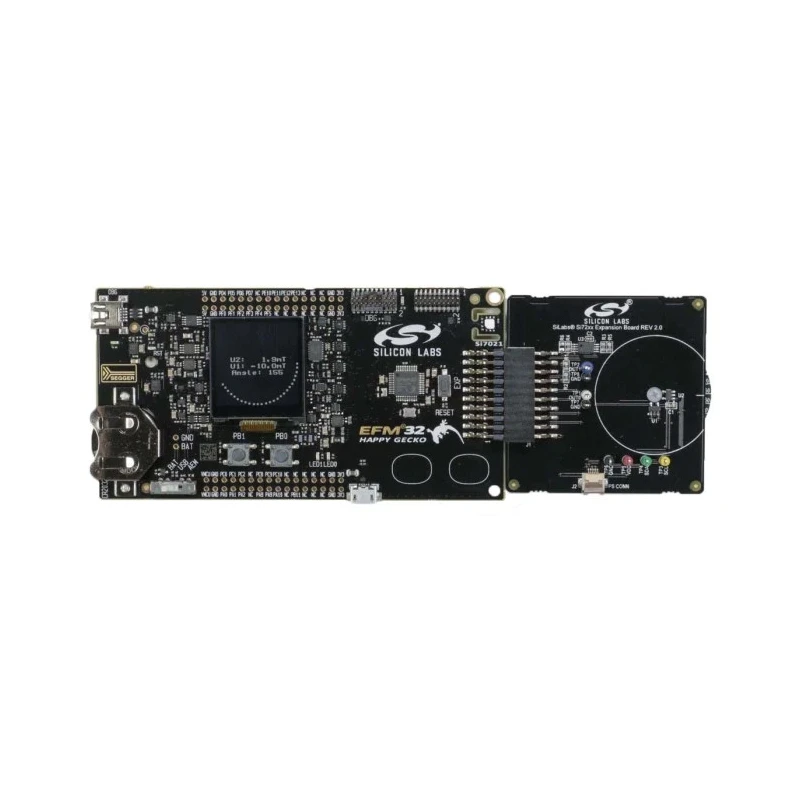

The Si72xx-WD-KIT contains 6 Si72xx Hall Effect sensors individually mounted on compact add-on boards. These boards are compatible with the EFM32 Happy Gecko STK base board preloaded with 8 specialized demonstrations that showcase various sensor functionalities including magnetic field sensing on two scales and internal temperature measurement over I2C.

Additional demos encompass switch and latch operations, analogue outputs monitored by MCU ADC, PWM and SENT signal outputs, and tamper indication features, allowing extensive testing and application development.

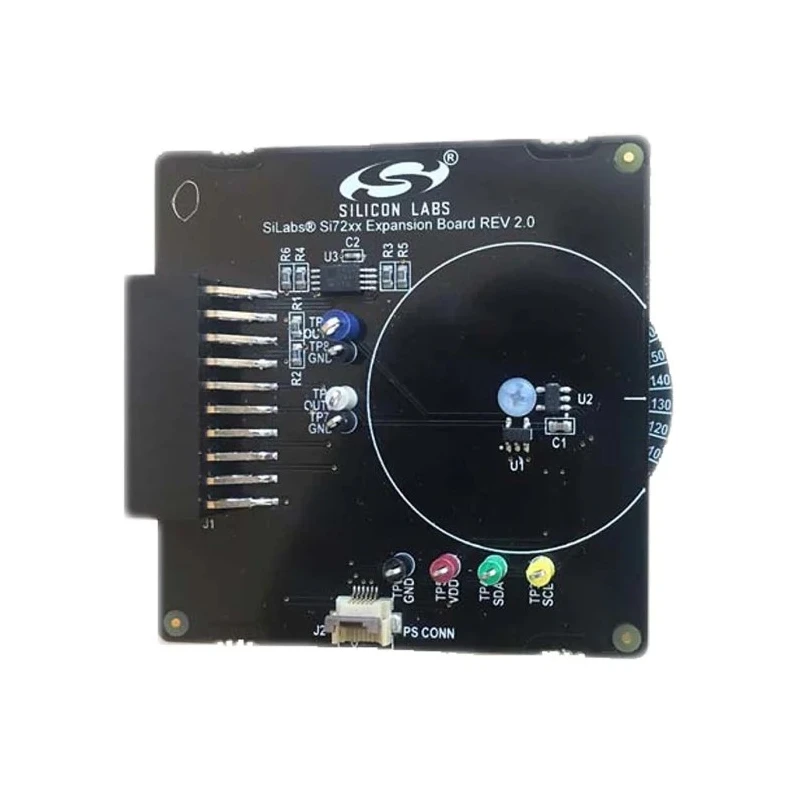

A notable feature is the wheel demo board providing precise angular position sensing, revolution counting, and quadrant detection critical for position feedback systems.

The kit's accessories include a 6 inch ribbon cable, two magnets for sensor demos, a CR2032 coin cell battery, and a micro USB cable to simplify development and sensor integration workflows.

Ideal for industrial, automotive, security system, home automation, consumer electronics, metering, and white goods environments, this kit offers reliable, flexible, and programmable Hall Effect sensor technology development.

The kit includes EFM32 Happy Gecko Starter Kit and multiple Si72xx sensor boards for diverse demonstrations. Demonstrations cover wheel angular position, revolution counting, magnetic field strength, internal temperature, switch/latch, analogue, PWM, and SENT outputs.

Add-on boards are individually mounted and easily interchangeable for fast prototyping and evaluation. Useful for applications requiring accurate position sensing, tamper detection, and flexible sensor interfacing via I2C.

Designed for developers working in security, home automation, automotive, and industrial sensor applications. Explore Silicon Labs Sensor Development Tools at EnvMart for professional-grade evaluation and design support.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The kit includes six individually mounted Si72xx Hall Effect sensors, specifically the Si7210, Si7201, Si7202, Si7211, Si7212, and Si7213 demo boards.

The kit comes with eight preloaded demonstrations that showcase functionalities such as magnetic field sensing, internal temperature measurement, switch and latch operations, analogue outputs, PWM and SENT signal outputs, and tamper indication.

The wheel demo board is designed for precise angular position sensing, revolution counting, and quadrant detection, which are critical for position feedback systems.

The kit features easy interchange of add-on boards and includes accessories such as a ribbon cable, magnets, a coin cell battery, and a micro USB cable for flexible prototyping and sensor integration.

The country of origin for this development kit is the United States.

The kit complies with RoHS standards, ensuring it meets specific environmental and safety regulations.

The EFM32 Happy Gecko STK base board is included in the kit to support the Si72xx sensors and facilitate the preloaded demonstrations and sensor functionalities.

The Si72xx Hall Effect Sensor Development Kit is designed for low power, high sensitivity sensing with programmable and flexible configurations for various applications.

This kit is applicable for various fields including security, home automation, consumer electronics, automotive, industrial, metering, and white goods applications.

The add-on boards are compact and postage stamp-sized, designed for easy mounting and interchangeability during prototyping.

The Si72xx sensors can provide various outputs including analogue signals, PWM, and SENT signals, allowing for diverse monitoring capabilities.

The kit supports programmable configurations, allowing users to tailor the sensor settings for specific applications such as open/close and position sensing.
