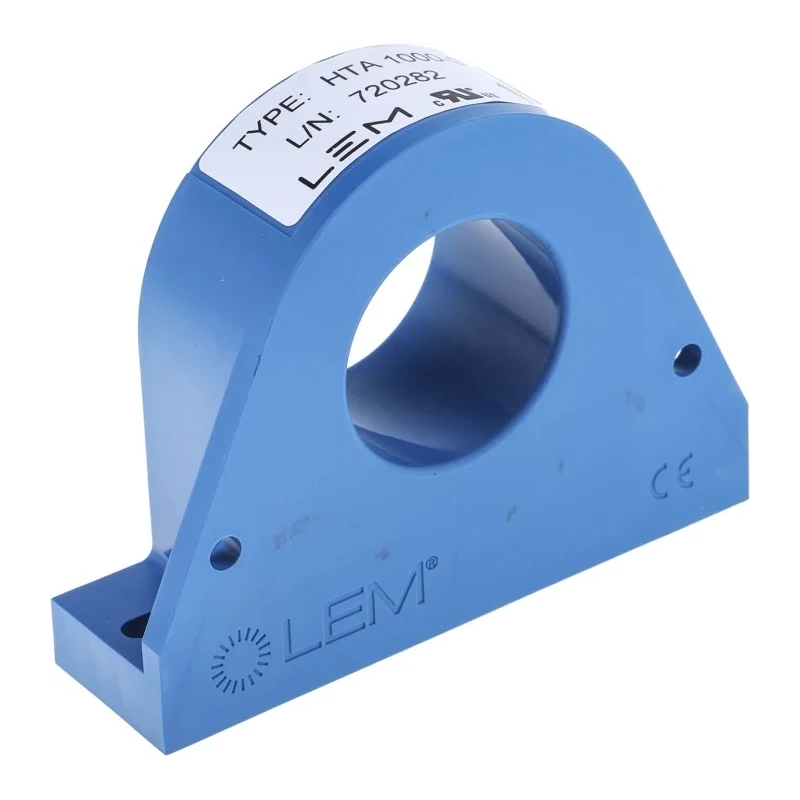

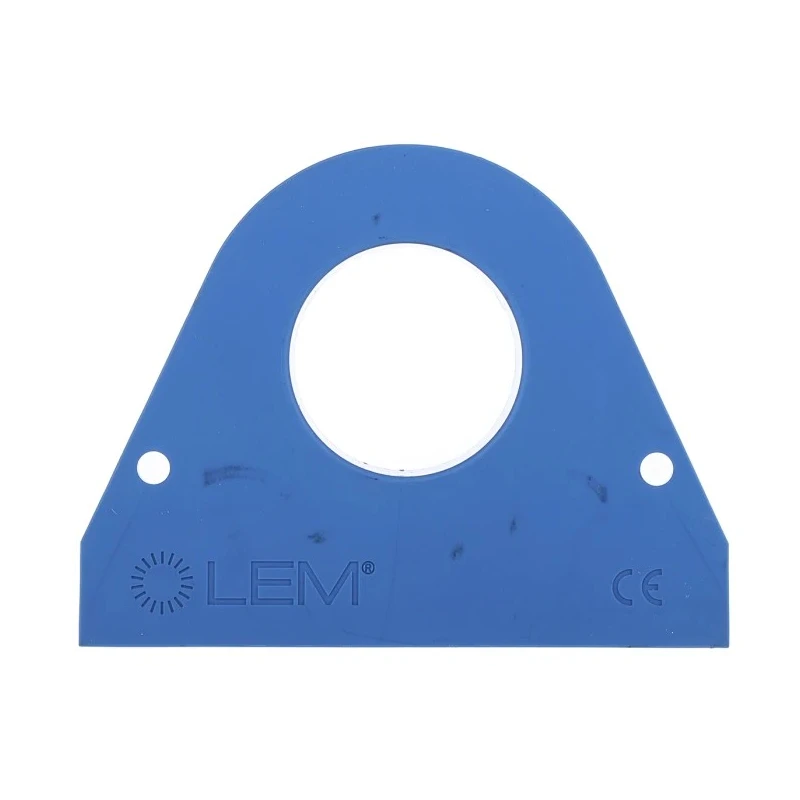

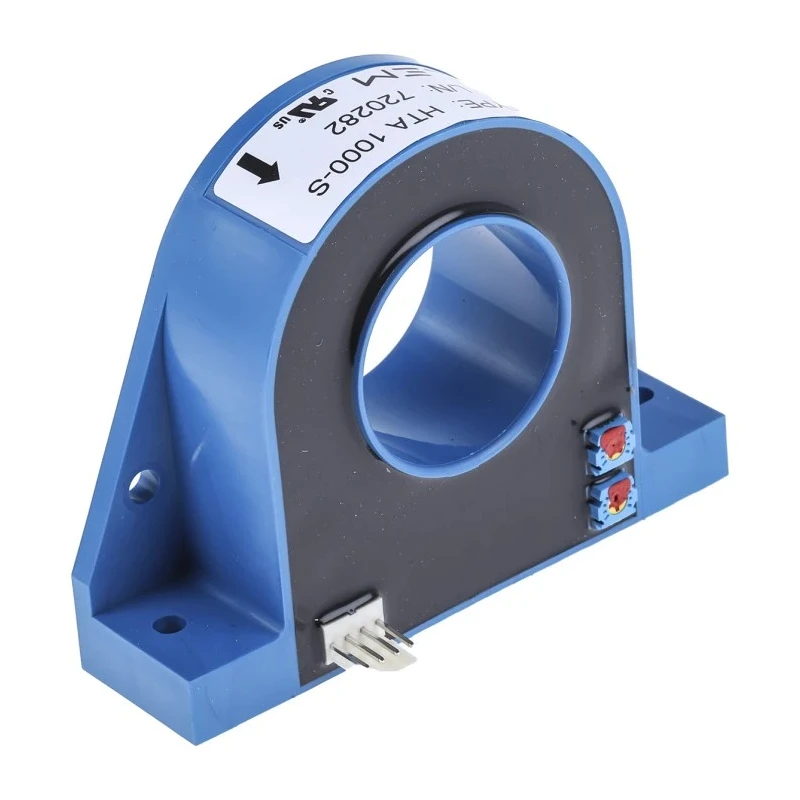

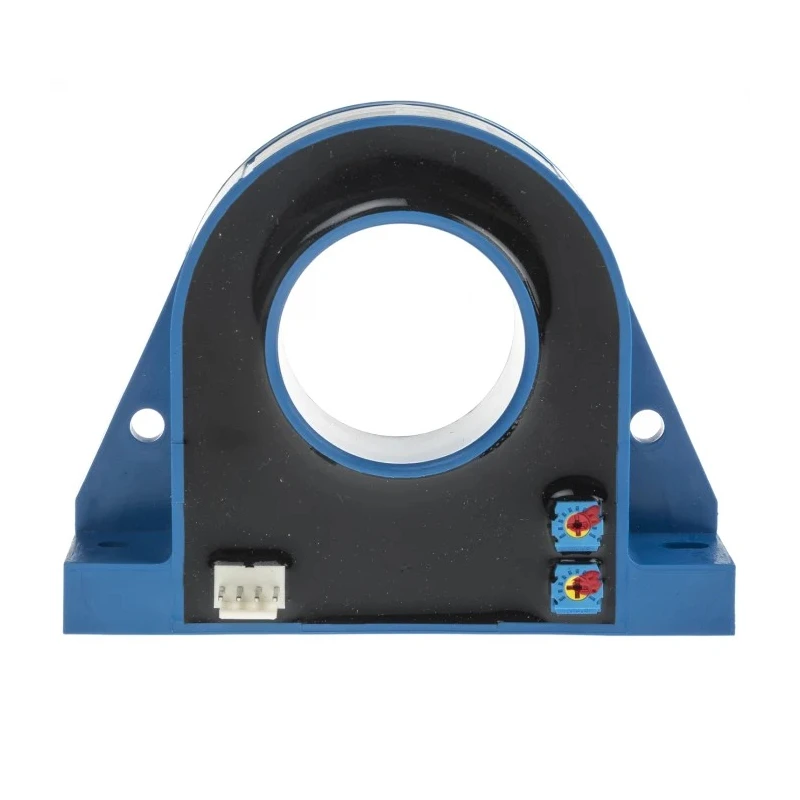

LEM HTA 100 .. 1000-S Series Current Transformer 1000 A 15V 32mm Bore HTA 1000-S

LEM HTA 1000-S Current Transformer is designed for precise electronic current measurement in industrial and process control environments. It supports DC, AC, and pulse current sensing using the reliable Hall effect measurement principle, ensuring accurate and stable readings.

This current transformer features galvanic isolation between the primary and secondary circuits, enhancing safety and signal integrity. It is suitable for both vertical and horizontal panel mounting, allowing easy installation in control panels and electronic systems.

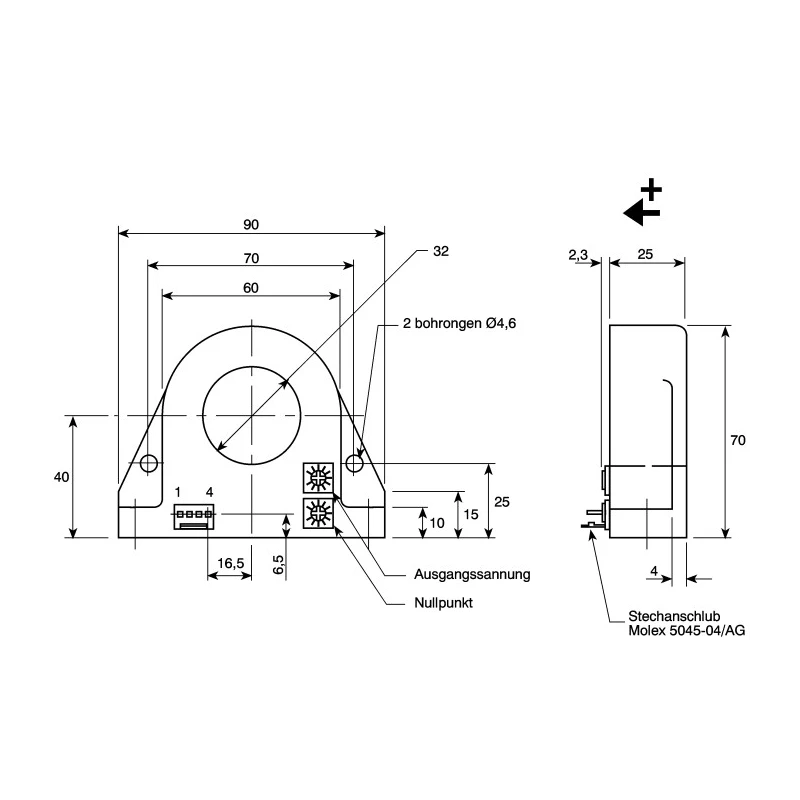

The device operates efficiently within a temperature range from -25°C to 85°C, making it suitable for diverse industrial conditions. Its compact design includes a 32 mm bore diameter and overall dimensions of 90 mm width and 27.5 mm depth to fit into limited spaces.

The maximum operating frequency of 50 kHz enables it to handle rapid current variations in high-performance electronic systems. It incorporates Molex terminals, providing secure and reliable electrical connections.

Certified to comply with EN 50178 (1994), EN 50081-1 (1992), EN 50082-2 (1992), and IEC 61010-1 standards, the HTA 1000-S meets stringent industrial requirements for safety and electromagnetic compatibility.

Hall effect measurement principle for accurate electronic current sensing. Galvanic isolation ensures safe and noise-free signal transmission. Panel mount type suits industrial control panel integration. Wide operating temperature and frequency range supports versatile applications.

Compact size with 32 mm bore diameter for easy installation. Molex terminal type guarantees secure electrical connections. Meets international safety and EMC standards for reliable performance.

This Current Transformer is ideal for industrial automation, process control, power monitoring, and other electrical measurement systems requiring precise current detection and isolation.

Explore the LEM HTA series at EnvMart for advanced current sensing solutions in electronics and electrical industries.
