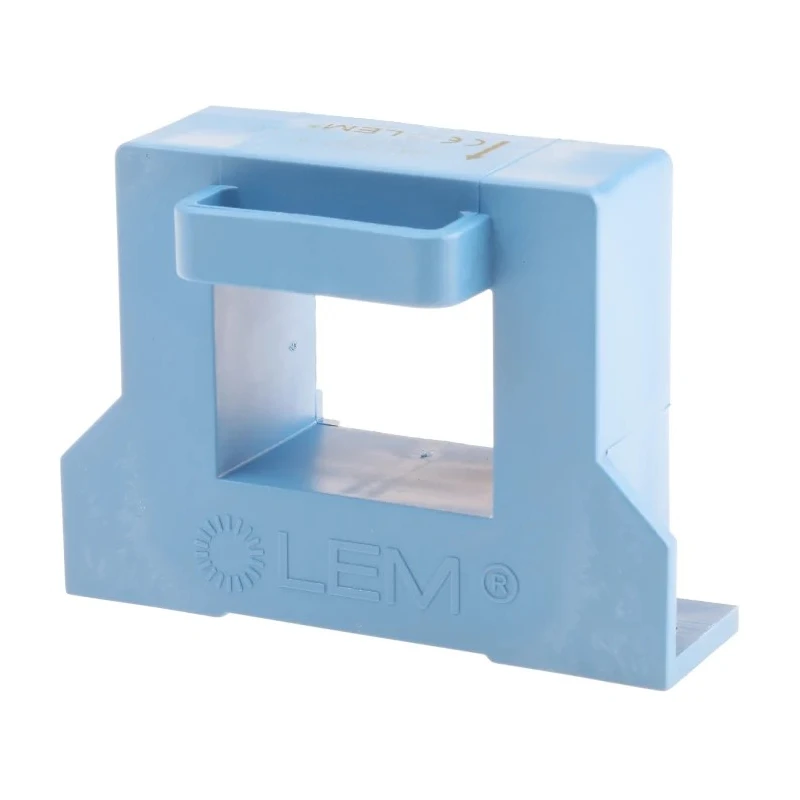

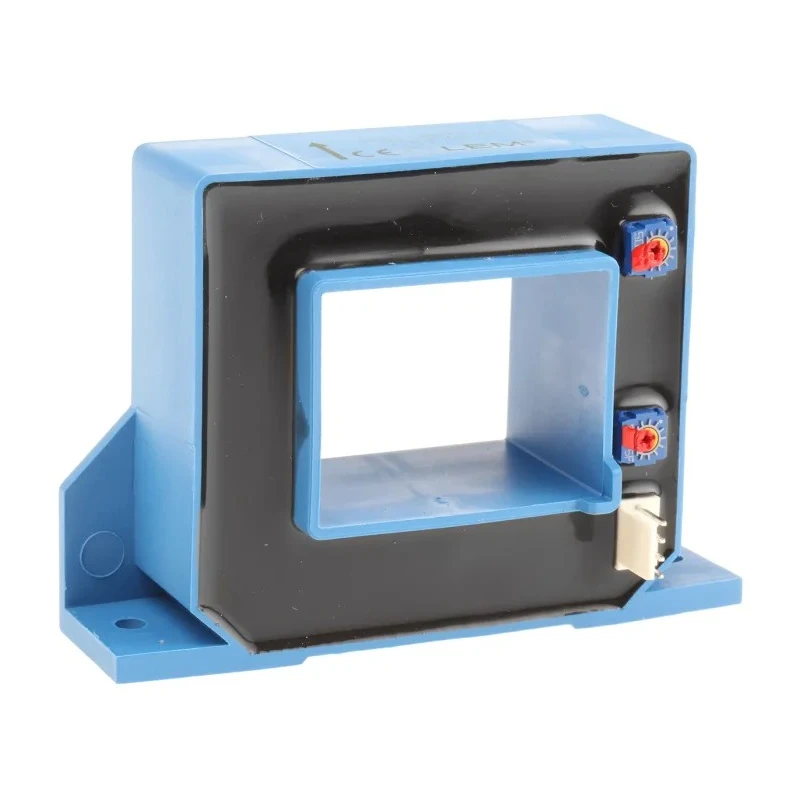

LEM Current Transformer 1000A 15V, 15mm Bore, Hall Effect, Open Loop, HAT 1000-S
Specifications
| Country of Origin | China |
|---|---|
| Brand | LEM |
| Model | HAT 1000-S |
| Depth | 37mm |
| Gross Weight | 30g |
| Width | 90mm |
| Mount Type | Screw |
| Series | HAT 200 ... 1500-S |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Bore Diameter | 15mm |
| Terminal type | Molex |
| Supply Voltage | 15V |
| Standards/Approvals | EN 50178 |
| Primary Current | 1000A |
| Maximum Operating Frequency | 25kHz |
Key Features
- Features a 15mm bore diameter suitable for large conductors.
- Operates with a 15V supply voltage for industrial integration.
- Utilizes Hall effect open loop technology for non-intrusive, isolated measurements.
- Wide operating temperature range from -40°C to 105°C for demanding environments.
- Screw mount design with Molex terminal interface ensures easy and secure installation.
- Compact dimensions (90mm width, 37mm depth) ideal for panel and enclosure mounting.
- Supports frequencies up to 25kHz, suitable for both DC and high-frequency AC currents.
- Compliant with EN 50178 safety standard for control instrumentation.
Product Description
The LEM HAT 1000-S Current Transformer is a high-performance measurement device engineered for precise detection of AC and DC currents up to 1000A. This model features a 15mm bore diameter, allowing it to accommodate substantial conductor sizes commonly found in industrial and automation systems.
Designed with open-loop Hall effect technology, it offers galvanic isolation between the primary and secondary circuits, ensuring operator safety and measurement accuracy without direct electrical contact. The transformer's mounting system includes robust screw mounts and a Molex terminal interface, facilitating simple and secure installation in process control panels or automation enclosures.
Operating from a 15V supply and supporting frequencies up to 25kHz, the HAT 1000-S is versatile across a wide range of current measurement needs, from steady-state DC to high-frequency AC signals. Its housing is constructed from insulating, self-extinguishing material rated UL94-V0, enhancing safety in industrial environments.
With a wide working temperature range between -40°C and 105°C, the device is built to function reliably in harsh conditions. Its compact size (90mm width, 37mm depth) allows for efficient integration where space is limited, and its lightweight design (30g) eases handling and mounting during installation.
Typical applications include process monitoring, energy management systems, motor drive feedback, and protection within HVAC, automation, and power distribution systems, where accurate, real-time current sensing is essential to operational efficiency and safety.
The LEM HAT 1000-S Current Transformer meets the requirements of EN 50178, making it a dependable choice for industrial, laboratory, and commercial environments where reliable current measurement and electrical isolation are critical. Explore related Current Transformers and signal conditioning products in the Electronics & Electricals category for tailored solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure currents up to 1000A.
It operates with a supply voltage of 15V.
The bore diameter is 15mm, suitable for large conductors.
The operating temperature range is from -40°C to 105°C.
It features a screw mount design for secure installation.
It supports frequencies up to 25kHz, suitable for both DC and high-frequency AC currents.
This model uses a Molex terminal interface for connections.
It complies with the EN 50178 safety standard for control instrumentation.
The dimensions are 90mm in width and 37mm in depth.
This current transformer weighs 30g.
It is suitable for applications including process monitoring, energy management, and motor drive feedback.
It utilizes Hall effect open loop technology for non-intrusive, isolated measurements.
