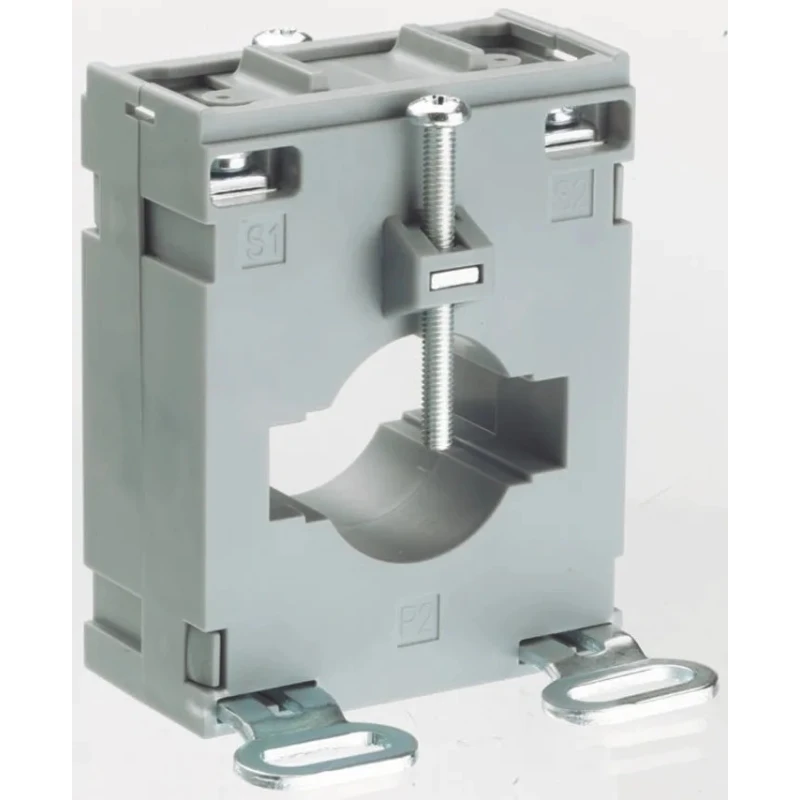

HOBUT CT164 Series Current Transformer 300A 28mm Bore DIN Rail Mount

The HOBUT CT164M300/5-2.5/1-001 Current Transformer is a robust and precision-engineered electrical measuring device designed to support reliable power monitoring in industrial, process control, and commercial installations. With a rated primary current of 300A and a standard secondary output of 5A, this transformer efficiently scales high current flows for safe measurement and metering.

This unit is part of the CT164 Series, featuring a compact moulded case construction with a 28mm bore diameter for easy accommodation of heavy-duty conductors. The transformer is supplied with built-in terminal covers and M6 screw terminals, facilitating secure and professional connections for primary current input.

Mounting is simplified by the included DIN rail clip and mounting feet, allowing rapid integration into control panels or switchboards. Its narrow 60mm width and overall dimensions of 78mm length and 45mm depth make it ideal for space-constrained electrical cabinets.

The CT164M300/5-2.5/1-001 complies with major industry standards, including IEC 60044-1, IEC 61892-2, IEC 185, BS EN 61869-2, BS EN 60044-1, and BS 7626. Rated for continuous current up to 1.2 times its nominal value, the transformer delivers reliable performance even in demanding environments, supported by a maximum operating temperature of 85°C.

Applications for this transformer include energy monitoring, process control, protective relaying, and instrumentation across manufacturing facilities, utilities, and large-scale electrical installations. The device transforms varying primary currents into standard secondary values, enabling safe connections to meters and protective devices.

The practical design is complemented by easy installation features - built-in terminal covers for safety, mounting feet for secure placement, and a DIN rail clip for integrated electrical architecture.

This HOBUT CT164 current transformer addresses the needs of facility managers, engineers, and panel builders requiring high-performance current measurement with proven quality and compliance.

Suitable for industrial and commercial electrical monitoring applications. Rated primary current of 300A with secondary current output of 5A. Features a compact moulded case and DIN rail mounting for easy installation. Bore diameter of 28mm is ideal for accommodating conductor sizes in heavy-duty systems.

Standard-compliant with IEC 60044-1, IEC 61892-2, IEC 185, BS EN 61869-2, BS EN 60044-1, and BS 7626. Operating temperature range up to 85°C ensures reliable performance in demanding environments. Comes with built-in terminal covers and M6 screw terminals for secure primary current connections.

Compact dimensions: 78mm length, 60mm width, 45mm depth. For more Current Transformers and related power monitoring solutions, explore the full HOBUT range on EnvMart.
