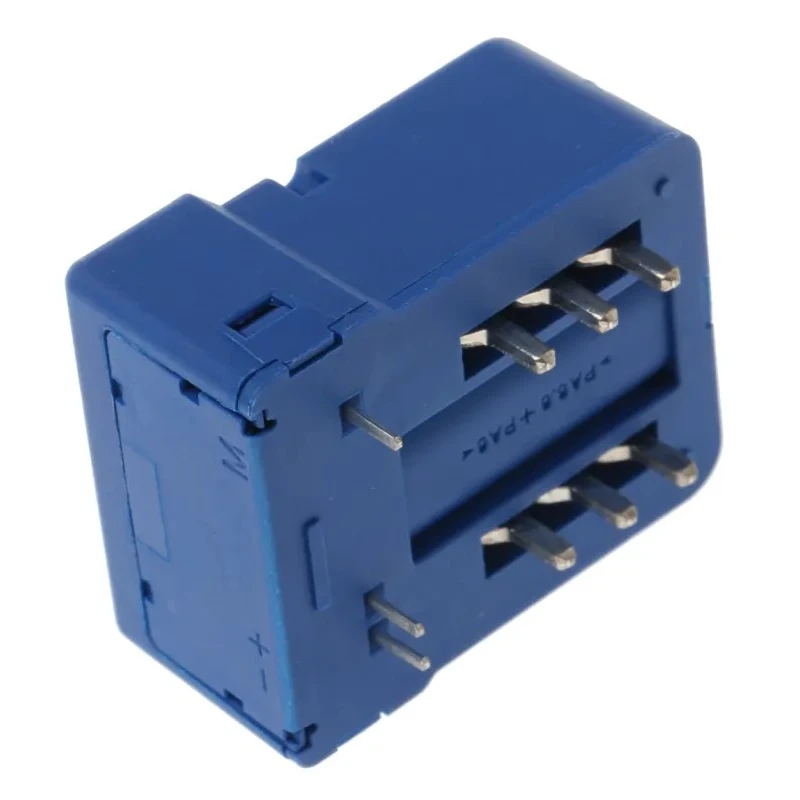

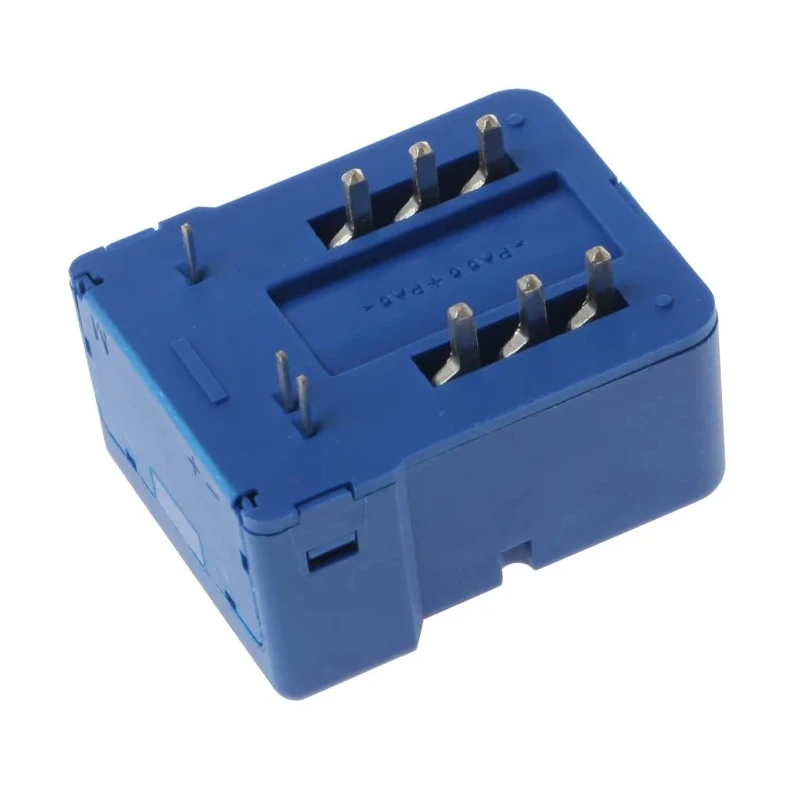

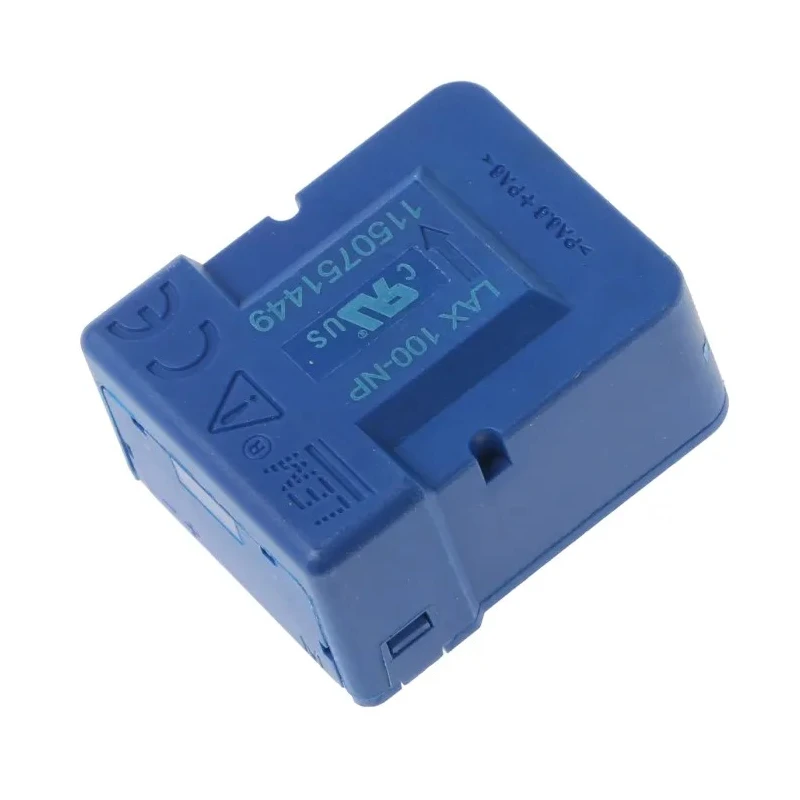

LEM LAX Series Current Transformer, 160A, 11.4V/15.75V, PCB Mount, Hall Effect Sensor, LAX 100-NP
Specifications
| Country of Origin | Bulgaria |
|---|---|
| Brand | LEM |
| Model | LAX 100-NP |

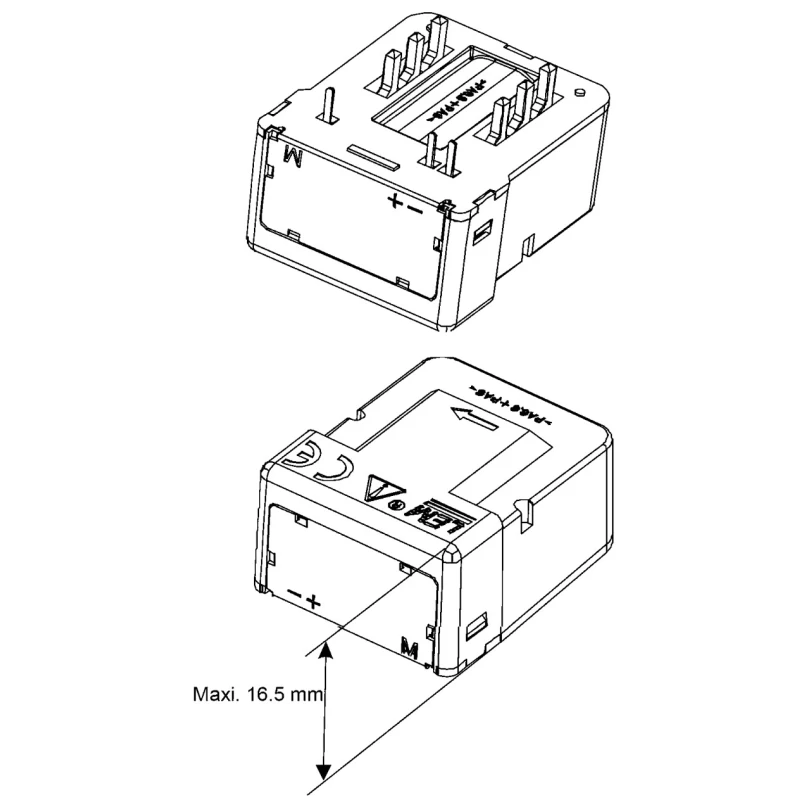

| Depth | 16.5mm |
| Gross Weight | 2g |
| Width | 25.5mm |
| Mount Type | PCB |
| Series | LAX |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Secondary current | 25, 50A |
| Supply Voltage | 11.4, 15.75V |
| Standards/Approvals | IEC 61010-1-safety, EN 50178, UL508 - UR marking |
| Primary Current | 160A |
| Minimum Operating Frequency | 0.1Hz |
| Maximum Operating Frequency | 100kHz |
| Secondary DC Resistance | 60Ω |
| LEM LAH Series Current Transformer, 100A Input, 100 | 1, 50 mArms Output, 12 → 15 VBrand: LEM |
Key Features
- Hall effect sensor designed for accurate current measurements up to 160A.
- Wide supply voltage range of 11.4V to 15.75V for versatile circuit integration.
- PCB mount design ensures easy installation with compact dimensions.
- Suitable for industrial, UPS, SMPS, and variable speed control applications.
- Operates efficiently across a broad temperature range from -40°C to 85°C.
- High frequency response up to 100kHz for dynamic monitoring.
- Secondary current output options of 25A and 50A with 60Ω DC resistance.
- Compliant with IEC 61010-1, EN 50178, and UL508 safety standards.
Product Description
The LEM LAX 100-NP is a precision PCB-mount current transformer utilizing Hall effect technology for accurate current measurement in demanding industrial environments. With a primary current rating of 160A and a supply voltage compatibility of 11.4V to 15.75V, this sensor is engineered to fit directly onto printed circuit boards for seamless integration.
Its compact size, measuring 16.5mm in depth and 25.5mm in width, makes it ideal for applications with space constraints where reliable performance is essential. The device offers secondary current outputs of both 25A and 50A with a secondary DC resistance of 60Ω, supporting a broad range of load monitoring scenarios.
The LAX 100-NP is specifically designed for use in variable speed drives, uninterruptible power supplies (UPS), switch mode power supplies (SMPS), and industrial control systems requiring robust and accurate current sensing. The Hall effect design ensures minimal power losses and high-frequency performance, with a maximum operating frequency up to 100kHz and a minimum of 0.1Hz.
This current transformer operates effectively within a wide temperature range from -40°C to 85°C, making it suitable for harsh environments. It is compliant with international safety standards, including IEC 61010-1, EN 50178, and carries UL508 UR marking, confirming its reliability and safety for professional applications.
Mounting is achieved via PCB for secure and stable positioning. The sensor's origin is Bulgaria, as specified on the product evidence. Hall effect sensor with optimal sensitivity for variable loads and switching applications.
Intended for advanced monitoring and feedback in industrial automation and power management systems. Used in applications like UPS, SMPS, motor drives, and continuous power supplies. Compact dimensions and lightweight build support modern PCB designs with minimal footprint.
Complies with critical international safety and performance standards for industrial usage. Explore more LEM Current Transformers and industrial sensors in the EnvMart Electronics & Electricals category for advanced PCB integration solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this model is 160A.
It supports a supply voltage range of 11.4V to 15.75V.
The LAX 100-NP offers secondary current outputs of 25A and 50A.
This current transformer operates effectively within a temperature range of -40°C to 85°C.
The maximum operating frequency is up to 100kHz.
It features a PCB mount design for easy installation.
The secondary DC resistance is 60Ω.
It is compliant with IEC 61010-1, EN 50178, and UL508 safety standards.
The dimensions are 16.5mm in depth and 25.5mm in width.
It is suitable for industrial control systems, UPS, SMPS, and variable speed drives.
The country of origin for this model is Bulgaria.
The minimum operating frequency is 0.1Hz.
