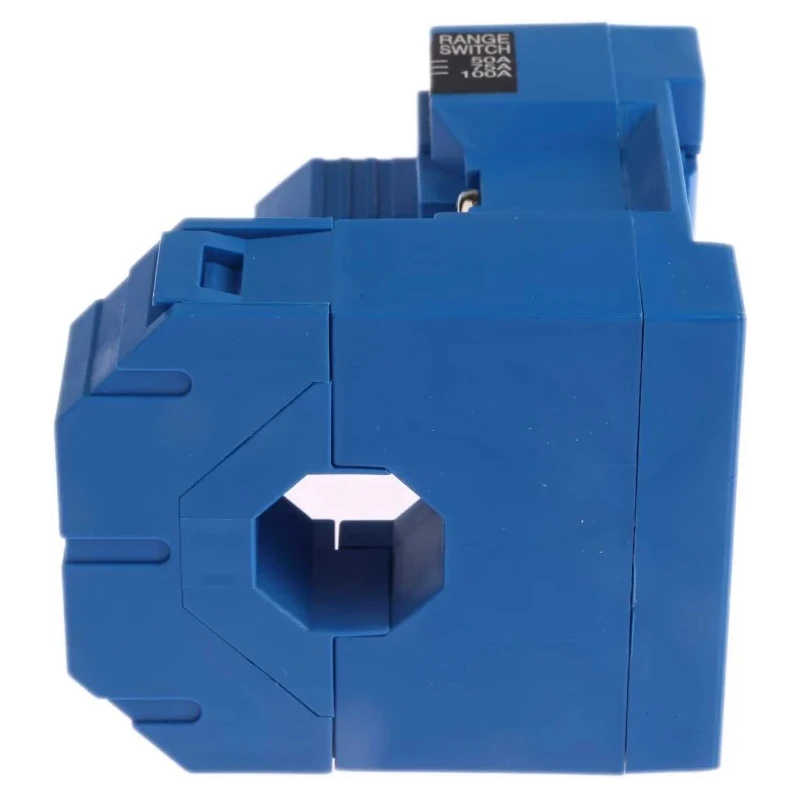

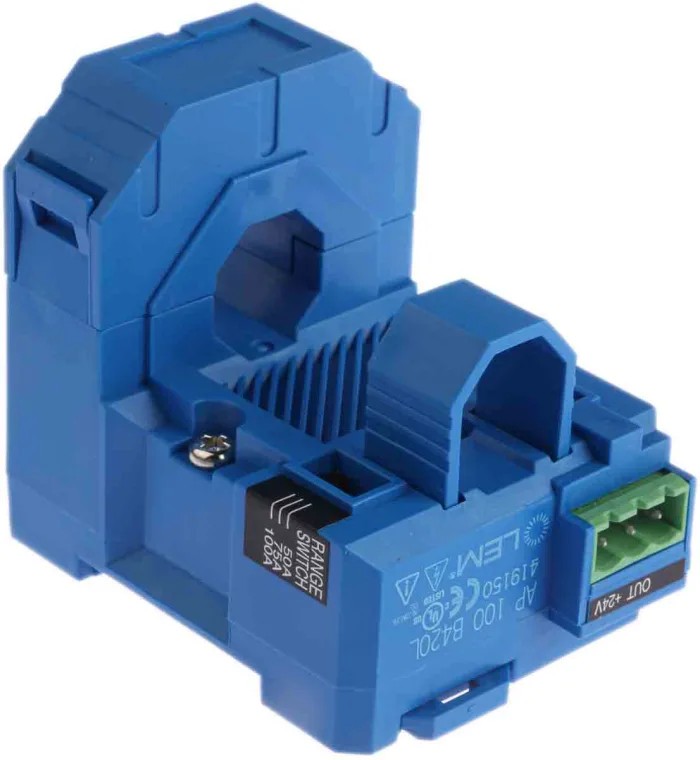

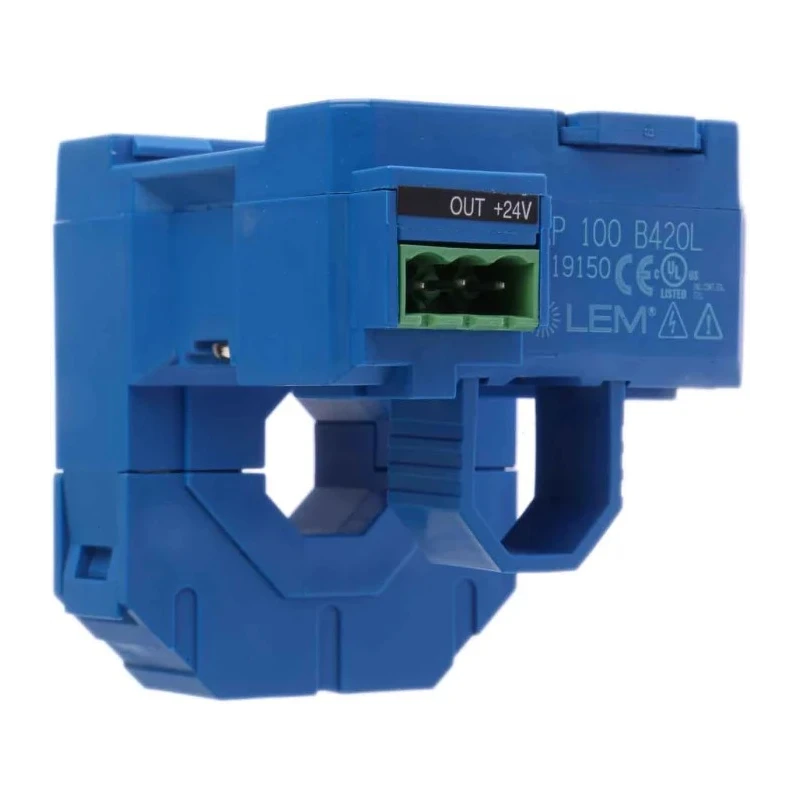

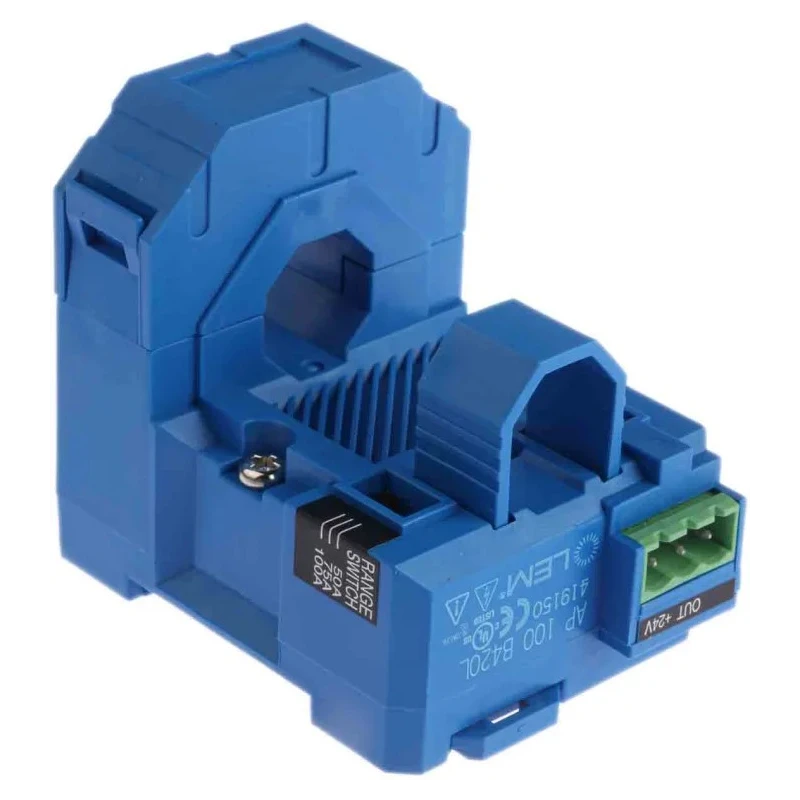

LEM AP-B420L Series Current Transformer 100 A 12V dc, 24 V dc 18mm Bore AP 100 B420L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | LEM |
| Model | AP 100 B420L |
| Gross Weight | 90g |
| Width | 69mm |
| Mount Type | Panel, DIN Rail |
| Series | AP-B420L |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Bore Diameter | 18mm |
| Secondary current | 20, 4mA |
| Terminal type | Spring Terminal |
| Supply Voltage | 12, 24V dc |
| Standards/Approvals | UL 94-V0, IEC 61010-1 |
| Primary Current | 100A |
| Minimum Operating Frequency | 30Hz |
| Maximum Operating Frequency | 2000Hz |
| LEM AP-B420L Series Current Transformer 200 A 12V dc, 24 V dc 18mm BoreBrand | LEM |
Key Features
- Utilizes proprietary PriME technology for RMS measurement accuracy.
- Split core design allows easy installation on existing equipment.
- Loop powered with multiple selectable voltage outputs.
- Supports panel and DIN rail mounting configurations.
- Wide operating frequency range from 30Hz to 2000Hz.
- Lightweight at 90 grams with UL 94-V0 and IEC 61010-1 approvals.
- Operating temperature range from -20°C to 60°C.
- 18mm bore diameter ideal for compact installations.
Product Description
LEM AP 100 B420L current transformer is a split core AC current transducer featuring proprietary PriME technology for precise RMS sensing, suited for industrial and automation applications requiring accurate current monitoring.
The model supports multiple output signals including 0-5V, 0-10V, and 4-20mA, which are selectable to fit different control systems. Its split core construction enables easy retrofitting without disconnecting existing wiring, making it ideal in process control environments.
With a primary current rating of 100A and secondary currents of 20mA and 4mA, it covers typical medium-power electrical monitoring needs. The 18mm bore diameter allows integration into compact panel or DIN rail mounting setups, ensuring versatility in constrained spaces.
This current transformer operates within a broad frequency range from 30Hz to 2000Hz, and a temperature range between -20°C and 60°C, suitable for various industrial environments. It weighs only 90 grams, enabling easy handling and installation. The unit also holds certifications including UL 94-V0 flame retardant rating and IEC 61010-1 safety standard compliance.
This device is loop powered at 12 or 24V DC supply voltage, simplifying wiring and power management. Its spring terminal connections provide secure and reliable electrical contacts.
Utilizes proprietary PriME technology for RMS measurement accuracy. Split core design allows easy installation on existing equipment. Loop powered with multiple selectable voltage outputs. Supports panel and DIN rail mounting configurations.
Wide operating frequency range from 30Hz to 2000Hz. Lightweight at 90 grams with UL 94-V0 and IEC 61010-1 approvals. Operating temperature range from -20°C to 60°C. 18mm bore diameter ideal for compact installations. Supply voltage options are 12V or 24V dc.
This current transformer is widely applicable in electrical automation, industrial process control, and power monitoring systems, providing reliable and accurate current sensing critical for efficient energy management and operational safety.
Explore more products in the Current Transformers category for comprehensive electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this model is 100A.
It supports loop-powered supply voltages of 12V or 24V DC.
The bore diameter of this current transformer is 18mm, making it suitable for compact installations.
It operates within a frequency range from 30Hz to 2000Hz.
This model supports both panel and DIN rail mounting configurations.
The weight of the AP-B420L is 90 grams, allowing for easy handling and installation.
It provides selectable secondary currents of 20mA and 4mA.
This current transformer holds UL 94-V0 and IEC 61010-1 certifications.
The operating temperature range for this model is from -20°C to 60°C.
It features spring terminal connections for secure and reliable electrical contacts.
It utilizes proprietary PriME technology for precise RMS measurement accuracy.
This model is widely applicable in electrical automation, industrial process control, and power monitoring systems.
