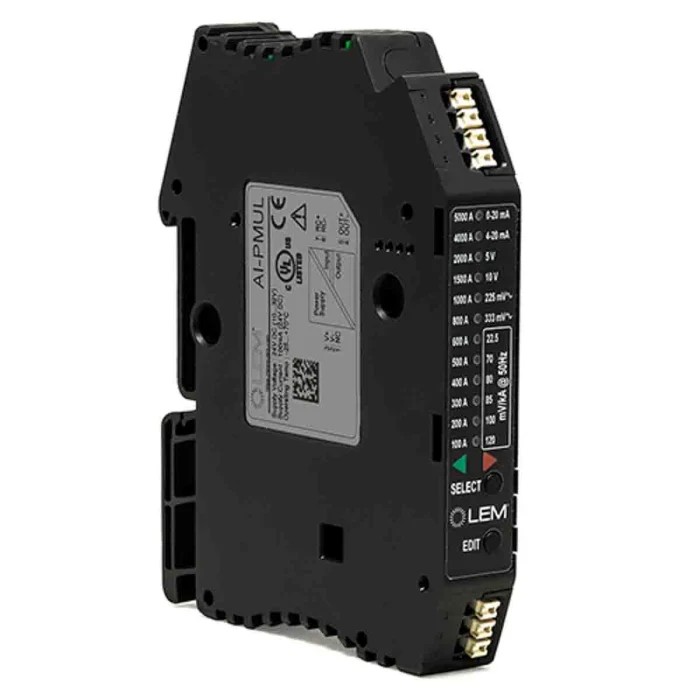

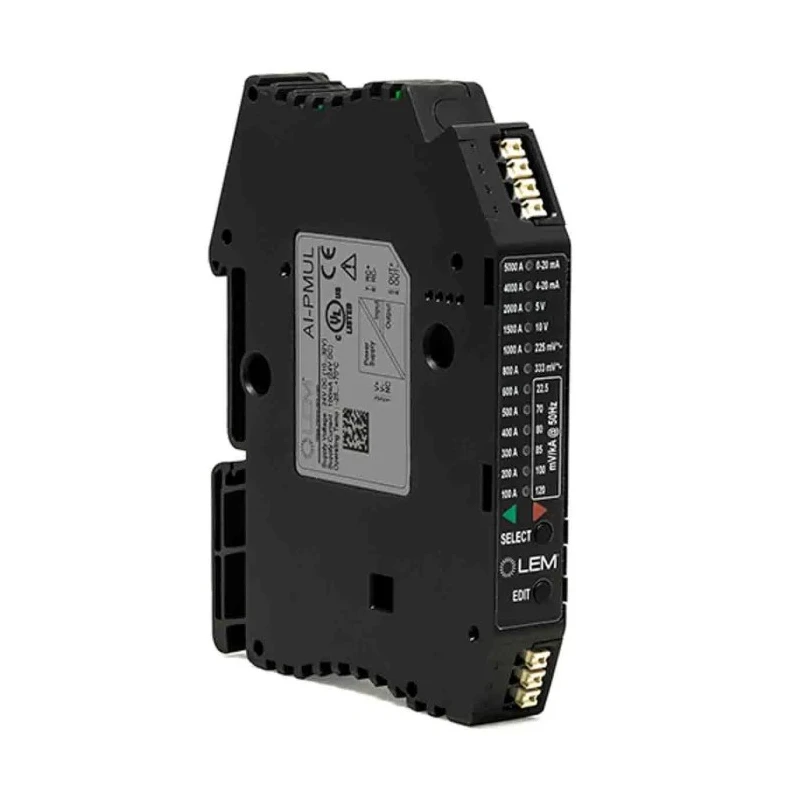

LEM AI-PMUL Series Current Transformer 130 kA 24V DC DIN Rail Mount AI-PMUL

LEM AI-PMUL Series Current Transformer model AI-PMUL is a precision electrical device designed for dynamic range signal conditioning in power substations, industrial automation, and process control environments. Operating at a supply voltage of 24V DC, it is configured for DIN rail mounting which facilitates streamlined installation in compact control panels.

This current transformer delivers high accuracy and versatility with a primary current capacity of 130 kA, supporting power system monitoring, fault detection, and energy management. The device is engineered to perform reliably across a temperature range from -25°C to 70°C and frequencies between 50Hz and 60Hz, accommodating standard power systems.

The AI-PMUL series features push-in terminal type connectors for secure wiring and quick setup. Its compact dimensions (Length: 100 mm, Width: 85.5 mm, Depth: 15 mm) and a lightweight design (58 grams) enable easy integration into existing electrical panels without adding excessive weight or bulk.

Designed in compliance with international standards IEC 61010-1:2010, IEC 61326-1:2012, and IEC 61869-2, this current transformer meets stringent safety and electromagnetic compatibility requirements. The clear dual-color LED status indicator enhances usability by signalling operational status and fault conditions instantly.

Ideal for industrial and commercial electrical systems, this device finds application in electrical automation, power substations, energy measurement, and fault detection scenarios requiring high precision and reliability. Its rugged design ensures dependable operation in demanding environments.

Compact DIN rail mount design suitable for industrial and substation applications. High primary current rating of 130 kA ensures robust performance under heavy load. Operates reliably within a temperature range of -25°C to 70°C.

Push-in terminal type enables secure and easy wiring connections. Equipped to handle frequency range from 50Hz to 60Hz for AC systems. Complies with IEC 61010-1, IEC 61326-1, and IEC 61869-2 standards ensuring safety and quality.

Supply voltage is a stable 24V DC suitable for system integration. Lightweight design at 58 grams facilitates easy installation and maintenance. Clear status indication with bi-color red LED allows quick fault and operational status assessment.
