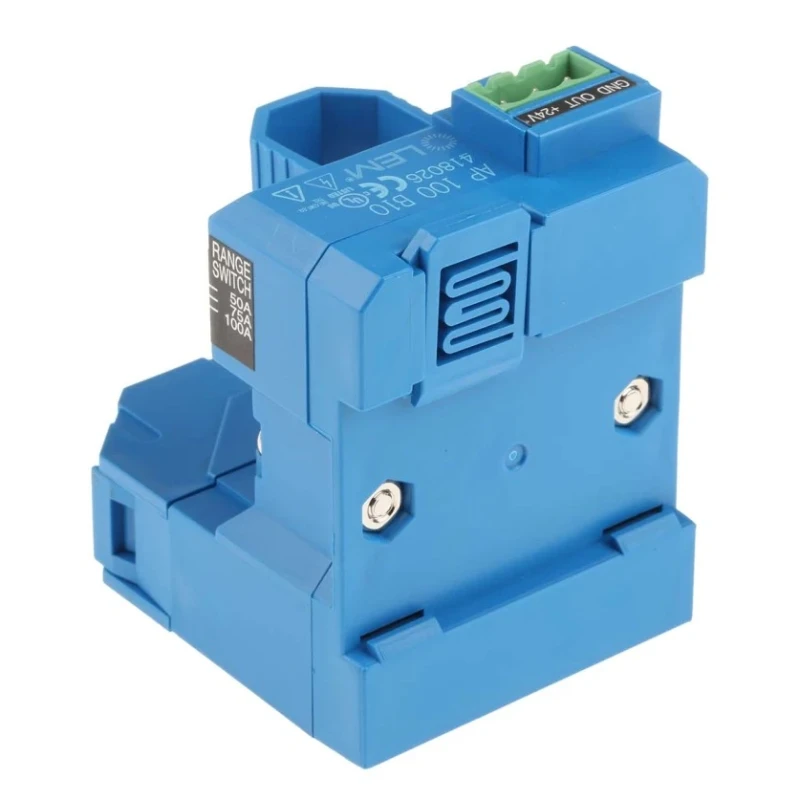

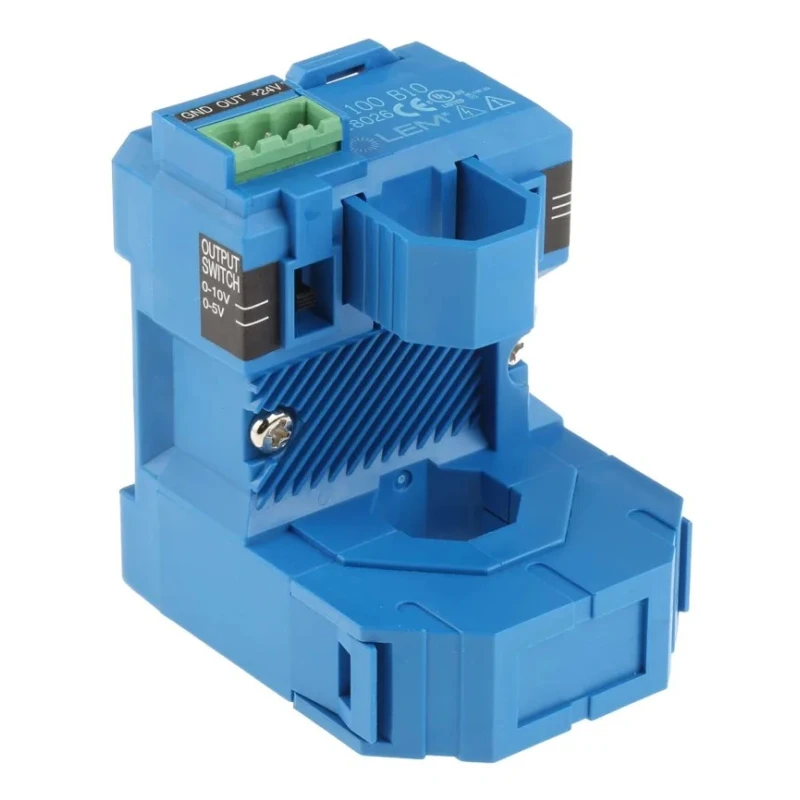

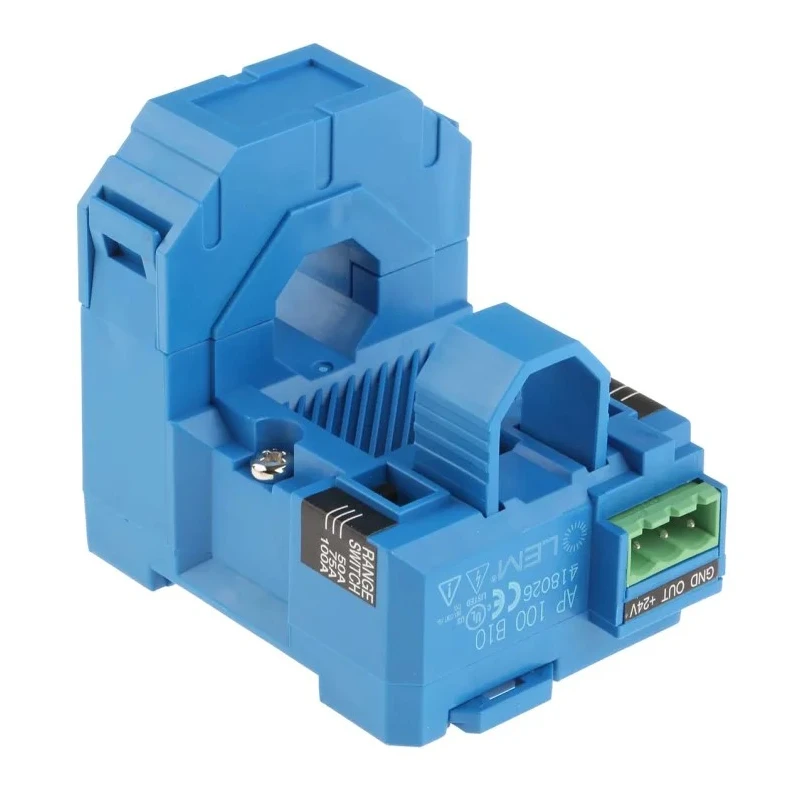

LEM AP-B10 Series Current Transformer 100 A 24V DC 18mm Bore AP 100 B10

The LEM AP-B10 Series Current Transformer model AP 100 B10 is designed for precise AC current measurement in industrial and electrical systems. Featuring a 100 A primary current rating and powered by a 24V DC supply, this split core transformer utilizes LEM's proprietary PriME technology to deliver mean sensing RMS measurement accuracy. The 18mm bore size allows convenient installation in various applications.

This current transformer supports loop powering and provides selectable voltage outputs of 0-5V, 0-10V, and 4-20mA, making it highly versatile for process control and automation systems. Its design supports panel and DIN rail mounting, simplifying integration into existing infrastructure.

Engineered to operate in harsh environments, it endures a temperature range from -20°C to 60°C and supports a frequency range from 30Hz to 2000Hz. Its compact physical dimensions of 69mm length, 33.5mm width, and 25mm depth, combined with a lightweight construction of only 90 grams, enable easy retrofitting without burdening the system.

The AP 100 B10 meets international standards UL 94-V0 and IEC 61010-1, affirming its compliance with safety and quality benchmarks. Manufactured in Japan, it represents high reliability suited for industrial, laboratory, automation, HVAC, and process control applications.

Split core design using proprietary PriME technology for RMS current sensing. Loop powered with selectable voltage output options including 0-5V, 0-10V, and 4-20mA. Suitable for mounting on panel and DIN rail configurations.

Operates across a temperature range from -20°C to 60°C. Compact dimensions: 69mm length, 33.5mm width, and 25mm depth. High-frequency capability up to 2000Hz with minimum frequency of 30Hz. Lightweight design at 90 grams facilitates easy installation and retrofitting.

Meets safety and quality standards UL 94-V0 and IEC 61010-1. Manufactured in Japan ensuring high quality and reliability. Explore our wide range of Current Transformers and automation components at EnvMart to enhance your industrial measurement and control solutions.
