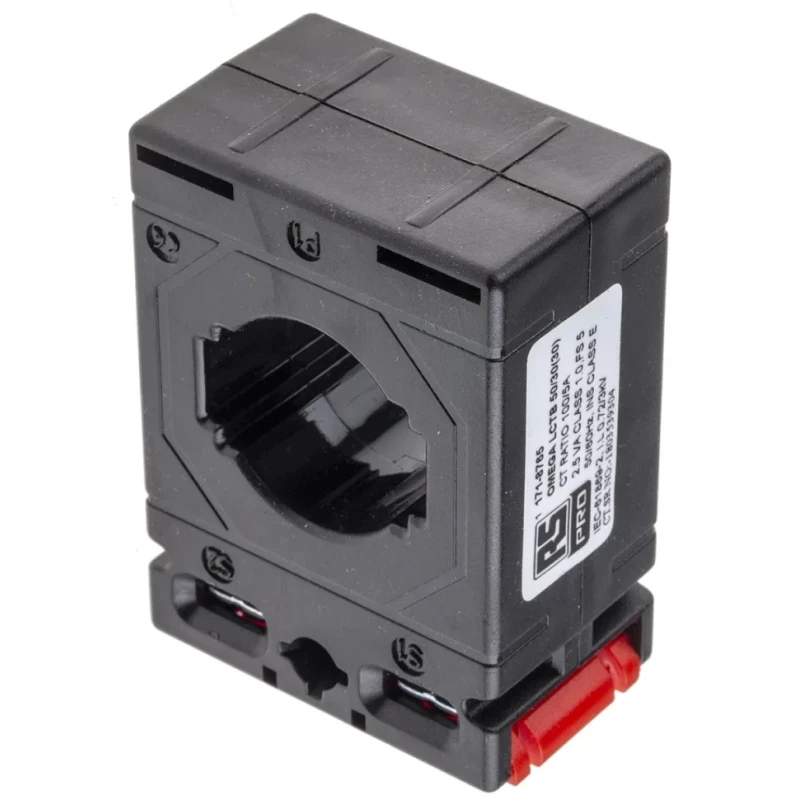

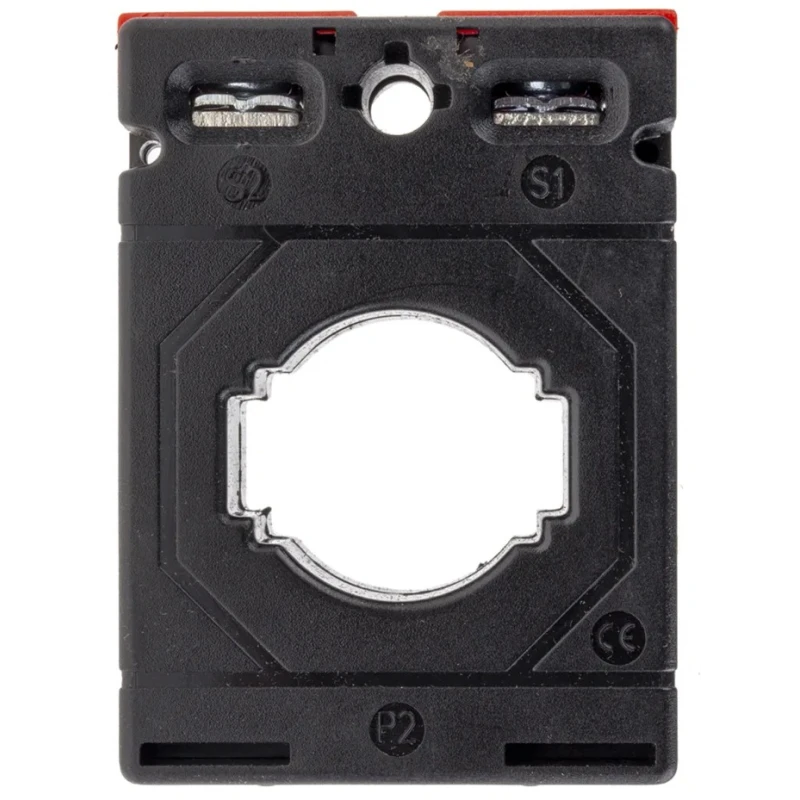

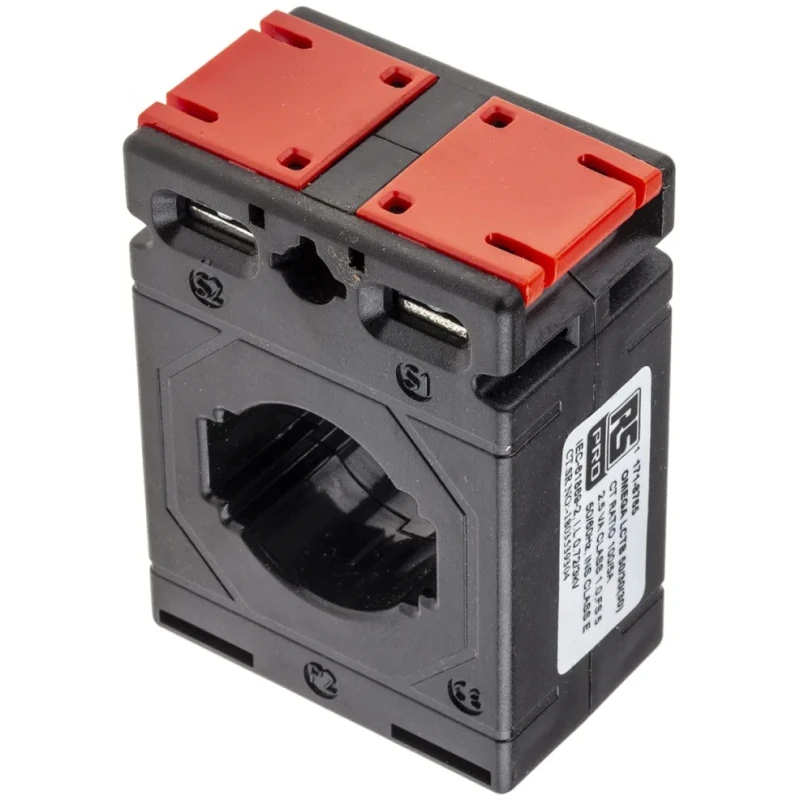

RS PRO Current Transformer 100A 21mm Bore 171-8765, Wire Terminal, 5A Secondary, Class 1 Accuracy
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 171-8765 |
| Depth | 31mm |
| Width | 50mm |
| Mount Type | Wall, Busbar, Cable |
| Fire Rating | UL94V-0 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -5°C |
| Bore Diameter | 21mm |
| Secondary current | 5A |
| Terminal type | Wire |
| Primary Current | 100A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Current ratio of 100 | 5A |
| RS PRO Square Current Transformer (100 | 5A) |
| A reliable and tough current transformer (CT) with a current ratio of 100 | 5A. Highly accurate with a class 1 rating and designed to be base mounted |
| HOBUT CT143 Series DIN Rail Mounted Current Transformer, 100A Input, 100 | 5, 5 A Output, 24mm BoreBrand: HOBUT |
| Sifam Tinsley OMEGA Series Current Transformer 100 A 2.5 VA 26mm BoreBrand | Sifam Tinsley |
| Siemens SENTRON Series Current Transformer 100 A 100 | 5Brand: Siemens |
| Lovato DM Series Current Transformer 4000 A 23mm BoreBrand | Lovato |
Key Features
- Rugged and reliable current transformer with 100A primary and 5A secondary ratio.
- Square form factor with a 21mm bore diameter suitable for various mounting configurations.
- Wire terminal connection for easy integration into electrical systems.
- Encapsulated polycarbonate construction rated UL94V-0 for fire safety and durability.
- Class 1 accuracy ensures precise measurement in industrial environments.
- Wide operating temperature range of -5°C to +55°C for harsh conditions.
- Mountable on wall, busbar, or cable with sealable terminal covers for security.
- Compliant with IEC 61010-2, IEC 60044-1, IEC 61869-1 standards.
Product Description
The RS PRO 171-8765 Current Transformer is designed for reliable monitoring and measurement of high currents in industrial and automation applications. Featuring a primary current rating of 100A and a 5A secondary output, it delivers accurate performance for metering and protection systems.
This square type current transformer includes a 21mm bore diameter and wire terminal configuration, making it compatible with a variety of mounting setups, including wall, busbar, and cable installations. The encapsulated polycarbonate housing is UL94V-0 rated, ensuring superior fire safety; in the event of ignition, flammable parts will not burn for more than 10 seconds, protecting equipment and premises.
A Class 1 accuracy rating makes the RS PRO transformer suitable for demanding industrial environments, where precision is essential. The transformer is designed with sealable terminal covers and offers an operating temperature range from -5°C to +55°C. It supports altitudes up to 2000m, meaning it can be deployed in challenging site conditions.
The device adheres to international standards, including IEC 61010-2, IEC 60044-1, and IEC 61869-1, and offers an IP20 protection rating. Its compact dimensions, with a depth of 31mm and width of 50mm, allow for easy integration even in tight spaces.
Industrial applications include panel metering, equipment protection, process control, load monitoring, energy management, and power distribution systems. It is commonly used in electrical, industrial automation, utilities, and commercial infrastructure.
RS PRO products represent professional quality and rigorous testing for engineering and industrial needs. Browse the EnvMart Current Transformer category to compare similar current monitoring solutions by RS PRO and other brands for your installation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current rating of this current transformer is 100A.
This model has a secondary output current of 5A.
The bore diameter of this current transformer is 21mm.
The dimensions of this model are 50mm in width and 31mm in depth.
It operates within a temperature range of -5°C to +55°C.
This model uses a wire terminal connection for integration into electrical systems.
It can be mounted on a wall, busbar, or cable, and includes sealable terminal covers for security.
This current transformer has a Class 1 accuracy rating, suitable for industrial environments.
It complies with IEC 61010-2, IEC 60044-1, and IEC 61869-1 standards.
The maximum operating frequency for this transformer is 60Hz.
The encapsulated housing is rated UL94V-0 for fire safety.
It is suitable for applications such as panel metering, equipment protection, and energy management.
