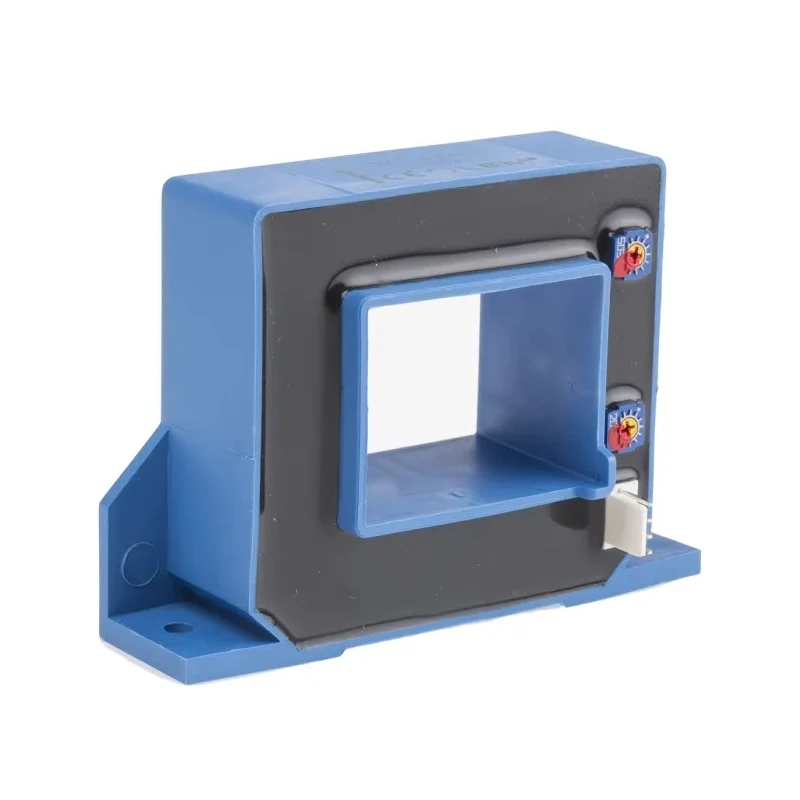

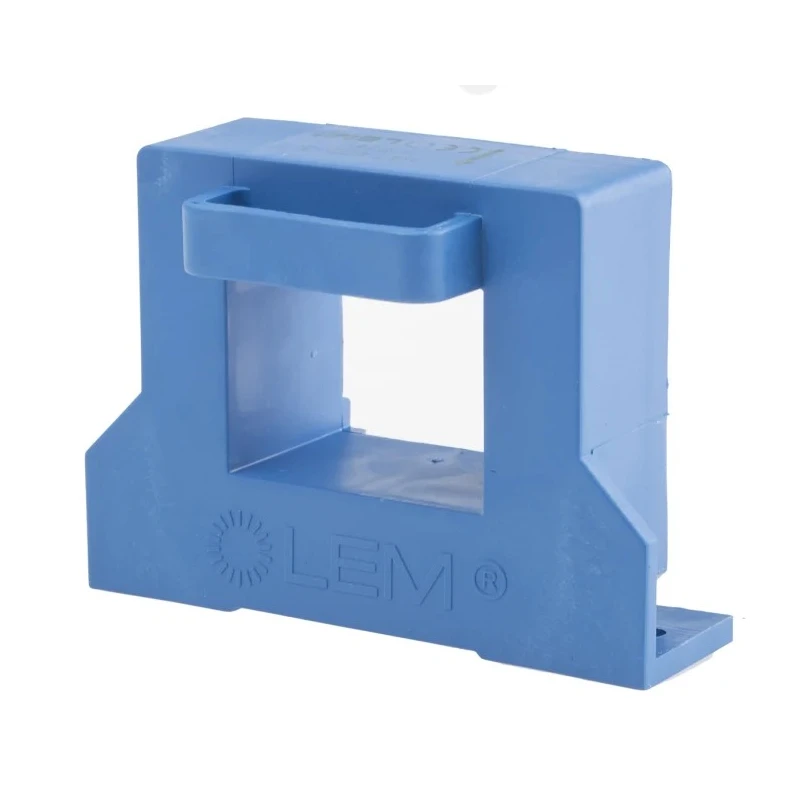

LEM HAT Series Current Transformer 400 A, 15V, 15mm Bore HAT 400-S
Specifications
| Country of Origin | China |
|---|---|
| Brand | LEM |
| Model | HAT 400-S |
| Depth | 37mm |
| Width | 90mm |
| Mount Type | Busbar, Plug-in |
| Series | HAT |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Bore Diameter | 15mm |
| Supply Voltage | 15V |
| Standards/Approvals | JEDEC JESD46-B |
| Profile | Extremely low |
| Primary Current | 400A |
Key Features
- Designed for high-current measurement applications up to 400 A.
- Suitable for busbar and plug-in installations for versatile mounting.
- Operates with a 15V supply voltage for stable performance.
- Features a compact form factor with a 15mm bore diameter and 37mm depth.
- Wide operating temperature range from -40°C to 105°C for reliable use in harsh environments.
- Hall Effect technology enables accurate AC, DC and mixed current measurement.
- Low power consumption and extremely low profile enhance energy efficiency.
- Complies with JEDEC JESD46-B standards for quality assurance.
Product Description
The LEM HAT 400-S is a specialist current transformer engineered for precise measurement of high currents up to 400 A, suitable for both AC and DC applications as well as mixed-current environments. Built around advanced Hall Effect technology and a proprietary ASIC, this model offers reliable performance and low power consumption for incorporation into process control, automation, and power distribution systems.
Operating from a stable 15V supply voltage, the HAT 400-S supports wide-ranging installation flexibility thanks to its busbar and plug-in mounting options. Its robust design, featuring a 15mm bore diameter and 37mm depth, allows easy integration in compact enclosures or tight space requirements, while maintaining a wide -40°C to 105°C operating temperature range to withstand demanding industrial conditions.
Key technical features include ratiometric output (Vcc/2 reference), unipolar supply architecture, and an extremely low-profile build. This transformer is optimized for applications requiring rapid response and significant current ranges, from power distribution panels to advanced process control systems. The HAT series also offers secure fixing via four holes (P version) and mounting via four solder pins (P/SP2 version), facilitating straightforward PCB or panel installation.
Compliance with JEDEC JESD46-B standards ensures high reliability, and its low power draw makes it a preferred choice for energy-efficient systems. Compact yet robust, this product is ideal for industrial automation, manufacturing, laboratory measurement, commercial power management, and process monitoring scenarios where precision current sensing is critical.
Industrial use cases cover electrical panels, automation control gear, process control, energy meters, and power quality monitoring. Its hall sensor-based design assures accuracy and stability for both AC and DC current metering in modern electrical installations.
Explore more advanced Current Transformers and LEM solutions for process control and electrical automation on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HAT 400-S has a maximum primary current rating of 400 A, making it suitable for high-current measurement applications.
This model operates with a supply voltage of 15V, ensuring stable performance during operation.
The HAT 400-S features a bore diameter of 15mm, allowing for versatile mounting options.
It supports busbar and plug-in mounting, providing flexibility for various installation scenarios.
The operating temperature range is from -40°C to 105°C, making it suitable for harsh environments.
This model utilizes Hall Effect technology, enabling accurate measurement of AC, DC, and mixed currents.
The dimensions of this model are 90mm in width and 37mm in depth, allowing for compact installation.
It complies with JEDEC JESD46-B standards, ensuring quality assurance in its design and performance.
This current transformer has an extremely low profile, which enhances its integration into tight spaces.
It is ideal for industrial automation, power distribution, energy meters, and process monitoring where precise current sensing is critical.
The HAT 400-S features secure fixing via four holes for the P version and mounting via four solder pins for the P/SP2 version, facilitating straightforward installation.
The HAT 400-S is designed for low power consumption, enhancing energy efficiency in operational use.
