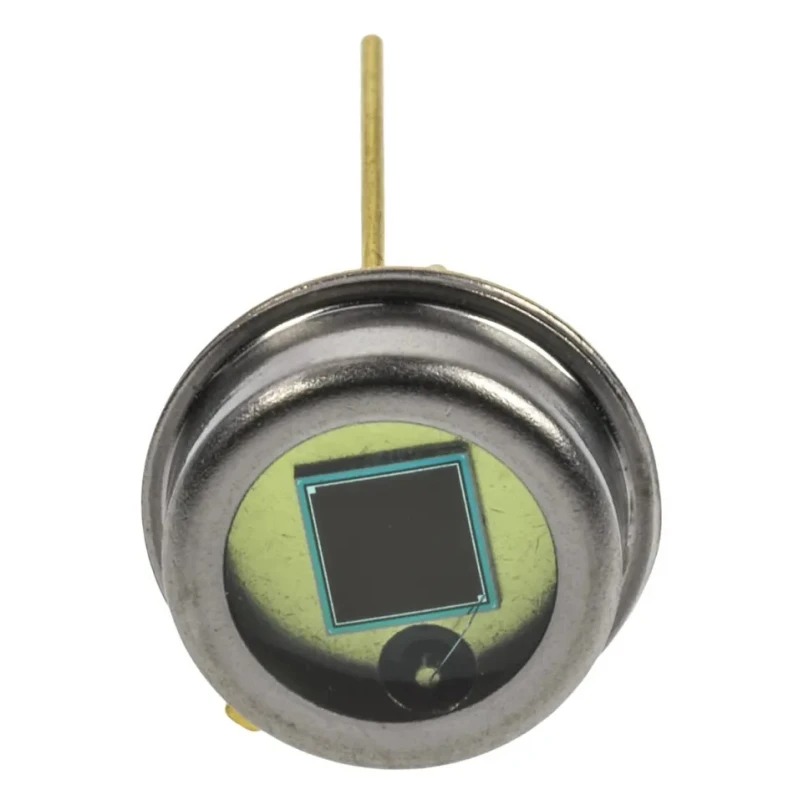

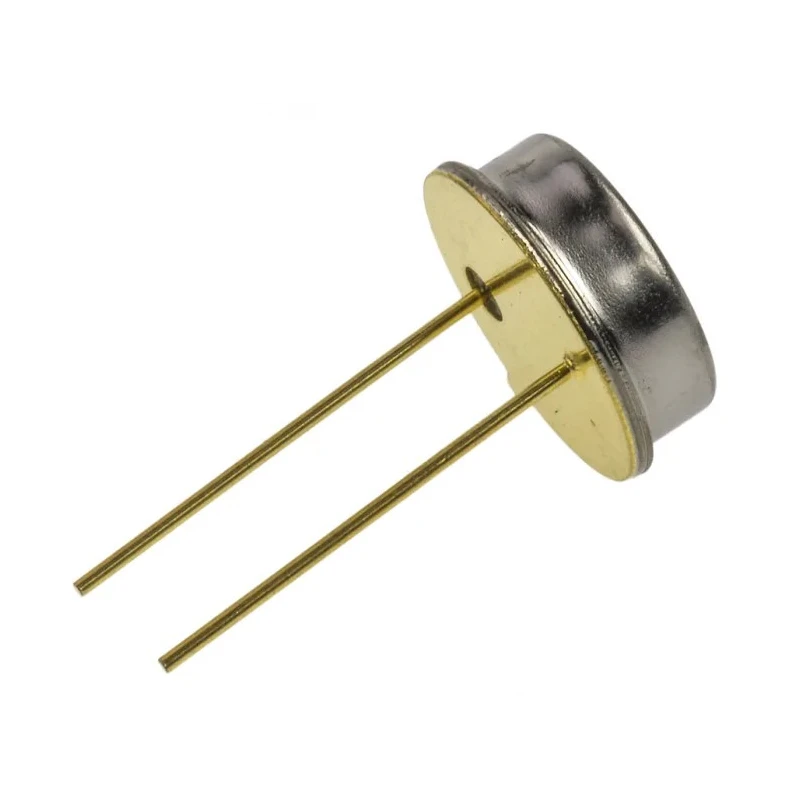

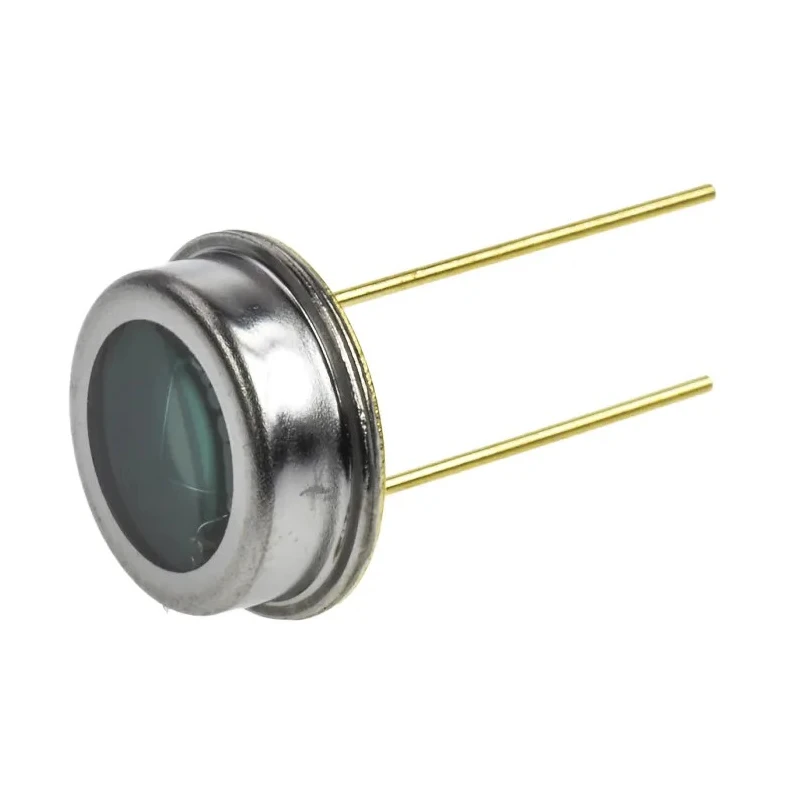

ams OSRAM Ultraviolet Visible Light Infrared Photodiode, Through Hole TO-39 Package BPW 21

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM Ultraviolet Visible Light Infrared Photodiode, Through Hole TO-39 Package BPW 21

Name: ams OSRAM Ultraviolet Visible Light Infrared Photodiode, Through Hole TO-39 Package BPW 21
Brand: ams OSRAM
SKU: 122240
Price: 13.42 USD
Availability: InStock



Category Photodiode Brand ams OSRAM Condition New

Specifications

Country of Origin	China
Brand	ams OSRAM
Height	3.7mm
Length	9.5mm
Model	BPW 21
Packaging	Tape & Reel
Width	9.5mm
Mount Type	Through Hole
Short Circuit Current	25μA
Maximum Operating Temperature	100°C
Package Type	TO-39
Minimum Operating Temperature	-40°C
Polarity	Forward
Dark Current	2nA
Open Circuit Voltage	330mV
Standards/Approvals	RoHS
Number of Pins	2
Typical Fall Time	20ns
Wavelength of Peak Sensitivity	550nm
Spectrums Detected	Ultraviolet, Visible Light, Infrared
Breakdown Voltage	16V
Minimum Wavelength Detected	350nm
Maximum Wavelength Detected	820nm
Angle of Half Sensitivity	60 °
Half angle	55°
Radiant sensitive area	2.73 x 2.73 mm²
Centronic, BPW21 Visible Light Si Photodiode, 55 °, Through Hole TO-5Brand	Centronic

Key Features

The photodiode has a wavelength peak sensitivity at 550nm covering 350nm to 820nm spectrum.
It features a 60° angle of half sensitivity and is mounted through hole for easy PCB integration.
The package is hermetically sealed providing environmental protection and stability.
The device operates between -40°C and 100°C with a typical fall time of 20ns.
Radiant sensitive area measures 2.73 x 2.73 mm², suitable for exposure meters and colorimetric analysis.
The photodiode has a short circuit current of 25μA and a dark current of 2nA ensuring precise light detection.
Its dimensions are 9.5mm length, 9.5mm width and 3.7mm height in a TO-39 package.
It uses forward polarity and provides an open circuit voltage of approximately 330mV.

Product Description

The ams OSRAM BPW 21 is a high-precision photodiode designed for detecting ultraviolet, visible, and infrared light within the 350nm to 820nm wavelength range. It is housed in a robust TO-39 metal can package, which is hermetically sealed to protect against environmental factors and ensure long-term reliability.

Featuring a 60° angle of half sensitivity and a radiant sensitive area of 2.73 x 2.73 mm², this photodiode is well-suited for applications such as exposure meters, color analysis, and other optoelectronic systems requiring accurate light measurement. The device maintains stable operation across a wide temperature range from -40°C to 100°C, making it adaptable for varied industrial and laboratory environments.

The BPW 21 provides a fast response with typical rise and fall times of 20ns, making it effective for rapid light sensing tasks. Its electrical characteristics include a short circuit current of 25μA, a dark current of 2nA, a breakdown voltage of 16V, and an open circuit voltage of 330mV. It features forward polarity and two pins for through-hole mounting, simplifying integration into PCB layouts.

The TO-39 package dimensions are 9.5mm in length, 9.5mm in width, and 3.7mm in height, providing a compact form factor suitable for many electronic designs. The photodiode operates in ultraviolet, visible light, and infrared spectrums.

Peak sensitivity wavelength is 550nm for optimal detection performance. TO-39 package ensures robust and hermetic sealing. Through-hole mount type allows easy PCB integration. Device features fast rise and fall times of approximately 20 nanoseconds.

Wide operating temperature range from -40°C to 100°C. Low dark current of 2nA ensures high measurement accuracy. Dimensions suitable for compact electronic equipment. Compliant with RoHS directives ensuring environmental safety.

This photodiode is ideal for various industrial, laboratory, and optoelectronic applications, including light meters, color analysis devices, and environmental sensing instruments. Explore more high-quality Photodiodes and electronic components at EnvMart.
