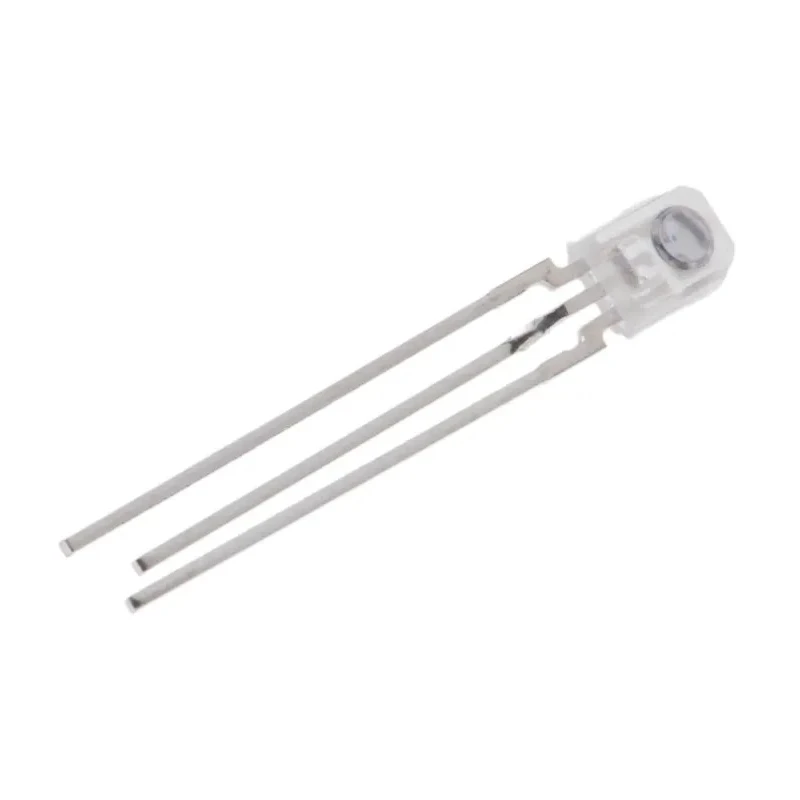

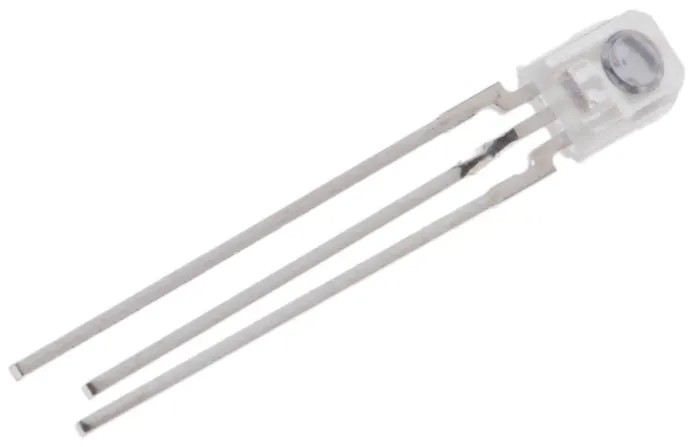

Sharp Infrared Photodetector Amplifier Unit, TO-5 Package, 3-Pin, 900nm, 4.5 - 17V Through Hole IS485E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sharp |
| Height | 4mm |
| Length | 3mm |
| Model | IS485E |
| Packaging | Tape & Reel |
| Width | 2.8mm |
| Mount Type | Through Hole |
| Series | IS |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-5 |
| Minimum Operating Temperature | -25°C |
| Operating Supply Voltage | 4.5 to 17 V |
| Standards/Approvals | RoHS |
| Number of Pins | 3 |
| Output Signal Type | Voltage |
| Wavelength of Peak Sensitivity | 900nm |
| Spectrums Detected | Infrared |
| IS485 Sharp, IR Phototransistor, Through Hole 3-PinBrand | Sharp |
Key Features
- High sensitivity to infrared spectrum, with peak sensitivity at 900nm.
- Integrated amplifier and Schmitt trigger circuit for efficient signal processing.
- Through-hole mounting and TO-5 metal package for stable installation and durability.
- Operates with supply voltage in the range of 4.5 - 17V, supporting wide usage versatility.
- Compact dimensions enable space-constrained electronic applications.
- RoHS compliant, ensuring environmentally responsible manufacturing.
- 3-pin configuration simplifies circuit integration and signal output.
Product Description
Sharp IS485E Infrared Photodetector Amplifier Unit combines advanced OPIC light detection with a built-in amplifier and Schmitt trigger circuit. Designed for sensitivity to infrared light with a 900nm peak, this component is engineered for applications requiring reliable signal detection and processing in compact formats.
This unit features a TO-5 metal package and a through-hole mounting arrangement, allowing straightforward PCB integration and mechanical durability. It offers a broad supply voltage range (4.5 - 17V), making it suitable for diverse circuit designs and control usages.
The IS485E photodetector is particularly adept at tasks requiring accurate infrared sensing, such as copiers, printers, automatic vending machines, and advanced medical instrumentation. Its high sensitivity and integrated amplification facilitate precise analysis and control of IR signals. Environmentally conscious, it meets RoHS standards and is supplied in tape & reel packaging.

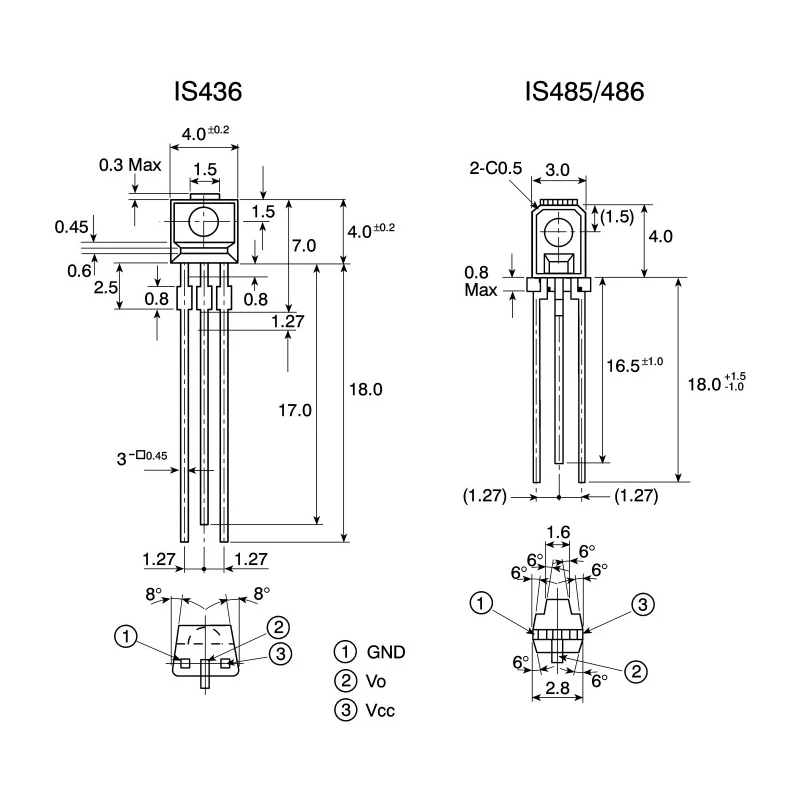

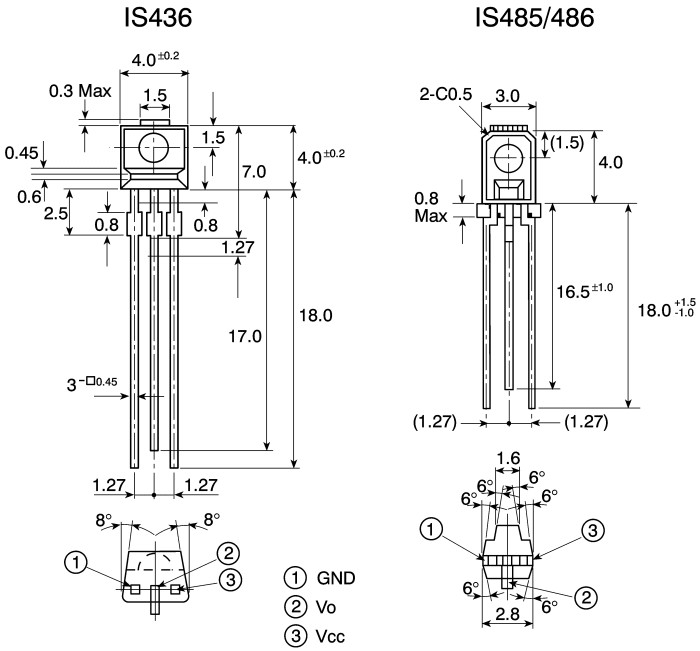

With a 3-pin output configuration, users enjoy easy circuit interfacing. The device dimensions (length 3mm, width 2.8mm, height 4mm) further reduce board real estate requirements, allowing system designers to efficiently implement infrared sensing in compact industrial and commercial electronics.
Engineers can employ the IS485E for signal processing, automatic detection, and monitoring tasks across sectors like industrial automation, laboratory instrumentation, building management, and consumer electronics. Its advanced construction ensures stable performance even in challenging environments, with an operating temperature window from -25°C to 85°C. Automotive standard is not specified, making it ideal for general electronics.
EnvMart offers Sharp optoelectronics components, including photodiodes and amplifier units, to fulfill the needs of industrial, laboratory, and commercial electronics designers. Explore our full optoelectronics and Photodiode ranges to find matching sensor and amplifier solutions for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Sharp IS485E photodetector has a peak sensitivity at 900nm, specifically designed for infrared light detection.
This model operates with a supply voltage range of 4.5 to 17V, allowing for versatile usage in various circuit designs.
The dimensions of the IS485E are 3mm in length, 2.8mm in width, and 4mm in height, making it compact for space-constrained applications.
This photodetector features a through-hole mounting type, facilitating straightforward integration into printed circuit boards (PCBs).
The output signal type for the IS485E is voltage, which is suitable for various signal processing applications.
This model operates within a temperature range of -25°C to 85°C, making it suitable for diverse environmental conditions.
The IS485E is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
The IS485E is supplied in tape & reel packaging, which is convenient for automated assembly processes.
This photodetector is designed for applications such as copiers, printers, automatic vending machines, and advanced medical instrumentation.
The IS485E features a 3-pin configuration, simplifying circuit integration and signal output.
It integrates an amplifier and a Schmitt trigger circuit, enhancing the efficiency of signal processing for infrared detection.
The country of origin for the IS485E is India, where it is manufactured to meet specified standards.
