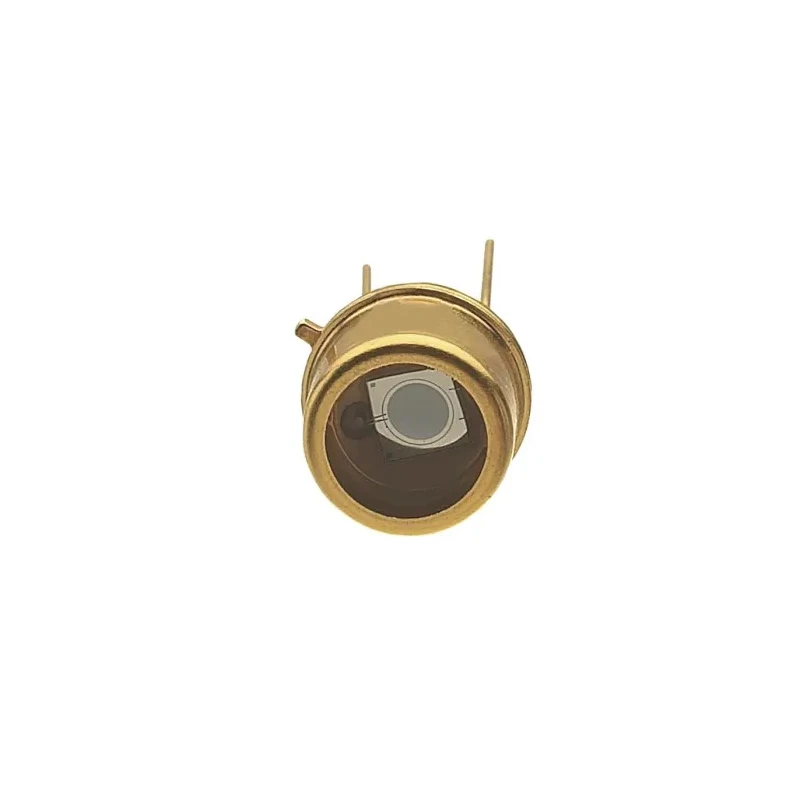

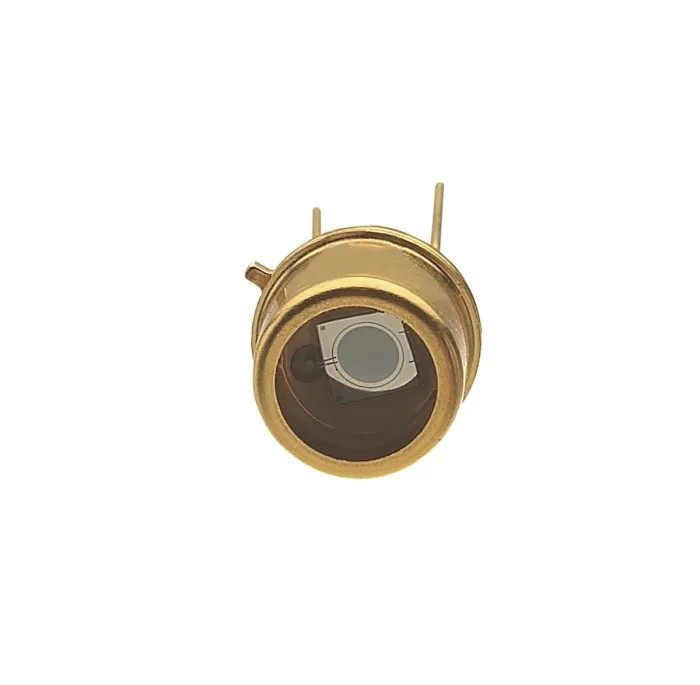

OSI Optoelectronics Infrared Photodiode, Through Hole TO-5 Package, 65 ° Half Sensitivity Angle, 970nm Peak Wavelength PIN-5D
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.14mm |
| Brand | OSI Optoelectronics |
| Height | 0.18in |
| Length | 8mm |
| Model | PIN-5D |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | Pin |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-5 |
| Minimum Operating Temperature | -25°C |
| Polarity | Reverse |
| Dark Current | 1nA |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Rise Time | 12ns |
| Typical Fall Time | 0.6ns |
| Wavelength of Peak Sensitivity | 970nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 30V |
| Minimum Wavelength Detected | 350nm |
| Maximum Wavelength Detected | 1100nm |
| Angle of Half Sensitivity | 65 ° |
| OSI Optoelectronics Infrared Photodiode, 65 °, Through Hole TO-5Brand | OSI Optoelectronics |
Key Features
- The photodiode uses a Through Hole TO-5 package ensuring durable mounting.
- It features low dark current of 1nA and low capacitance for precise optical measurements.
- The device operates reliably over a temperature range of -25°C to 85°C.
- Typical rise and fall times are 12ns and 0.6ns respectively, enabling high speed response.
- It has a breakdown voltage rating of 30V and reverse polarity operation.
- Ideal for pulse detection, optical communications, barcode readers, and medical equipment applications.
- Packaging is provided as Tape & Reel with 2 pins.
Product Description
OSI Optoelectronics PIN-5D Infrared Photodiode is a precision optoelectronic component designed for applications requiring accurate infrared detection in industrial, medical, and communication systems. The device utilizes a Through Hole TO-5 metal can package with a 65 degree half sensitivity angle, delivering wide dynamic range and high responsivity at a peak sensitivity wavelength of 970nm.
The photodiode features a low dark current of 1nA, which reduces noise and improves signal clarity. It supports a broad spectral range from 350nm to 1100nm, making it versatile for various wavelengths. Typical response times of 12ns rise and 0.6ns fall enable detection of fast optical signals, suitable for pulse detectors and high-speed photometry.
Operating temperature ranges from -25°C to 85°C, ensuring stable performance in varied environmental conditions. The device is RoHS compliant and packaged in Tape & Reel format, simplifying automated assembly.
Through Hole TO-5 package with 2 pins for easy board mounting. High speed response with 12ns typical rise time and 0.6ns fall time. Low dark current and capacitance for enhanced signal precision. Wide spectral detection range: 350nm to 1100nm.
Breakdown voltage rated at 30V and reverse polarity polarity. Applications include optical communications, barcode readers, medical devices, and remote controls. Industry compliant with RoHS standards.
This photodiode is an ideal component for integration into electronic systems requiring reliable infrared sensing capabilities. It is well suited for use across industrial, laboratory, communication, and medical instrumentations. Explore more Photodiode products and components with OSI Optoelectronics at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak sensitivity wavelength of this photodiode is 970nm.
This model operates reliably over a temperature range of -25°C to 85°C.
The typical rise time is 12ns and the fall time is 0.6ns, enabling high-speed response.
The photodiode features a low dark current of 1nA, which helps reduce noise and improve signal clarity.
The breakdown voltage rating for this photodiode is 30V.
It utilizes a Through Hole TO-5 package, which allows for durable mounting.
This model supports a broad spectral range from 350nm to 1100nm.
The PIN-5D photodiode has 2 pins for easy board mounting.
Yes, this photodiode is RoHS compliant, ensuring it meets environmental standards.
It is suitable for applications such as pulse detection, optical communications, barcode readers, and medical equipment.
The half sensitivity angle of this photodiode is 65 degrees.
The PIN-5D is packaged in Tape & Reel format, which simplifies automated assembly.
