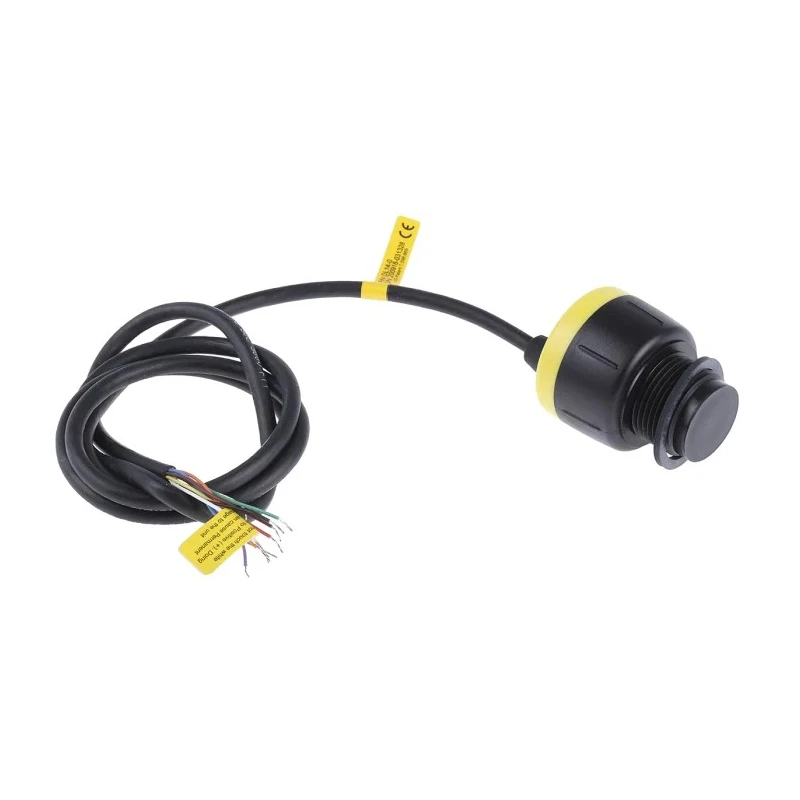

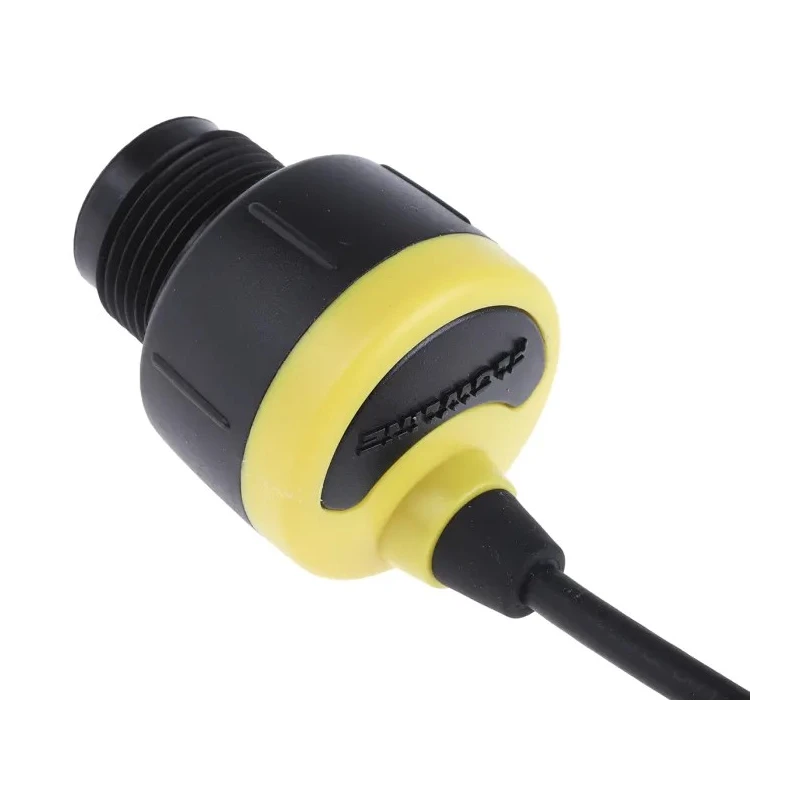

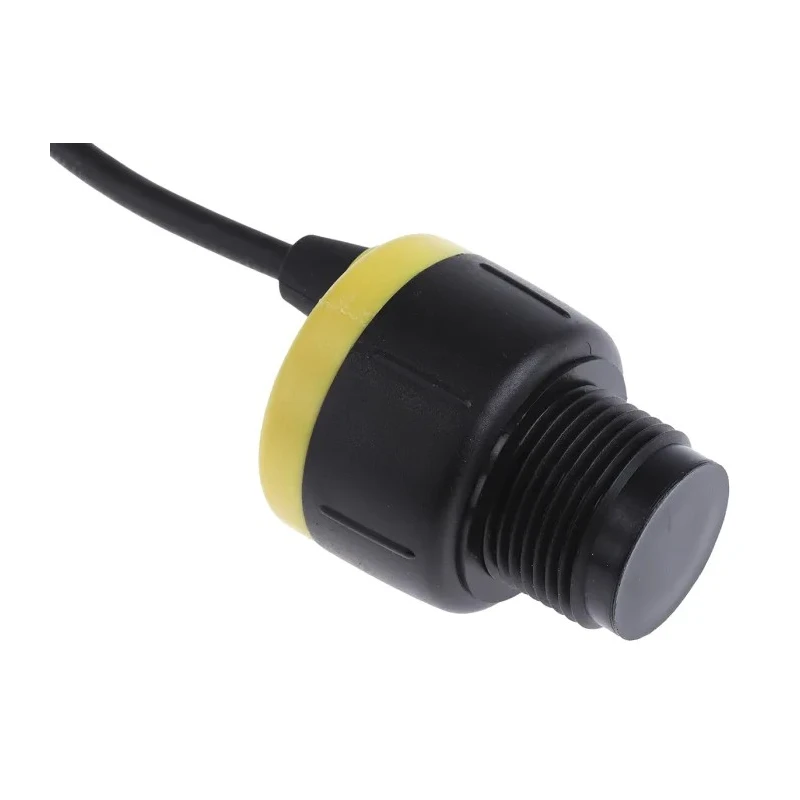

Flowline EchoPod Series Ultrasonic Level Transmitter Vertical ABS Polycarbonate Housing Fluorelastomer Gasket DL14

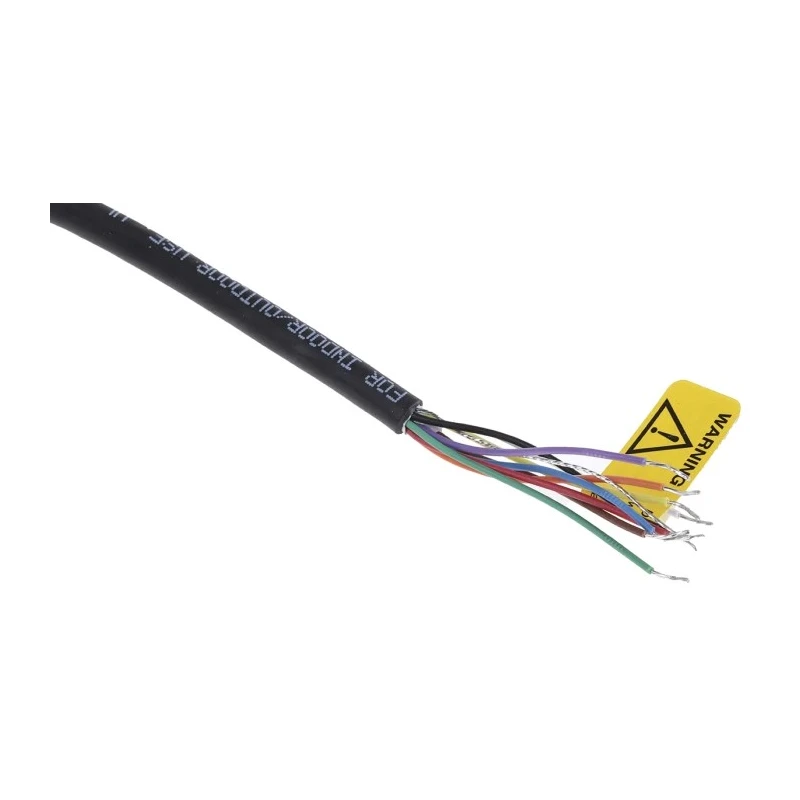

Flowline DL14 is a high-performance ultrasonic level sensor and transmitter designed for continuous non-contact level measurement. Featuring a durable ABS and polycarbonate housing combined with a fluorelastomer gasket, it provides excellent resistance against corrosive and sticky liquids. This model is optimized for vertical mounting and comes with a 1.2-meter cable, allowing convenient installation and reliable signal transmission.

The device operates under a temperature range of -35°C to 60°C and can withstand pressures up to 2 bar, making it suitable for various industrial and automation applications especially in harsh environments. It functions at a low power consumption of 24V DC and 20mA maximum current, ideal for energy-efficient operations. Safety and regulatory compliance are ensured through cFMus certification.

This ultrasonic level sensor incorporates a USB adapter for straightforward connectivity, facilitating easy integration and configuration in automation systems. Designed and manufactured in the United States, the Flowline EchoPod DL14 guarantees quality and long-term performance needed in industries such as water treatment, chemical processing, and manufacturing automation.

Non-contact continuous level measurement suitable for corrosive and sticky liquids. Operates reliably in temperatures from -35°C to 60°C. Maximum operating pressure of 2 bar with a 1.2 meter cable length included. Powered by 24V DC with a maximum current of 20mA for efficient operation.

Certified to meet cFMus standards ensuring high safety and quality. Equipped with USB adapter interface for easy connectivity and configuration. Compact and durable design with vertical mounting for versatile application.

Manufactured in the United States offering trusted build quality.

This sensor is well-suited for industrial, laboratory, manufacturing, and automation control use cases requiring accurate liquid level detection without contact sensors. Its robust materials and industry approval make it a reliable choice for demanding environments. Browse other Level Sensors and ultrasonic sensors available at EnvMart for a complete sensing solution.
