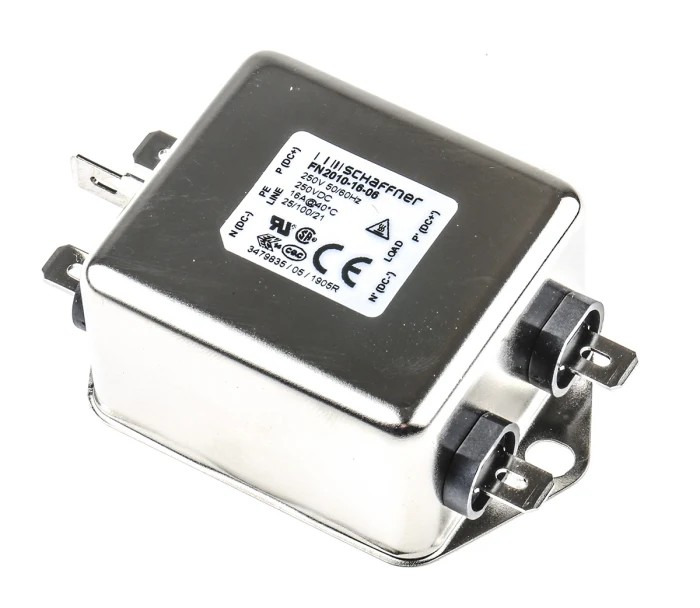

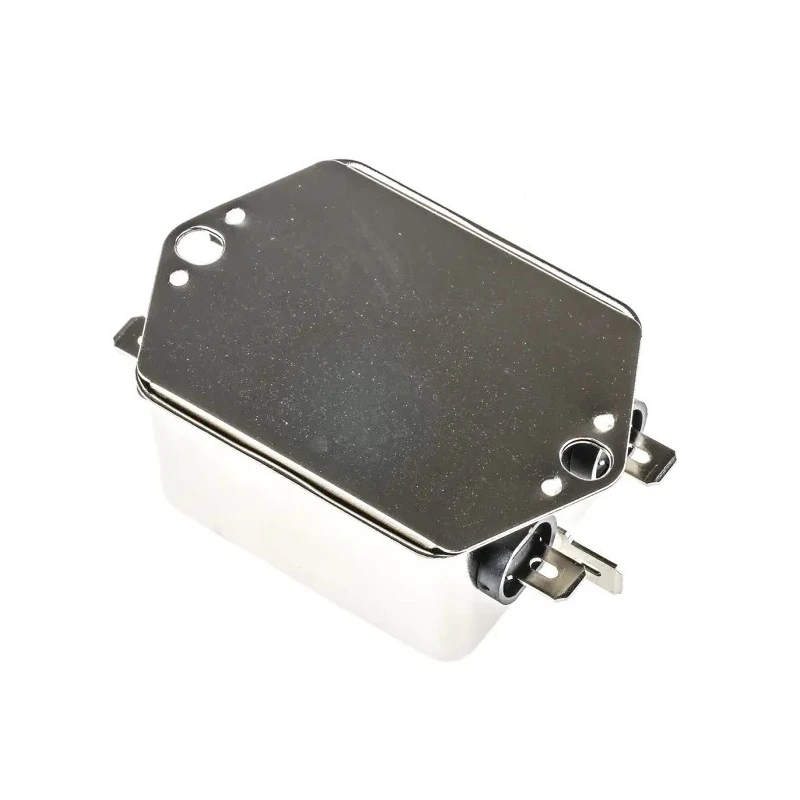

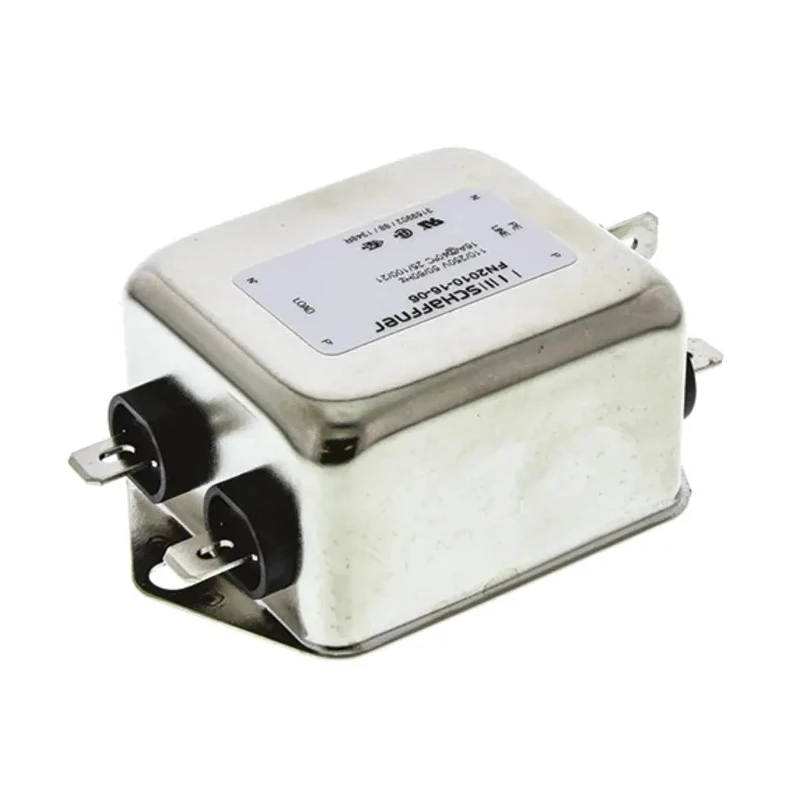

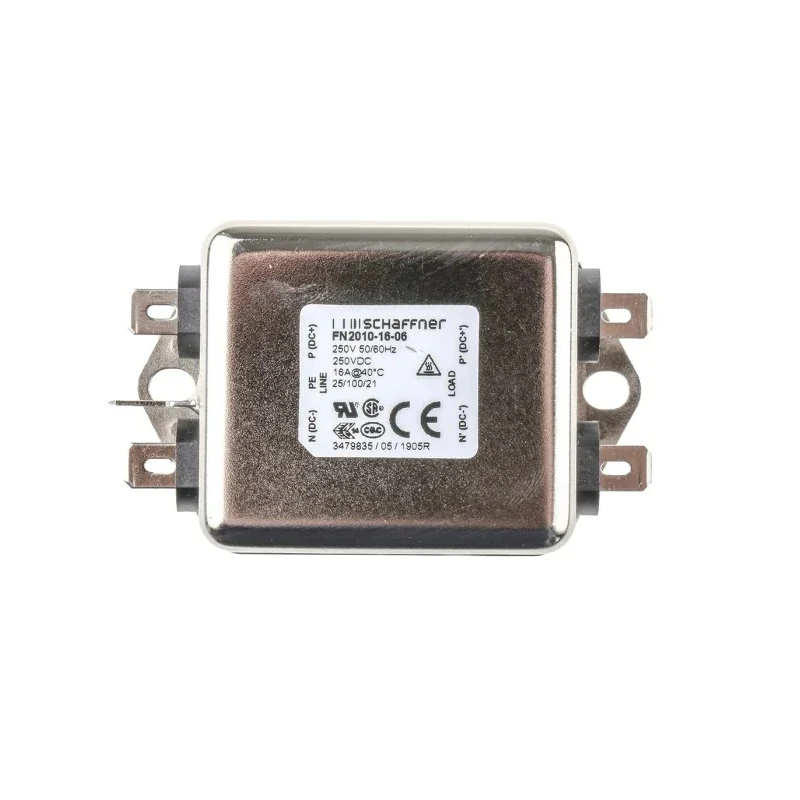

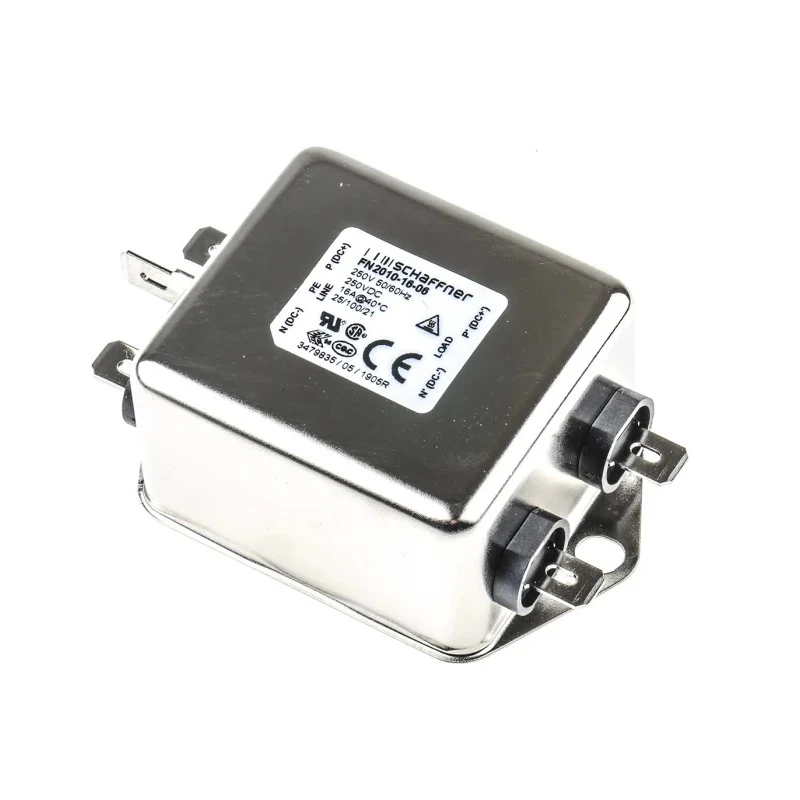

Schaffner Chassis Mount EMI Filter 16 A 250V AC/DC, 0 Hz to 400 Hz, Fast-On Termination, 1 Phase FN2010

Schaffner FN2010 series chassis mount EMI filter is designed for industrial and electronic applications requiring high reliability EMI suppression. This filter supports a maximum current of 16 A and a voltage rating of 250 V AC/DC, making it suitable for various power line filter needs. Its frequency operating range from 0 Hz to 400 Hz allows use in AC and DC applications.

The filter is housed in a durable aluminium chassis mount case and uses fast-on terminal connections for easy installation. It features a single-stage design optimized for one phase systems, ensuring efficient attenuation of electromagnetic interference.

Key electrical parameters include 100 nF capacitance and 700 μH inductance, delivering effective noise mitigation. The device operates reliably within a temperature range of -25°C to 100°C, suitable for most industrial environments.

Physical dimensions of 46.6 mm length, 71 mm depth, and 29.3 mm height provide a compact footprint for space-sensitive applications. Leakage current is minimized at 740 μA and resistance is very low at 1 mΩ, enhancing energy efficiency while maintaining filter effectiveness.

While there are no specific standards or certifications declared, the FN2010 series is recognized for quality general-purpose EMI filtering in electronic assembly, power supply regulation, and noise suppression scenarios.

Designed for chassis mount installation with fast-on termination style. Suitable for EMI suppression in general purpose electronic equipment. Features 100 nF capacitance and 700 µH inductance for effective filtering. Operates within temperature range from -25°C to 100°C for reliable performance.

Compact dimensions: 46.6 mm length, 71 mm depth, and 29.3 mm height. Low leakage current of 740 µA and resistance of 1 mΩ ensures efficiency. Single-stage filter designed for one phase applications. No specific certifications declared, suitable for industrial and electronics use.

This EMI filter is ideal for industrial, electronic manufacturing, laboratory equipment, power supply units, and HVAC systems where electromagnetic interference must be minimized. Its compact design and electrical characteristics make it suitable for retrofit or new installations requiring reliable EMI attenuation.
