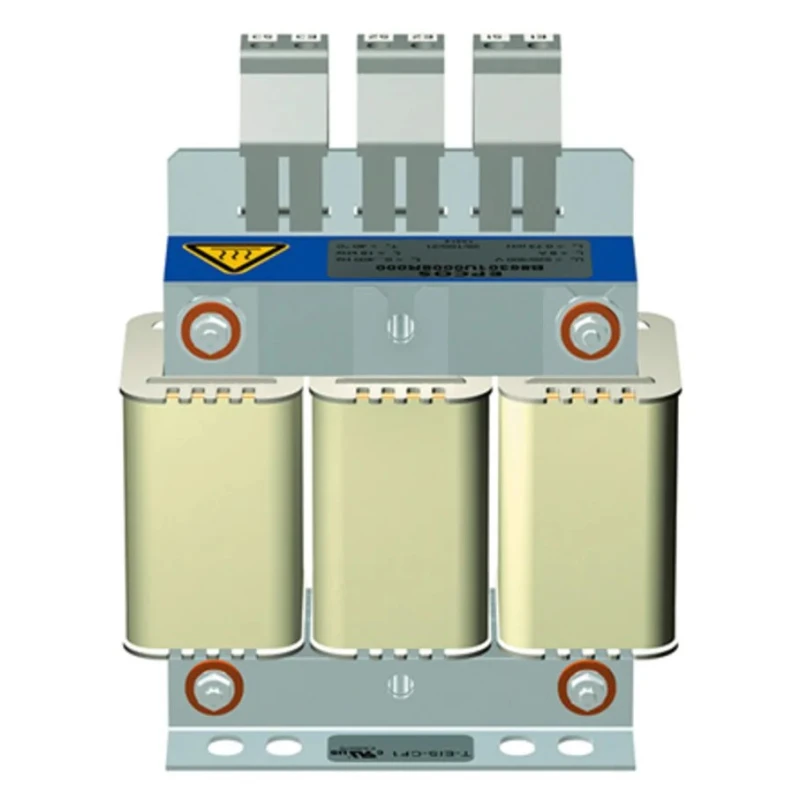

TDK EMC Filter, 24A, 520V AC, 50Hz/60Hz, Chassis Mount, Terminal Block, 3-Phase B86301U0024R000
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TDK |
| Height | 140mm |
| Length | 125mm |
| Model | B86301U0024R000 |
| Depth | 90mm |
| Packaging | Bulk |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | B86301U |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 12.5mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 24A |
| Number of Phases | 3 |
| Maximum Voltage | 520V ac |
| Inductance | 250μH |
| Standards/Approvals | UL Insulation System Class 155 |
| Termination Style | Terminal Block |
| Power Loss | 25W |
Key Features
- Supports maximum current of 24A and voltage of 520V AC.
- Chassis mount configuration for secure and easy installation.
- Terminal block termination for reliable connectivity.
- Designed for 3-phase operation with single stage filtering.
- Operating frequency range of 50Hz to 60Hz for flexible applications.
- Efficient dv/dt reduction for motor drive protection.
- Suitable for industrial HVAC, pumps, elevators, and conveyor systems.
- UL Insulation System Class 155 approved for safety and reliability.
Product Description
TDK B86301U0024R000 EMC Filter is engineered for robust noise suppression and voltage stress reduction in industrial power systems. Featuring 24A maximum current and supporting up to 520V AC, this filter is ideal for applications requiring high-current and high-voltage endurance. The chassis mount design ensures reliable installation, while terminal block termination offers user-friendly connectivity.
Supports 24A maximum current, ideal for demanding industrial environments. Rated for up to 520V AC, providing voltage flexibility for power line filtering. Easy mount on chassis for stable and secure setup. Terminal block termination provides secure, accessible wiring.
Single stage, 3-phase operation suitable for frequency converter and motor drive systems. Operates in 50Hz or 60Hz frequency ranges for global compatibility. Reduces dv/dt and voltage stress, enhancing motor protection and system reliability.
UL Class 155 insulation for high-level safety compliance.
Reliable filtering is critical for industrial applications such as HVAC controls, water pumps, conveyors, and elevators, where voltage noise or spikes may damage sensitive motor and system electronics. The TDK B86301U EMC filter incorporates quality inductance and compact construction, enabling natural cooling and mounting flexibility.
Operating temperatures range from -25°C up to 100°C, compatible with harsh environments.
Typical industrial use cases include frequency converters, industrial motors, traction systems, and critical process electronics. Designed for IEC60076-6 standards compliance, the filter ensures system stability under full load operations.
Choose EnvMart and TDK for reliable EMC filtering solutions in your industrial and commercial electrical installation. Discover more EMI/EMC filters across our Electronics Components category.
Explore more products in our EMI Filter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDK B86301U0024R000 EMC filter supports a maximum current of 24A.
It is rated for a maximum voltage of 520V AC.
This EMC filter operates at frequencies of 50Hz and 60Hz, providing flexibility for various applications.
The filter features a chassis mount design, ensuring secure and stable installation.
It utilizes a terminal block termination style for reliable and accessible wiring connections.
The operating temperatures range from -25°C to 100°C, making it suitable for harsh environments.
The inductance value of the TDK B86301U0024R000 is 250μH.
This filter is designed for 3-phase operation.
The power loss for this model is rated at 25W.
It is compliant with UL Insulation System Class 155, ensuring safety and reliability.
This model is suitable for industrial applications such as HVAC controls, pumps, elevators, and conveyor systems.
The dimensions of the TDK B86301U0024R000 are 140mm in height, 125mm in length, and 90mm in depth.
