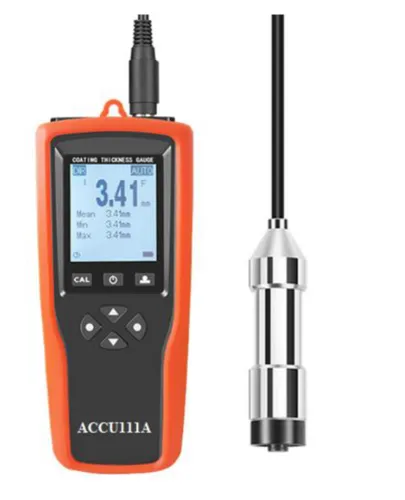

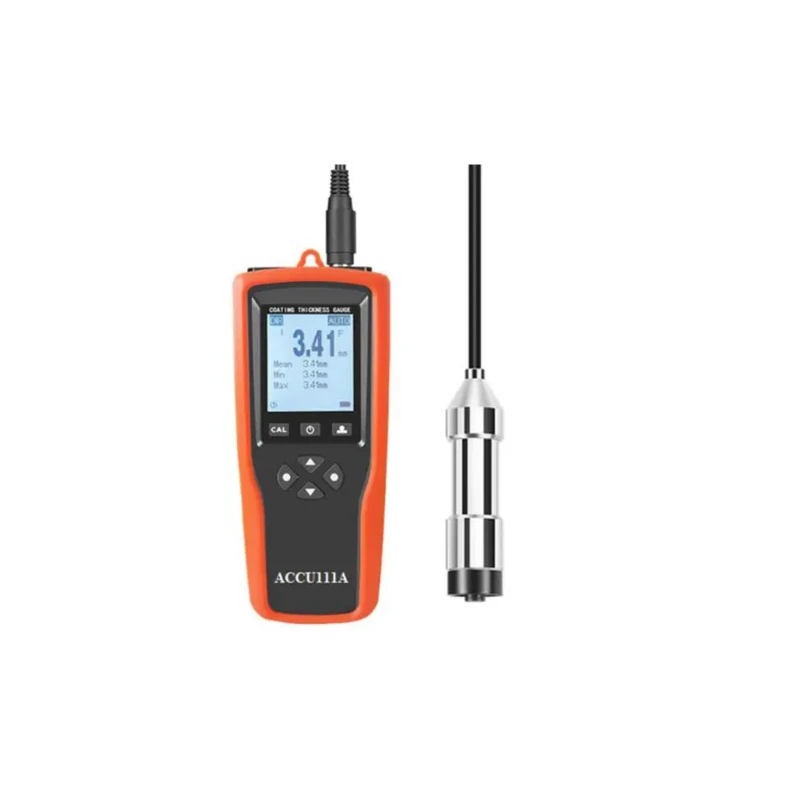

0-5000 Um Coating Thickness Gauge EC-900
Specifications
| Resolution | 0~99.9um(0.1um) others(1um) |
|---|---|
| Accuracy | (1%+5 um) |
| Measuring range | Up to 10000 um |
| Power Supply | Three 1.5 V AAA battery |
| Alarm | User can set the high/low alarm limit| Alarm icon displayed on LCD when over the limit |
| Calibration | One point to four points calibration zero point calibration |
| Probe | F-Probe & N-Probe |
| Model | EC-900 |
| Measuring Principle | Magnetic induction & Eddy Currents |
| Operation Environment | Temperature -10 to 50 |
| Computer Interface | Download data via USB |
| Data Group | Four general groups (readings will be stored automatically) One direct group(readings not be stored to memory) |
| Statistics | No. of readings mean minimum maximum and standard deviation |
| Minimum Curvature Radius Convex | 1.5 mm |
| Minimum Curvature Radius Concave | 25 mm |
| Minimum Measuring Area | Diameter 6 mm |
| Minimum Thickness Of Substrate | 0.5 mm(0.02) |
| Storage Environment | -10 to 60C(-4 to 158F) |
Key Features
- Separate digital probes
- A maximum range of 5000µm
- Accuracy ±(2%+1µm)
- Resolution up to 0.1µm
- Display maximum, minimum and average
- Red backlight over-limit alarm
Product Description
0-5000 Um Coating Thickness Gauge EC-900, The EC-900 Thickness Gauge can non-destructively measure the thickness of non-conductive coatings on metal surfaces, as well as the thickness of non-ferromagnetic metal coatings on ferromagnetic metals (such as iron, nickel, and cobalt, etc.). Specific uses include measuring the surface paint or plating of iron and stainless steel. The thickness of the zinc layer, measures the thickness of the paint or plastic film on the surface of aluminum and copper.
- Standardized menu interface
- USB data transmission
- Support user calibration
- Display with backlight
- Automatic shut-down
- Metal Anti-rust Treatment
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EC-900 can measure thickness up to 10,000 µm.
The accuracy of the EC-900 is ±(1% + 5 µm).
This model has a resolution of 0.1 µm for measurements up to 99.9 µm and 1 µm for other measurements.
It can non-destructively measure non-conductive coatings on metal surfaces and non-ferromagnetic metal coatings on ferromagnetic metals.
The EC-900 operates on three 1.5 V AAA batteries.
The operating environment for this model is between -10 to 50 degrees Celsius.
Yes, it supports USB data transmission for downloading measurements.
The EC-900 allows for one to four points calibration, including zero point calibration.
The minimum thickness of the substrate that can be measured is 0.5 mm.
The display shows maximum, minimum, and average values, and includes a red backlight for over-limit alarms.
The minimum curvature radius for convex surfaces is 1.5 mm and for concave surfaces, it is 25 mm.
