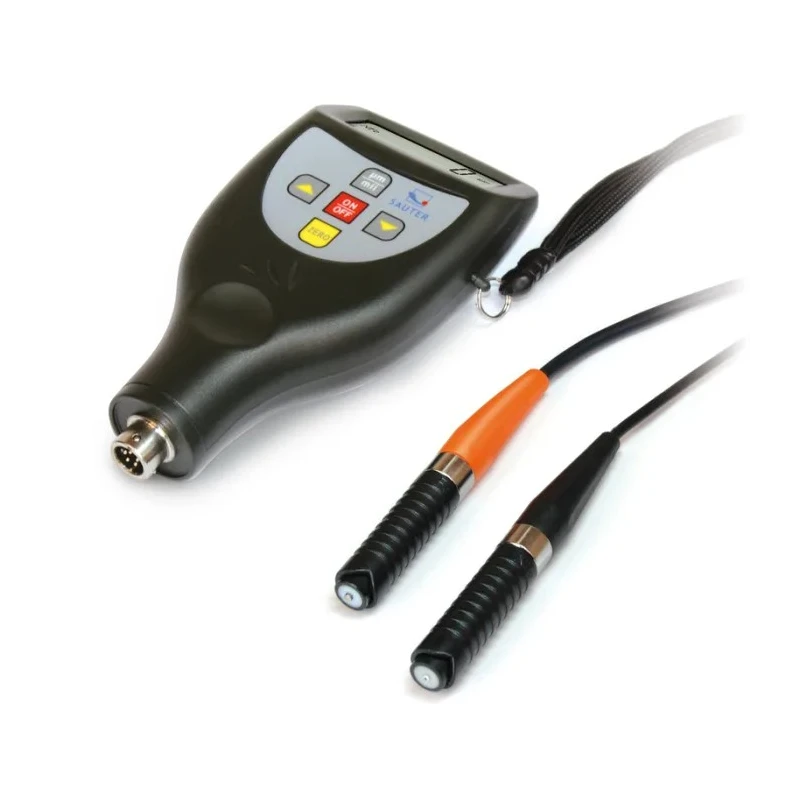

Sauter Digital Coating Thickness Gauge TE 1250-0.1FN ±3% Accuracy 1 μm Resolution LCD Display

Free Delivery in India | Lowest Global Shipping Charges

Sauter Digital Coating Thickness Gauge TE 1250-0.1FN ±3% Accuracy 1 μm Resolution LCD Display

Name: Sauter Digital Coating Thickness Gauge TE 1250-0.1FN ±3% Accuracy 1 μm Resolution LCD Display
Brand: Sauter
SKU: 205346
Price: 914.75 USD
Availability: InStock



Category Thickness Gauge Brand Sauter Condition New

Specifications

Country of Origin	China
Resolution	1 μm
Accuracy	±3 %
Display Type	LCD
Frequency	50Hz
Brand	Sauter
Battery type	1.5 V AAA
Height	28mm
Length	131mm
Model	TE 1250-0.1FN
Gross Weight	81g
Width	65mm
Includes	Cable
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C

Key Features

The gauge includes an external sensor for ease of use in difficult-to-access measurements.
It supports selectable measuring units in micrometers and inches (mil).
The device features a data interface via RS-232 for seamless data transfer.
Auto power-off functionality helps conserve battery life.
Supplied with a hard carrying case, base plate, calibration foils, and cable for secure storage and accurate calibration.
Operates within 0°C to 50°C temperature range.
Battery powered by 1.5 V AAA cells ensuring portability.

Product Description

Sauter TE 1250-0.1FN digital coating thickness gauge provides precise measurements with ±3% accuracy and 1 μm resolution, displayed on a clear LCD screen. This high-quality instrument is designed for industrial, laboratory, and manufacturing quality control applications where precise coating thickness measurement is critical.

The gauge utilizes an ergonomic design with an external sensor for convenient measurements on surfaces that are difficult to reach. It features selectable measuring units of micrometers and inches (mil), enabling versatile use across different standards. The integrated RS-232 data interface facilitates easy data transfer to computers or data logging systems, enhancing efficiency and traceability in testing processes.

This device is powered by 1.5 V AAA batteries and includes an auto power-off function to save energy during idle periods. The robust build, compact dimensions of 131 mm length, 65 mm width, and 28 mm height, and a light weight of just 81 g make it well-suited for portable field or workshop use. Operating temperature ranges from 0°C to 50°C, ensuring stable performance in typical working environments.

The product is supplied with essential accessories including a cable, base plate, calibration foils, and is securely stored in a hard carrying case to protect it during transportation and storage. It conforms to standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, assuring quality and reliability.

The gauge includes an external sensor for high ease of use. Selectable measuring units: micrometers (μm) or inch (mil). Data interface via RS-232 included with the product. Auto power-off function conserves battery life.

Comes with base plate, calibration foils, cable, and hard carrying case. Compact size and lightweight design for portability. Complies with ANSI/ESD S20.20 and BS EN 61340-5-1 standards.

This digital coating thickness gauge is ideal for use in industrial quality control, laboratory testing, construction material inspection, automotive and aerospace applications, and other environments requiring precise thickness measurements. For further related products and accessories, explore the Thickness Gauges category in EnvMart's measuring and testing instruments section.
