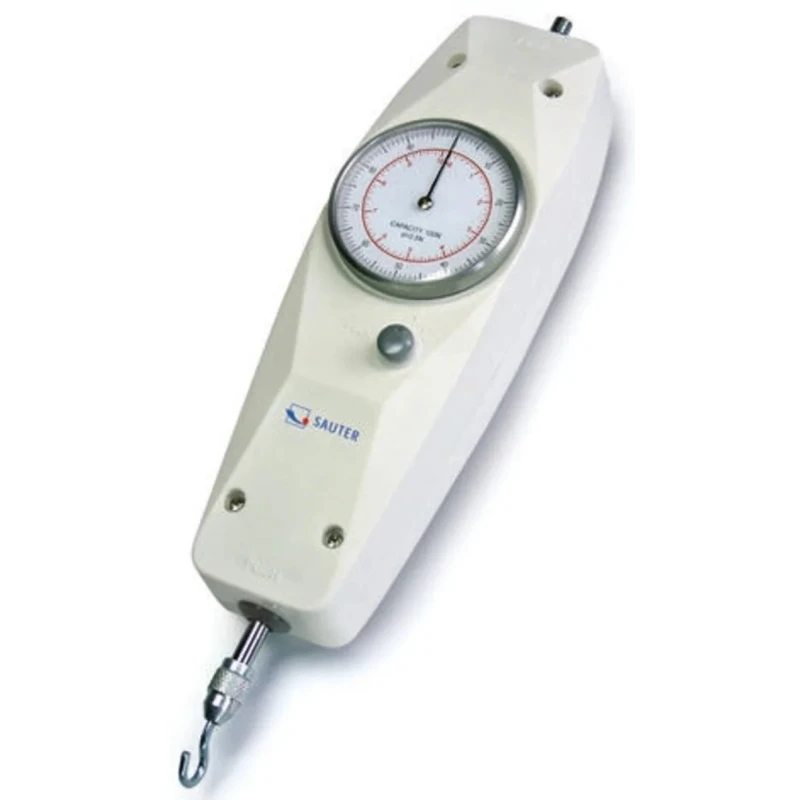

Sauter Force Gauge with Analogue Mechanical Spring Measuring System FA 100, Resolution 0.5 N FA 100

Sauter FA 100 Force Gauge FA 100 is a reliable analogue mechanical force gauge with a spring measuring system and pointer display, providing force readings in Newtons (N) and kilograms (kg) with an accuracy of ±1% and a resolution of 0.5 N. It is powered by a rechargeable battery and designed for industrial, laboratory, and manufacturing force measurement applications.

This gauge measures both tractive and compressive forces, offering peak value and continuous measurement modes, including zero position and tare functions for enhanced usability. It has an overload protection capability up to 150% of the final value and can measure a range of forces with a 10 mm travel upon reaching peak load. Its build dimensions are 230 mm in length, 60 mm in width, and 50 mm in height, with a weight of 560 grams.

The device operates effectively within a temperature range of 10°C to 30°C and complies with ISO standards, ensuring reliability and conformity. It is suitable for mounting on all test stands featuring four M3 screws.

The package includes six standard attachments such as a hook, pressure plate, and pressure peaks, all packed within a robust carry case, facilitating field or laboratory use.

This force gauge is widely applicable across industrial and laboratory testing, quality control, material testing, and safety equipment inspection. It offers robust performance for tasks demanding precise, repeatable force measurement with mechanical simplicity and durability.

The gauge measures both compressive and tractive forces with peak and continuous modes. Equipped with a mechanical spring system providing ±1% accuracy. Features zero position and tare functions for precise adjustment. Includes overload protection to 150% of the final measurement value.

Operates between 10°C and 30°C, maintaining stability. Comes with six standard attachments for diverse measurement needs. Measuring dimensions are compact for easy handling and mounting. Complies with ISO standards for measurement quality assurance.

Powered by a rechargeable battery for convenient portability. Packaged in a carry case for protection and transport. Explore more Force Gauges and measurement instruments in the EnvMart catalog for precision and quality assurance needs.
