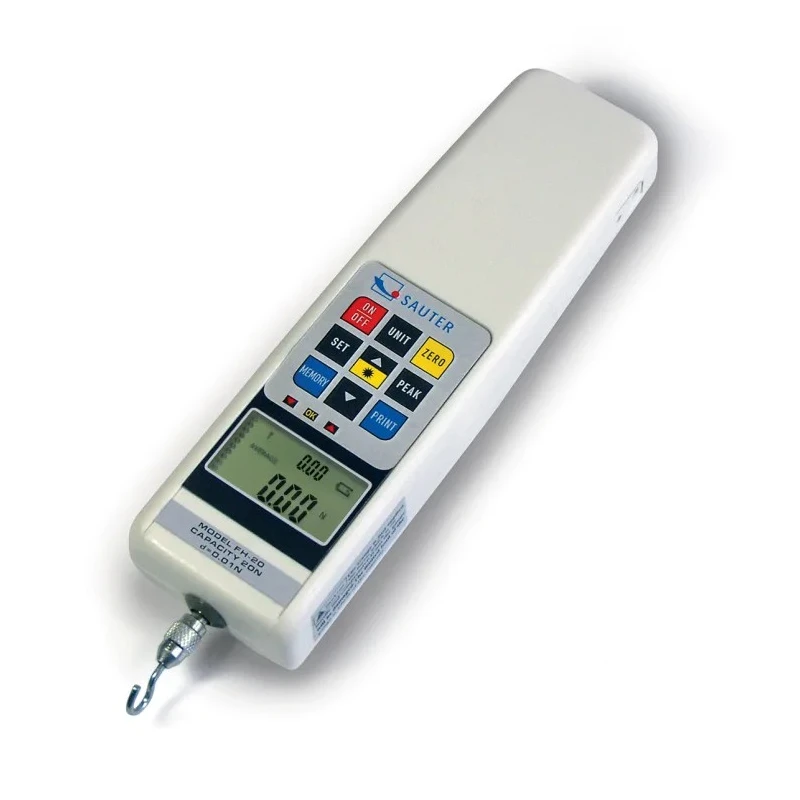

Sauter Digital Force Gauge FH 5 2000 Hz Sampling Rate RS232 Output 0.001 N Resolution FH Series FH 5

The Sauter FH 5 digital force gauge FH Series model offers professional measuring performance with a high sampling rate of 2000 Hz and a fine resolution of 0.001 N. Designed for precise tractive and compressive force testing, it provides an accuracy of ±0.5%, making it suitable for laboratory, industrial, quality control, and manufacturing applications.

Equipped with an RS232 digital output, this device enables easy integration with external data acquisition systems or computers for extensive data analysis. The rechargeable battery powered unit uses a Type C plug ensuring efficient power supply and ease of charging in modern setups.

The unit features a rotatable display with a 180° view angle, facilitating operator convenience in various test stand setups. Additional measurement functions include tare for zeroing, peak hold to capture maximum force, and limit value for quality control, supporting the testing of equal specimen batches.

With its overload protection capability of 150% of the final value, the force gauge ensures durability and safety during rigorous use. The compact size of 230mm length, 66mm width, and 35mm height along with lightweight design of 640g enhances portability.

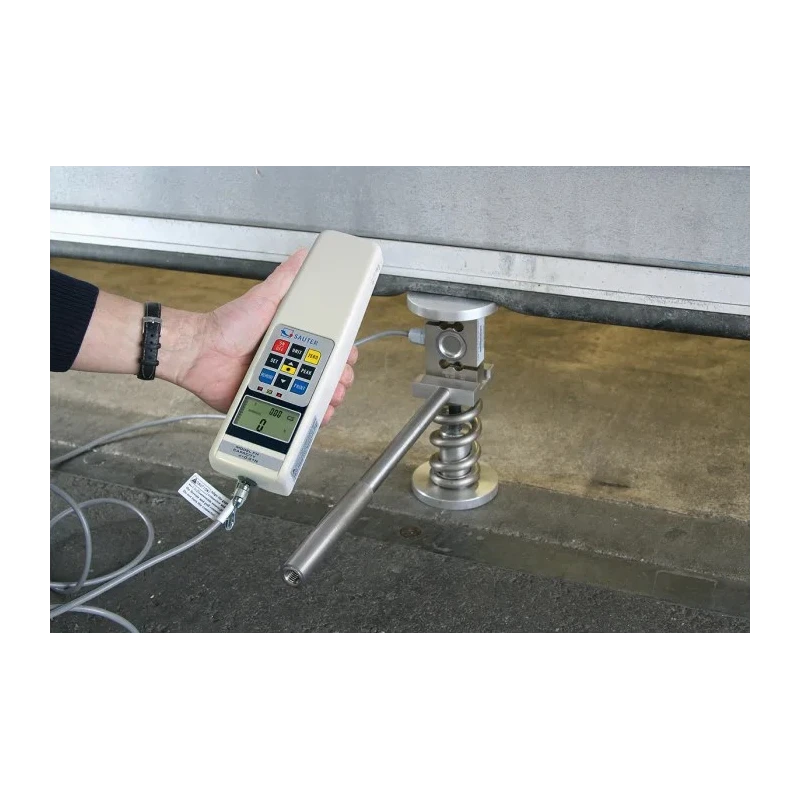

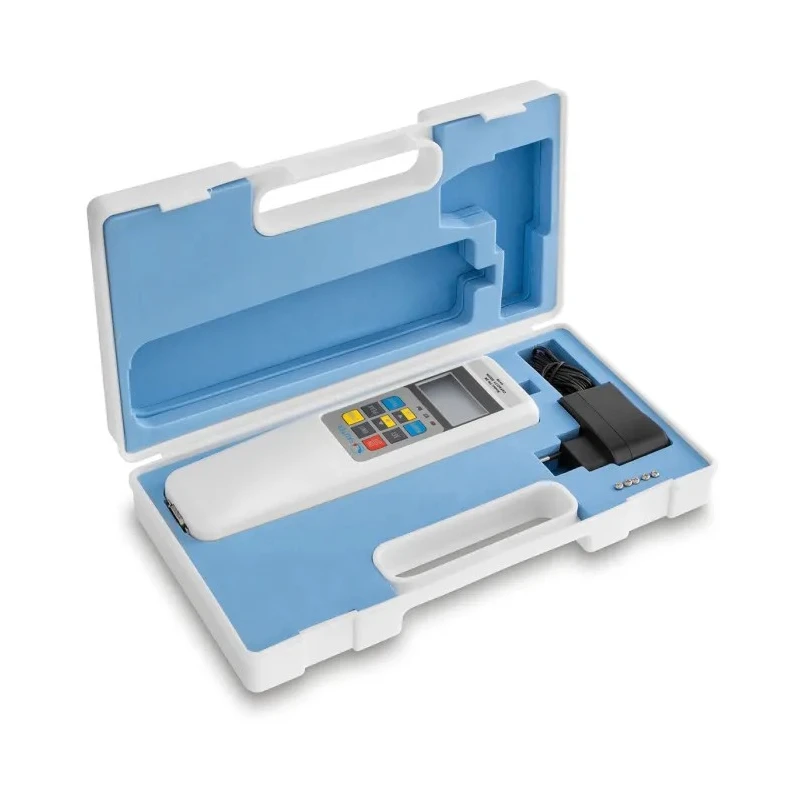

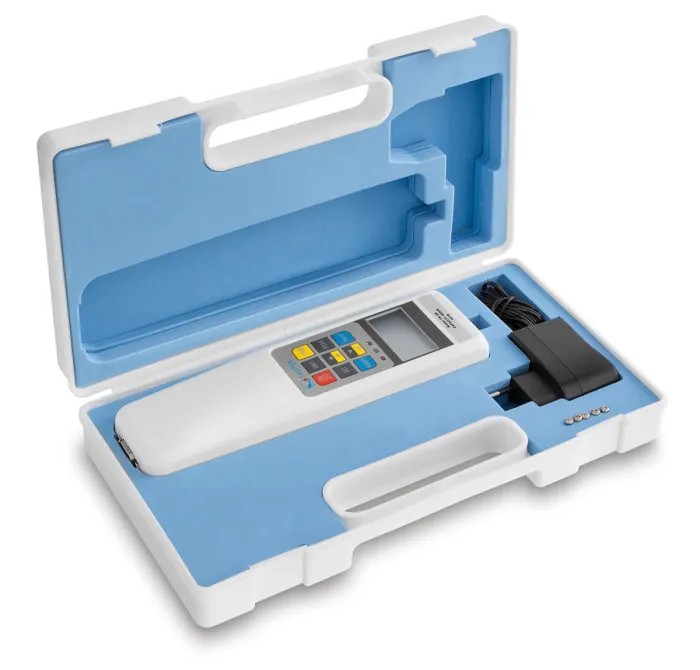

This device is supplied with six standard accessories including hooks, pressure plates, and pressure peaks all housed in a protective transport case. Suitable for use with all Sauter test stands, it accommodates multiple industrial and laboratory applications, including materials testing, packaging controls, tensile testing, and component force analysis.

Operating temperature range from 10°C to 40°C supports its use in environments with controlled ambient conditions. The product complies with ISO standards and is manufactured in China, ensuring quality and performance reliability.

This digital force gauge features RS232 digital output for seamless data transfer. It has an accuracy of 0.5% and supports measurement units in kg, lb, and N. The device includes a rechargeable battery with Type C plug for efficient power management.

The compact size with dimensions 230mm length, 66mm width, and 35mm height makes it portable. It incorporates overload protection up to 150% of the final value for device safety. The display rotates 180 degrees and features tare function, peak hold, and limit value functions for quality control.

This gauge supports tractive and compressive force measurements with 10 memory spaces for peak value entries. Operating temperature ranges from 10°C to 40°C, suitable for controlled environments. The product comes with six standard attachments including hooks, pressure plates, and pressure peaks in a transport case.

It complies with ISO standards and is made in China. Explore the Sauter FH 5 and other precision Force Gauges in the EnvMart measuring and testing instruments category for your industrial or laboratory needs.
