Sauter Digital Force Gauge with 2000 Hz Sampling Rate, RS232 Output, Resolution 5 N FH 10K

Free Delivery in India | Lowest Global Shipping Charges

Sauter Digital Force Gauge with 2000 Hz Sampling Rate, RS232 Output, Resolution 5 N FH 10K

Name: Sauter Digital Force Gauge with 2000 Hz Sampling Rate, RS232 Output, Resolution 5 N FH 10K
Brand: Sauter
SKU: 215052
Price: 2645.14 USD
Availability: InStock



Category Force Gauge Brand Sauter Condition New

Specifications

Country of Origin	China
Resolution	5 N
Brand	Sauter
Height	36mm
Length	23mm
Model	FH 10K
Gross Weight	1.79kg
Width	66mm
Sampling rate	2000Hz
Maximum Operating Temperature	40°C
Digital Output	RS232
Minimum Operating Temperature	10°C
Plug Type	EU, CH
Units Measured	kN
Selectable measuring units	N, lb, kg, kN, t
Mini Statistics Kit	calculates the average result from up to ten stored single results, min., max., n
Sauter FH 10K Force Gauge 2000 Hz RS232, Resolution	5 N

Key Features

Turnable display with backlight enables easy reading in various lighting conditions.
Selectable measuring units including N, lb, kg, kN, and t provide versatile usage.
Real-time and peak hold modes capture transient forces and maximum readings precisely.
Function for setting programmable maximum and minimum limits with audible and optical alarms.
Mini statistics kit calculates averages, minimum, maximum, and count from stored measurement data.
Operates within temperature range 10°C to 40°C ensuring reliable performance.
Compact dimensions of 23 mm length, 66 mm width, and 36 mm height allow flexible integration.

Product Description

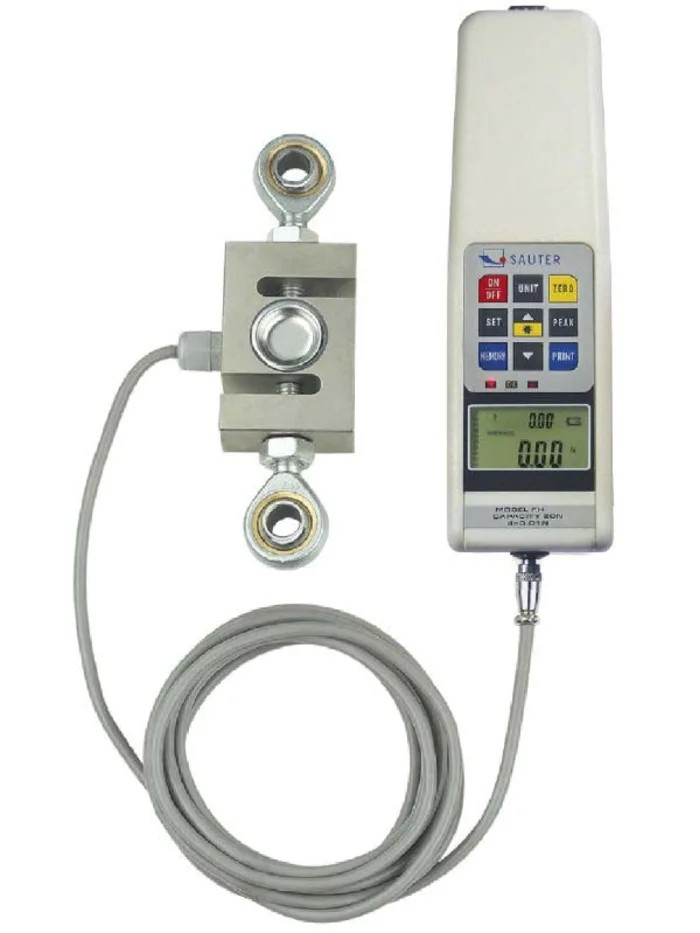

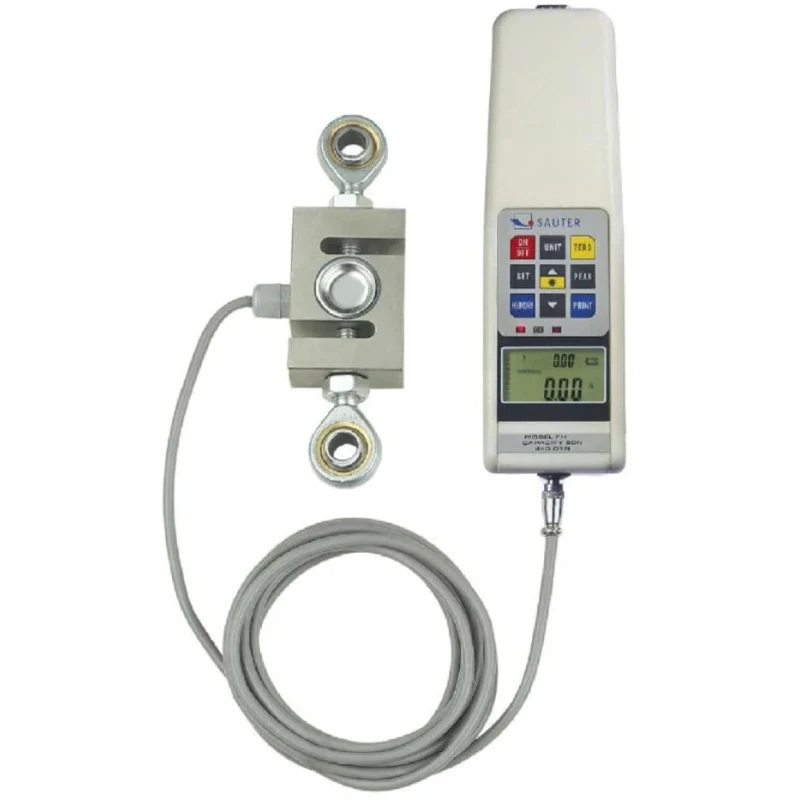

The Sauter FH 10K digital force gauge is a precision instrument designed for industrial, laboratory, and manufacturing force measurement applications. Featuring a high sampling rate of 2000 Hz and a resolution of 5 N, this gauge ensures accurate capture of dynamic and peak forces with a digital RS232 interface for seamless data transfer.

This force gauge has a turnable backlit display for enhanced visibility and ergonomics. It supports selectable units including newton (N), pound (lb), kilogram (kg), kilonewton (kN), and tonne (t), making it suitable for diverse measurement requirements. The device offers real-time force display and peak hold capability to observe transient events and maximum force loads effectively.

The FH 10K includes an advanced function to program max and min force thresholds in both pull and push directions, with audible and optical alarms for limit exceedance. This feature is ideal for efficient testing of standard parts and components.

Its built-in mini statistics kit calculates average, minimum, maximum, and the number of measurements stored, facilitating comprehensive data analysis during measurement tasks.

Compact and lightweight, with dimensions of 23 mm (L) x 66 mm (W) x 36 mm (H) and weighing 1.79 kg, the force gauge is designed for comfortable handheld use and easy integration into test stands or automated systems. Operating temperature range from 10°C to 40°C ensures consistent performance in various industrial environments.

Manufactured in China, this Sauter FH 10K model meets high standards of digital force measurement technology, making it suitable for quality control, research and development, material testing, and many industrial force testing applications.

Turnable display with backlight. Selectable measuring units: N, lb, kg, kN, t. Real-time and peak hold modes. Programmable limit alarms with audible and optical signals. Mini statistics kit for average, min, max, and count.

Browse more Force Gauges at EnvMart for additional instrument options to meet specific testing requirements.
