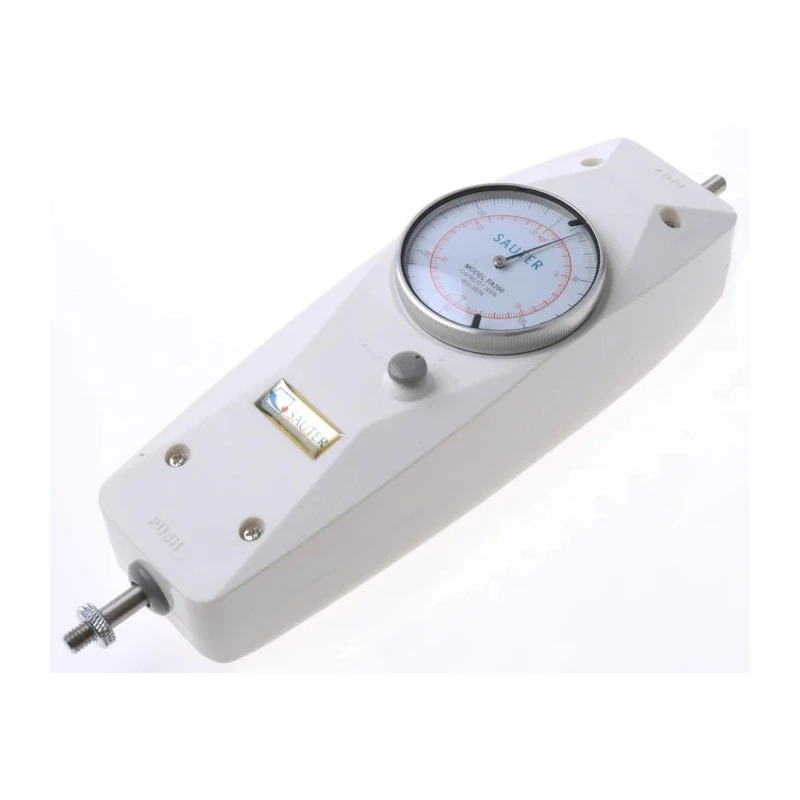

Sauter Force Gauge with Spring Measuring System, Measuring Range FA, Resolution 2 N, Accuracy ±1%, Rechargeable FA 300

Sauter FA 300 Force Gauge is a high-precision measurement instrument designed for industrial and laboratory applications where accurate force measurement is essential. Featuring a spring measuring system with a pointer display, it measures both tractive and compressive forces with a resolution of 2 N and an accuracy of ±1%.

The FA 300 model allows users to switch between peak value reading and continuous measurement, providing flexibility for various testing scenarios. It includes zero position and tare functionality, enabling precise baseline adjustment before measurement. The gauge is robustly engineered with overload protection up to 150% of its maximum value to ensure durability in demanding testing environments.

With compact dimensions of 230 mm length, 60 mm width, and 50 mm height, and weighing 560 g, this force gauge is portable and easy to integrate into test stands using the provided four M3 screw mounting points. It is powered by a rechargeable battery, allowing for extended use without frequent replacements.

Measures mechanical force using a spring system and pointer style indicator. Accuracy of ±1% ensures reliable results in quality control and calibration tasks. Resolution of 2 N allows detection of subtle force changes. Includes six standard attachments such as hooks and pressure plates for versatile measurement applications.

Overload protection safeguards the instrument up to 150% of rated capacity. Operating temperature range from 10°C to 30°C ensures stable performance in controlled environments. ISO standards compliance underscores quality and consistency.

Compact and lightweight design facilitates easy handheld or mounted use.

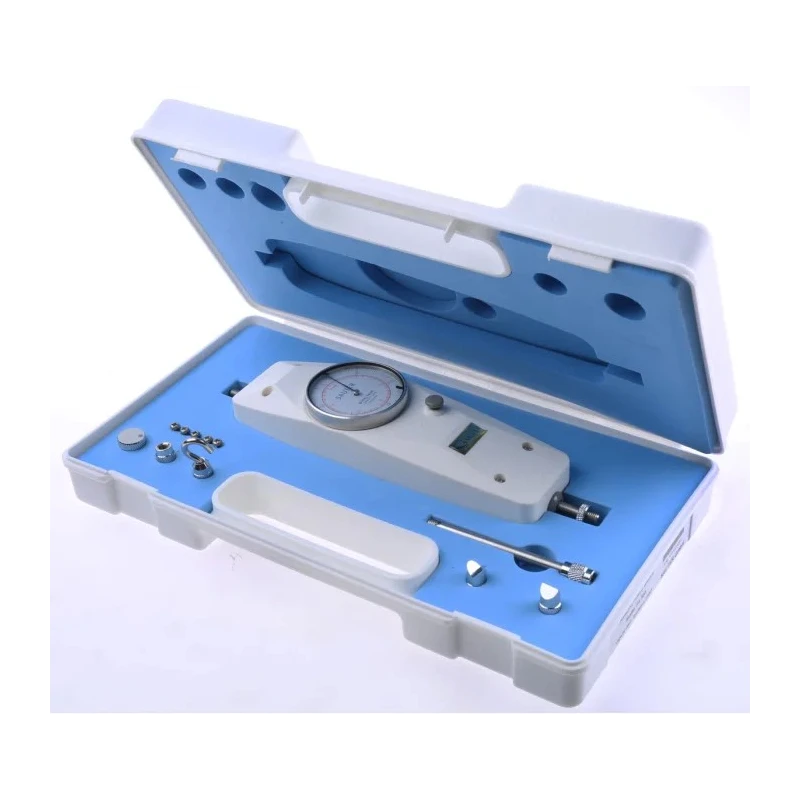

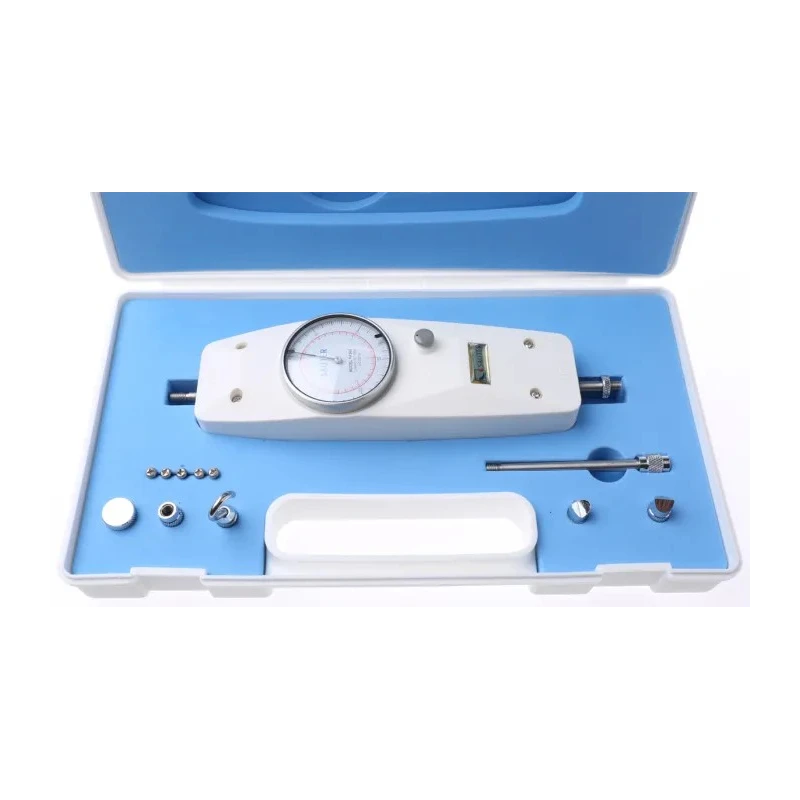

This force gauge is ideal for industrial manufacturing, quality control laboratories, material testing, and other applications requiring accurate force measurement. The included attachments and carry case enhance usability and portability. It supports users in maintaining precise testing parameters, improving product safety and compliance.
