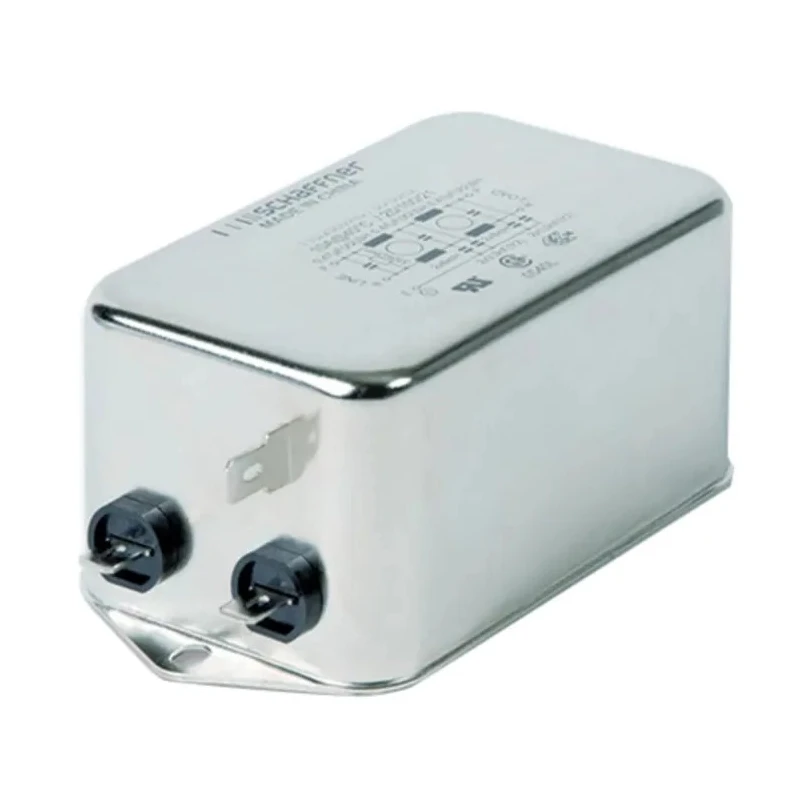

Schaffner 1-Phase Chassis Mount EMI Filter 10 A 250V AC/DC 0-400 Hz Fast-On Termination FN2090

Schaffner FN2090 is a high-performance 1-phase chassis mount EMI filter with a maximum current rating of 10 A and capable of handling voltages up to 250V AC/DC. It operates across an extensive frequency range from 0 Hz to 400 Hz and features fast-on termination connectors for quick installation.

This two-stage EMI filter incorporates an 8mH inductance and a resistance of 330kΩ to provide excellent differential and common-mode noise suppression. Its robust design supports an operating temperature range from -25°C to 100°C, making it suitable for demanding industrial and commercial applications.

The compact form factor with dimensions 57.5 mm (length) × 45.4 mm (height) × 113.5 mm (depth) allows for installation in diverse equipment including consumer goods, building automation systems, machinery, medical instruments, and electronic data communication devices.

Leakage current of 0.67mA ensures energy efficiency while minimizing interference with sensitive electronics. Designed for fast and secure chassis mounting in electrical and electronic equipment. Supports a maximum current of 10 A and voltage rating of 250V AC/DC.

Features two-stage filtering and an 8mH inductance for high attenuation. Operates efficiently between -25°C and 100°C for varied industrial environments. Compact dimensions of 57.5mm length, 45.4mm height, and 113.5mm depth.

Leakage current rated at 0.67mA ensuring minimal power loss. Termination style includes fast-on connectors for ease of installation. Commonly used in medical, automation, machinery, and communication equipment for noise suppression.

Manufactured in Thailand adhering to high-quality standards. Explore similar power line filters and EMI Filters for advanced noise reduction solutions at EnvMart, your trusted industrial components partner.
