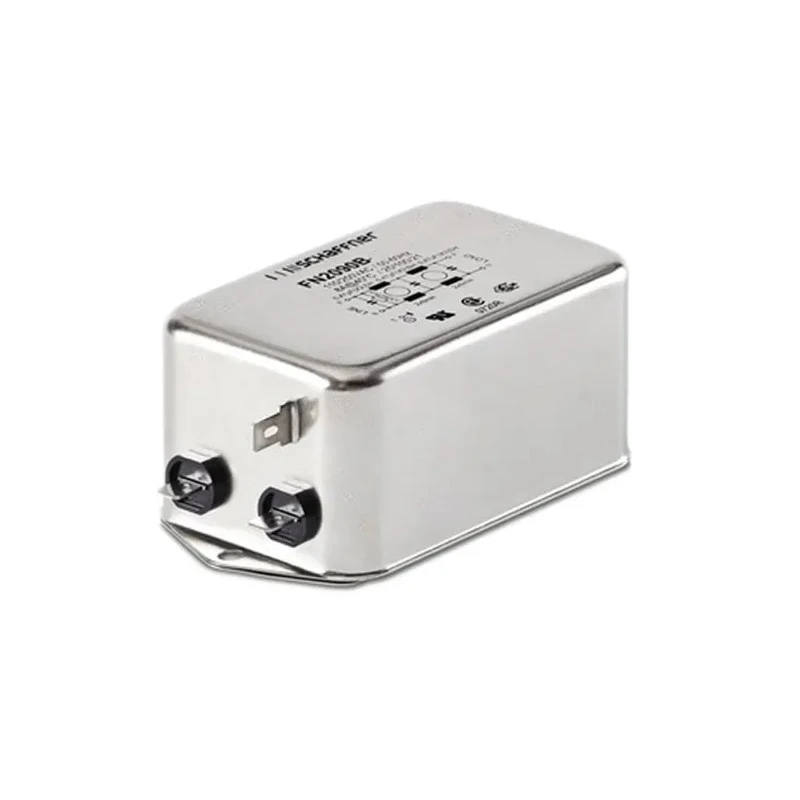

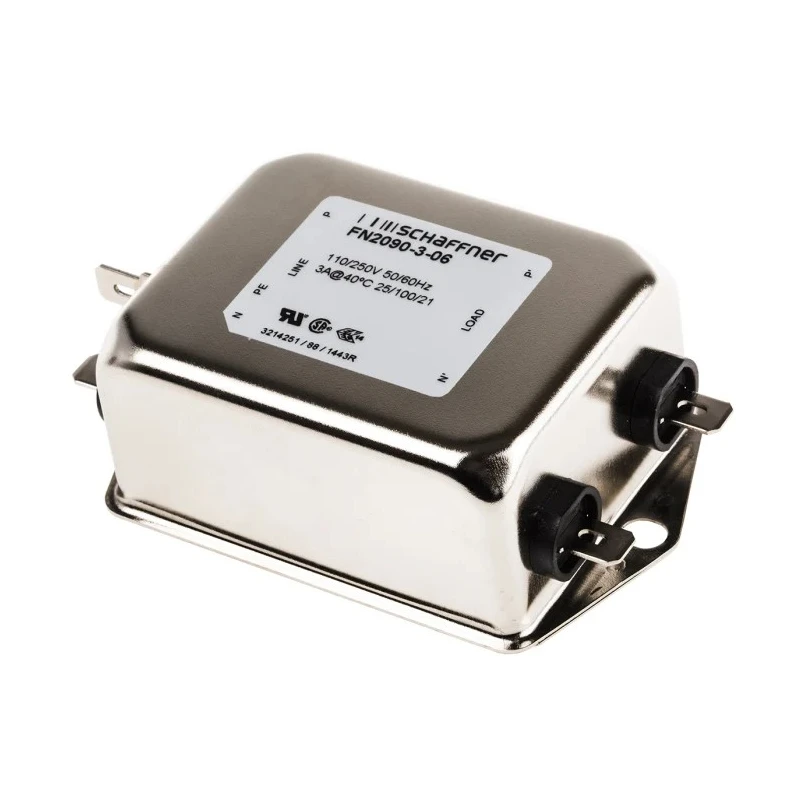

Schaffner Chassis Mount EMI Filter, 3A, 250V AC/DC, 0Hz - 400Hz, Fast-On 1 Phase FN2090

The Schaffner FN2090-3-06 EMI filter is a high-performance chassis-mounted filter engineered for use in equipment sensitive to electrical noise and interference. With a 3A maximum current rating and the ability to operate up to 250V AC/DC over a wide frequency range of 0Hz to 400Hz, this filter is ideal for modern electronic systems in industrial, consumer, and commercial environments.

This two-stage filter features exceptionally high attenuation for both differential and common-mode signals, making it suitable for power line filtering in noisy applications. Its fast-on terminals speed up installation while maintaining secure connections. A compact enclosure measuring 85mm in length, 54mm in depth, and 30.3mm in height allows for easy integration into control panels, automation systems, and medical equipment.

The FN2090 series is recognized for its reliability and is often used in electrical and electronic equipment, consumer appliances, building automation, industrial machinery, medical devices, electronic communication processing, and office automation. Optional versions offer overvoltage protection or enhanced safety for specific requirements.

Schaffner filters are engineered to minimize power loss and leakage current, with this model featuring a power loss of 3.7W and a leakage current of 500μA. The filter is designed to operate efficiently in environmental temperatures between -25°C and 100°C. Supporting fast and easy chassis mounting, the filter ensures effective EMI protection across a broad spectrum of applications.

Industrial uses include integration in equipment subject to line noise problems, sensitive industrial instrumentation, laboratory automation, and electronic data processing. The FN2090-3-06 enables compliance with electromagnetic compatibility requirements and facilitates smooth, reliable operation in demanding environments.

Designed for fast and easy chassis mounting for electrical and electronic equipment. Supports 3A maximum current and 250V AC/DC operational voltage for high flexibility. Offers very high differential and common-mode attenuation suitable for noisy environments.

Two-stage filter system for improved conductive attenuation performance. Operates from 0Hz to 400Hz making it compatible with a wide frequency range. Fast-On terminals ensure simple and secure electrical connections. Suitable for industrial, commercial, and household automation applications.

Compact dimensions: 85mm length, 54mm depth, 30.3mm height. Explore Schaffner EMI Filter solutions and related electronic components at EnvMart for precision, reliability, and compliance with stringent industry standards.
