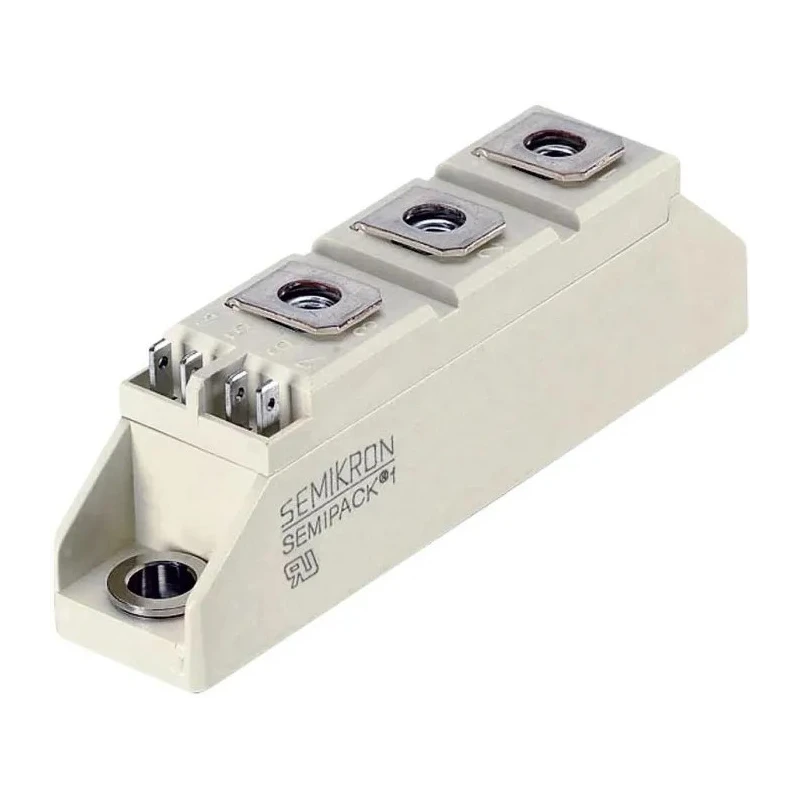

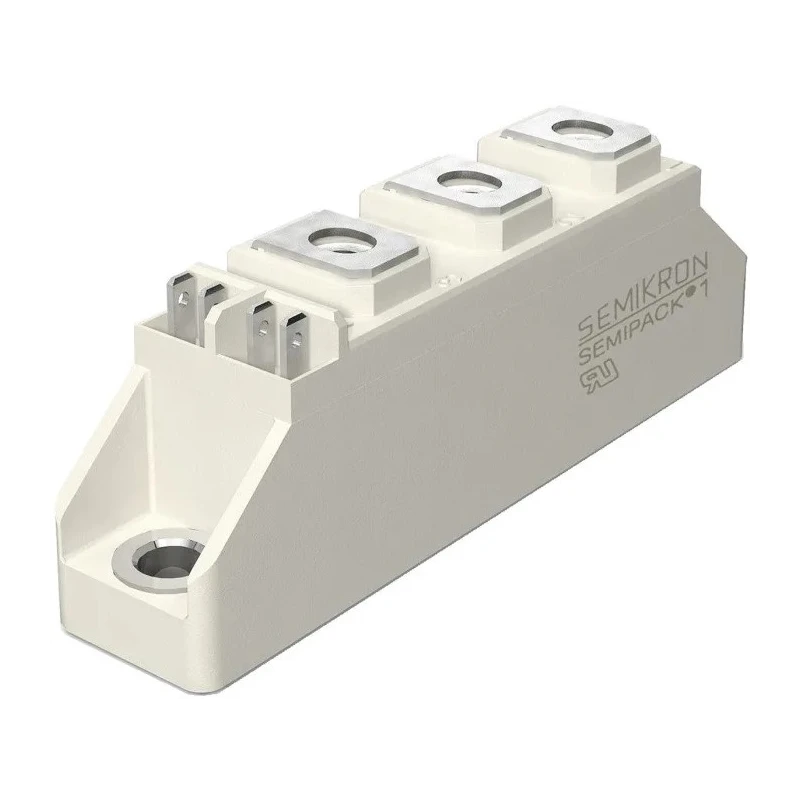

Semikron Danfoss Dual Thyristor Module 1200 V, 106 A, 150 mA Gate Trigger Current, 2.25 kA Surge Current SKKT 92/12 E

Semikron Danfoss SKKT 92/12 E Dual Thyristor Module is a high-performance power semiconductor device designed to act as a bistable switch using integrated silicon-controlled rectifiers (SCR). It features a rated average on-state current of 106 A and withstands a repetitive peak reverse voltage of 1200 V. The module's construction incorporates an electrically isolated base plate with a compact A-46 package, making it suitable for panel mounting.

Supporting a surge current of up to 2.25 kA, this dual thyristor module allows transient high current operations commonly encountered in industrial power systems. Its gate trigger characteristics include a maximum current of 150 mA and a voltage of 3 V, enabling controlled and reliable switching. The device efficiently conducts current with a peak on-state voltage of only 1.65 V, minimizing power losses.

Designed for operation across a wide temperature range from -40°C to 130°C, this module ensures durability and robustness in industrial environments. It is frequently applied in battery charging equipment, welding machines, regulated power supplies, and temperature and speed control circuits where precise power modulation is required.

Manufactured in Slovakia under the Semikron Danfoss brand, the SKKT 92/12 E module complies with UL recognition requirements, underpinning its quality and safety standards. The module's 7-pin count facilitates easy integration into circuit boards and power assemblies.

The module integrates dual SCRs for compact and efficient switching. Rated for a maximum surge current of 2.25 kA to handle transient loads. Panel mounting with an A-46 package type provides mechanical stability. Wide operating temperature range from -40°C to 130°C ensures versatility.

Low gate trigger voltage and current guarantee reliable activation.

This dual Thyristor Module is ideal for industrial, manufacturing, electrical supply systems, and heavy-duty control applications requiring solid-state switching solutions. It is part of the SKKT SEMIPACK 1 series known for performance and reliability.
