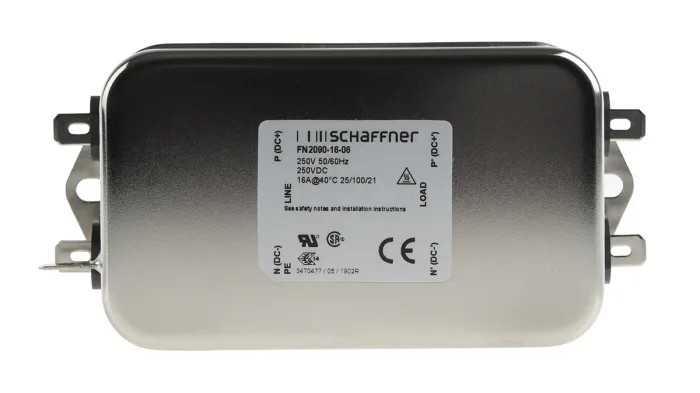

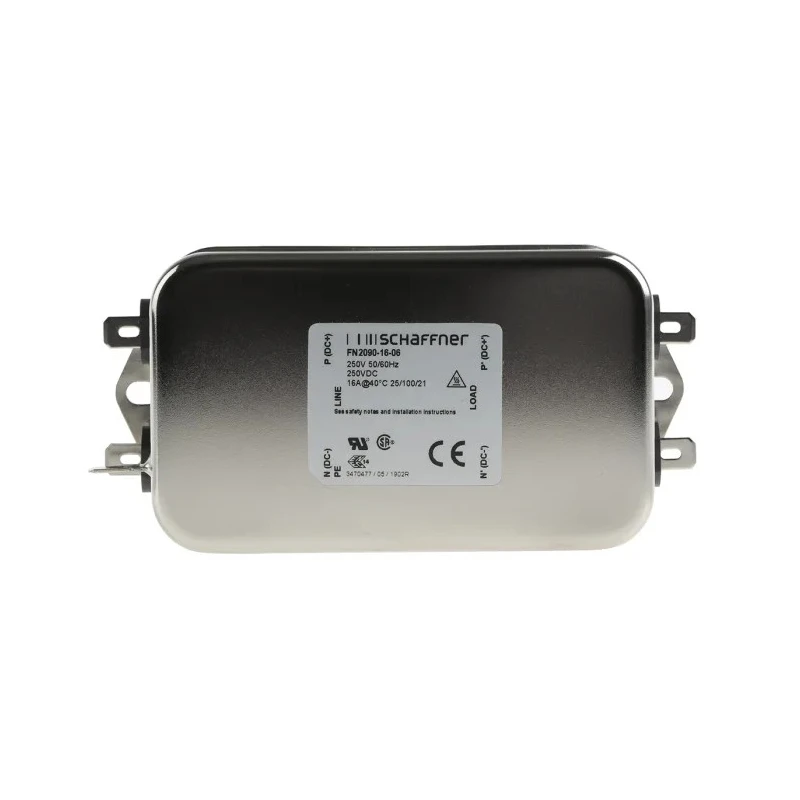

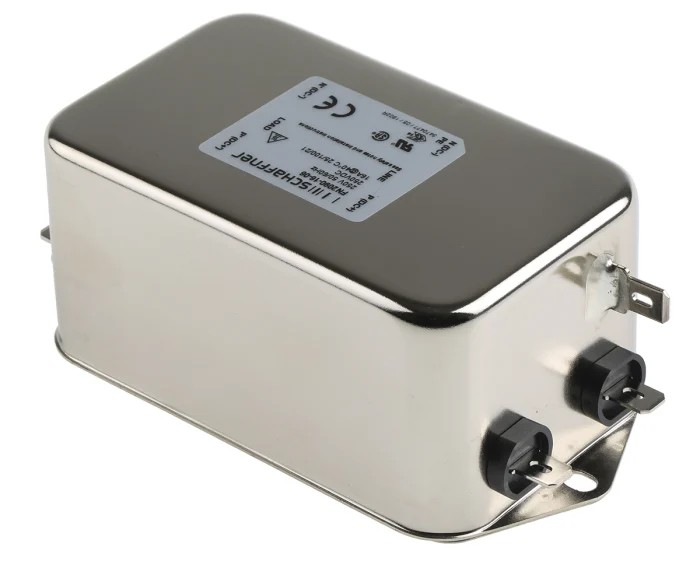

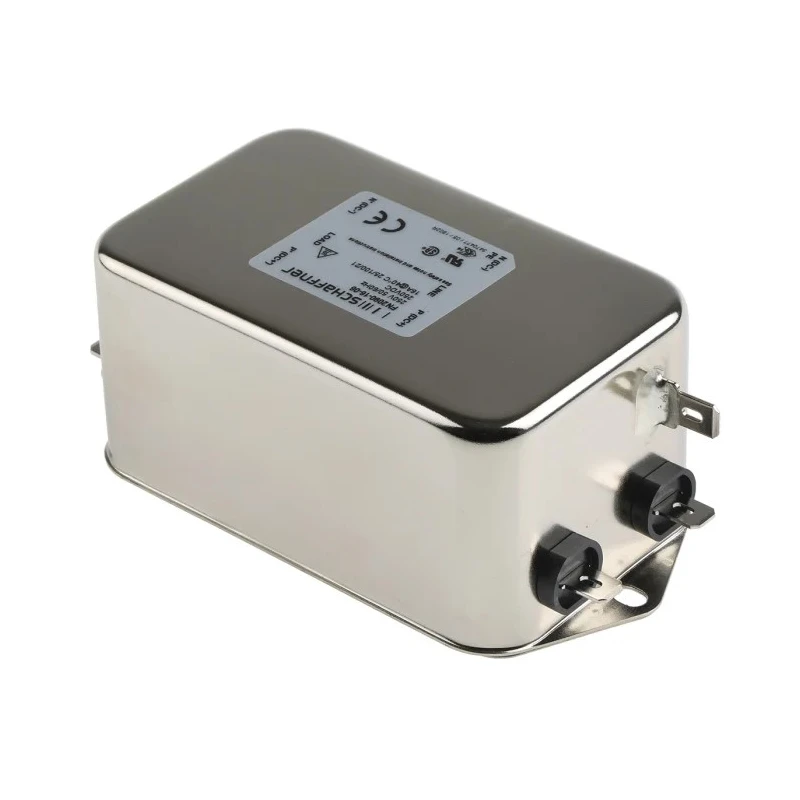

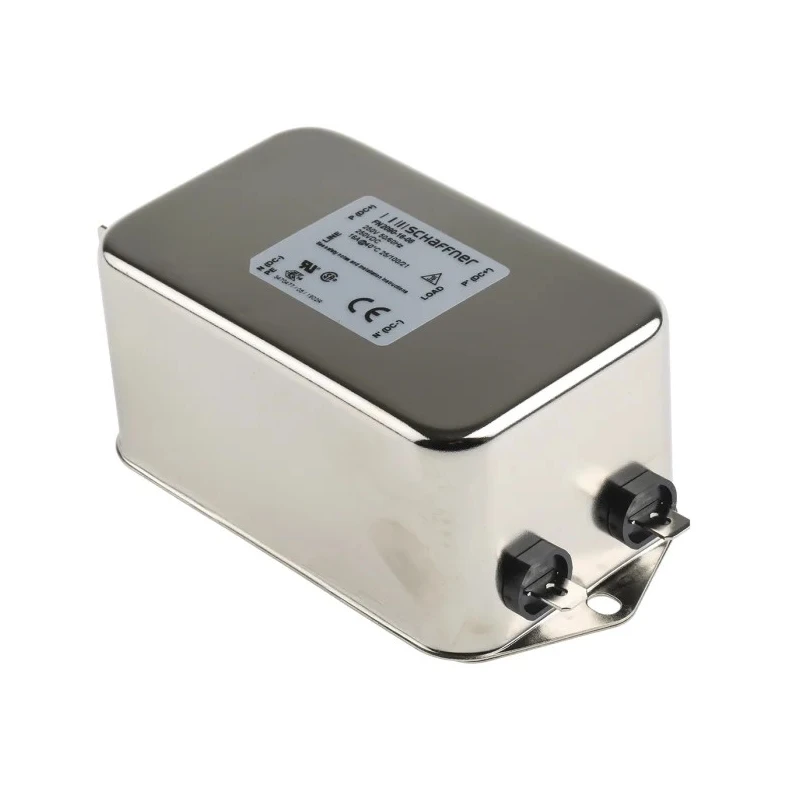

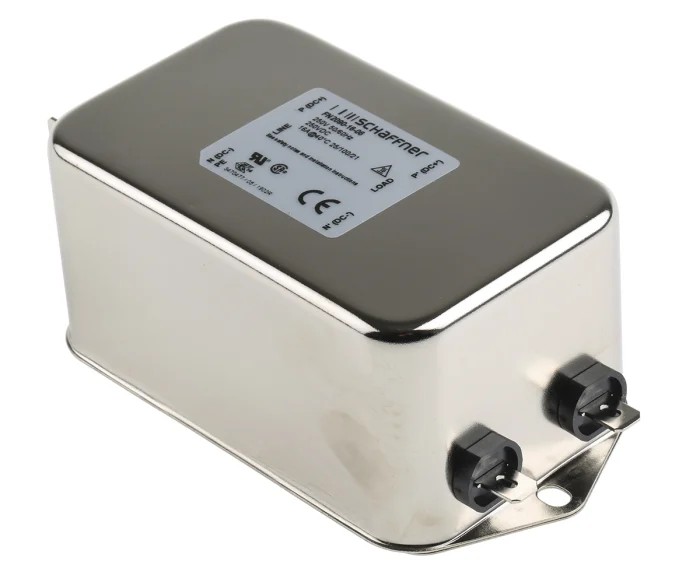

Schaffner 1-Phase Chassis Mount EMI Filter 16A 250V AC/DC 0Hz-400Hz Fast-On Termination FN2090

Schaffner FN2090 model represents a premium 1-phase chassis mount EMI filter designed to suppress electromagnetic interference in sensitive electronic and electrical equipment. Rated for a maximum current of 16A and voltage of 250V AC/DC, it supports operating frequencies from 0 to 400 Hz, making it ideal for various industrial and medical applications.

The filter features a two-stage design which achieves very high differential and common-mode attenuation, enhancing its effectiveness in noisy environments. The capacitance of 10nF and inductance of 4mH provide precise filtering characteristics to maintain equipment performance and safety.

Constructed for chassis mounting with fast-on termination style, the FN2090 allows quick and secure installation in electrical panels. With dimensions of 57.5mm length, 113.5mm depth, and 45.4mm height, it fits compactly into constrained spaces.

The filter operates reliably across a broad temperature range from -25°C to 100°C and has a power loss rating of only 10.7W. Leakage current is low at 1.02mA, contributing to energy efficiency and component longevity. Resistance of 220kΩ further supports stable electrical performance.

Manufactured in Thailand, this EMI filter meets the demands of applications including electrical and electronic equipment, consumer goods, household appliances, building automation, machinery, medical devices, electronic data processing, and office automation industries.

Schaffner FN2090 is recognized for its quality and reliability, making it an excellent choice for EMI suppression in various sectors. This product ensures compliance with EMC requirements, reducing interference and improving signal integrity.

Designed for chassis mounting with fast-on termination for easy installation. Supports maximum current of 16 amperes and voltage of 250V AC/DC. Features a 2-stage filtering system for enhanced noise attenuation. Operates efficiently in temperature range from -25°C to 100°C.

Includes capacitance of 10nF and inductance of 4mH for optimal filtering. Withstands resistance of 220kΩ and has low power loss of 10.7W. Leakage current is minimal at 1.02mA ensuring reliability. Dimensions are 57.5mm length, 113.5mm depth, and 45.4mm height for compact chassis integration.

Made in Thailand with robust quality standards. Suitable for industrial, medical, automation, and electronic equipment requiring EMI suppression.

For users seeking reliable EMI filters for industrial, laboratory, construction, or medical applications, the Schaffner FN2090 series provides an outstanding solution. Explore more EMI Filters and related components in the Electronics Components section on EnvMart.
