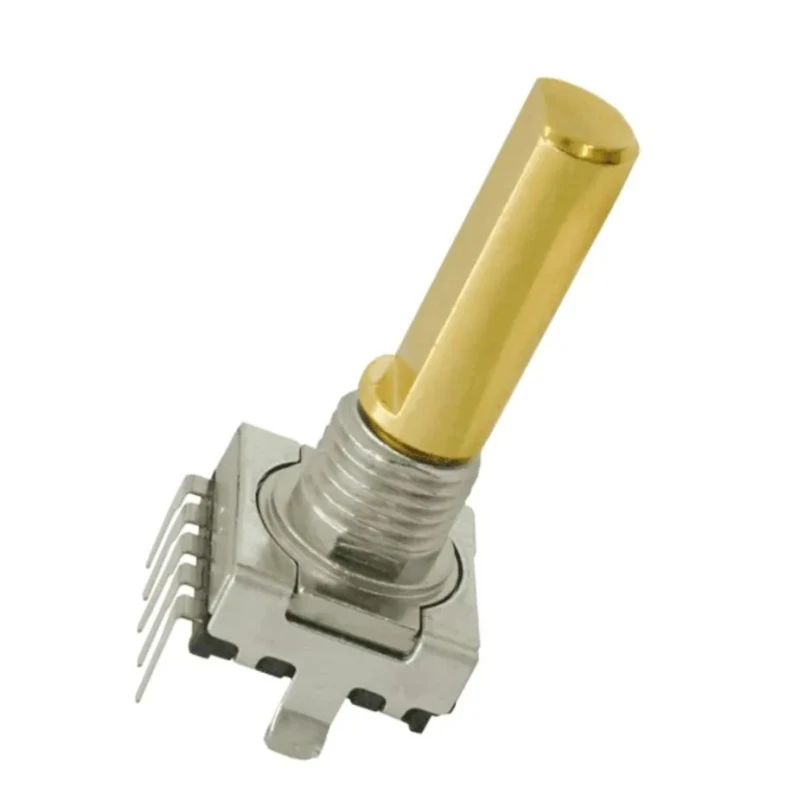

Elma 8 ppr Pulse 2 Bit Quadrature Mechanical Rotary Encoder with 6 mm Slotted Shaft E33-VT622-M01T

Elma E33-VT622-M01T mechanical rotary encoder is designed for accurate position and speed sensing in industrial and electronic applications. This encoder delivers 8 pulses per revolution with 2 Bit Quadrature digital output signals, enabling precise incremental positioning. Engineered with a 6 mm slotted shaft and a 16 mm shaft length, it ensures easy integration into mechanical assemblies.

The encoder features a robust metal housing that provides mechanical protection, while the slotted shaft and gold plated contacts enhance signal integrity and reduce wear. Its horizontal mounting configuration and dual IP68 sealing on the shaft and front panel offer exceptional resistance against dust ingress and water, making it suitable for demanding industrial environments.

It incorporates a pushbutton with a 6N actuation force, expanding its functionality for controls requiring manual input. The maximum operating speed is limited to 60 rpm, ideal for applications where precise low-speed rotation monitoring is critical. Electrical connections are made via pin terminations, ensuring reliable and secure contacts within control systems.

Designed to operate reliably across a temperature range from -40 to +85 degrees Celsius, this rotary encoder is suitable for various industrial, manufacturing, and automation settings. It has a low current rating of 10 mA, facilitating compatibility with sensitive electronic equipment while complying with RoHS standards to meet environmental and safety requirements.

Mechanical encoder features a resolution of 16 detent positions for precise rotation measurement. Includes a pushbutton function activated with a 6N push force for additional control. Horizontal mounting and an IP68 environmental seal ensure durability and protection against dust and water.

Gold plated contacts provide reliable signal quality and long-term stability. Robust metal housing and shaft enhance mechanical strength and longevity. Maximum operating speed of 60 rpm suitable for low-speed rotational applications.

Termination via pins enables easy and secure electrical connection. Operating temperature range from -40°C to +85°C accommodates harsh environments. Current rating of 10 mA supports low power consumption and compatibility with control circuits.

Certified to RoHS standards ensuring compliance with environmental regulations.

This mechanical rotary encoder is ideal for industrial automation, robotics, motor feedback, instrumentation, and control systems requiring precise rotational feedback and robust environmental protection. Explore more products in the Mechanical Rotary Encoder category at EnvMart for all your sensor and automation needs.
