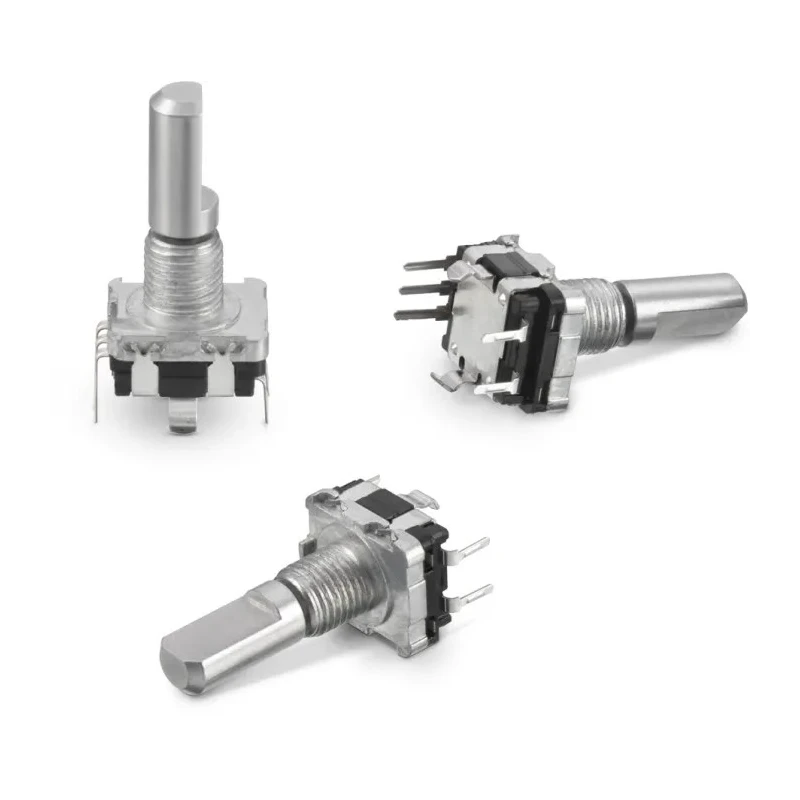

Wurth Elektronik 8 ppr Pulse Incremental Mechanical Rotary Encoder with 6 mm Flat Shaft, Through Hole 482009514001

Wurth Elektronik 482009514001 is a mechanical incremental rotary encoder designed for precision motion detection applications. This encoder provides a pulse output of 8 pulses per revolution (ppr), delivering accurate incremental position feedback in a compact form factor.

It features a 6 mm flat shaft with a length of 20 mm, ideal for integration with shafts requiring flat key engagement. The through hole mounting design allows for straightforward installation in various electronic and mechanical systems, ensuring robust and reliable fixation.

The encoder operates with a quadrature code signal, enabling precise and incremental position sensing used widely in industrial automation, robotics, and instrumentation. Terminated with a PC pin, it is optimized for direct printed circuit board mounting, facilitating simple integration into custom electronics assemblies.

Designed according to REACH and RoHS compliance, this unit meets environmental and safety standards for electronic components. It supports a current rating of 10 mA, making it suitable for low power systems.

The WS-ENTV series encoder is produced in Taiwan, Province Of China, representing quality manufacturing standards. Provides 8 pulses per revolution for precise incremental feedback. 6 mm flat shaft with 20 mm length for secure mechanical coupling.

Through hole mounting type ensures stable installation integration. Quadrature code encoder signal for accurate position detection. PC pin termination style for easy PCB connection. REACH and RoHS compliant for environmental safety.

Low current rating of 10 mA ensures energy efficiency. Mounting hole diameter of 0.15 mm for secure fitting. WS-ENTV series designed for durability in industrial applications. Manufactured in Taiwan, Province Of China, ensuring quality.

This encoder is ideal for industrial machinery requiring precise rotational measurement, robotics, automated manufacturing systems, and instrumentation devices. Integrate the Wurth Elektronik 482009514001 rotary encoder to enhance control precision and system reliability.
