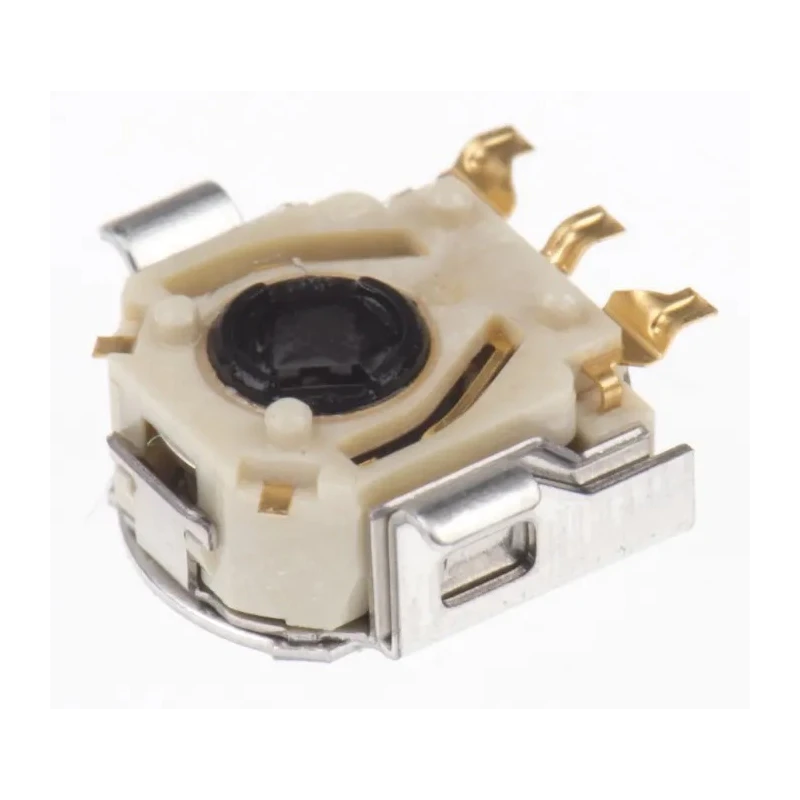

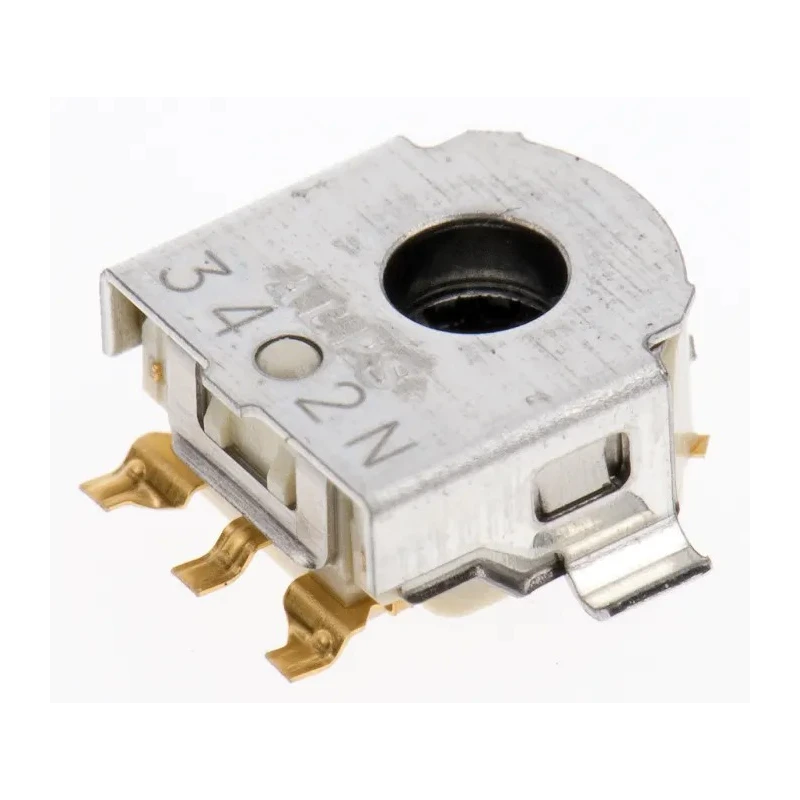

Alps Alpine 12 ppr Pulse Incremental Mechanical Rotary Encoder with 2.2 mm Hollow Shaft, Bracket Mount EC05E1220401
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Alps Alpine |
| Model | EC05E1220401 |
| Mount Type | Bracket Mount, Surface |
| Current Rating | 0.55mA |
| Series | EC05E |
| Shaft Diameter | 2.2mm |
| Pulses per Revolution | 12ppr |
| Standards/Approvals | RoHS |
| Termination Style | PC Board Mounting |
| Mounting Hole Diameter | 0.62 mm |
| Shaft Style | Hollow Shaft |
| Encoder Reading | Incremental |
| Index Output | Not Indexed |
Key Features
- Compact design from the EC05E series featuring Alps DRUMCODE™ technology.
- Provides incremental encoder reading with not indexed output.
- Operates typically at 5 Vdc with a low current rating of 0.55 mA.
- Bracket mount type allowing surface mounting with 0.62 mm mounting holes.
- RoHS compliant with a long operating life of 100,000 cycles.
- Operating temperature range from -30 to +85 degrees Celsius for varied environments.
- Ideal for precise position sensing in industrial and electronic applications.
- Manufactured in Japan ensuring high quality and reliability.
Product Description
Alps Alpine EC05E1220401 Mechanical Rotary Encoder is a compact and reliable sensor device designed for rotational position sensing with a 2.2 mm hollow shaft and a bracket mounting option.
This incremental rotary encoder features 12 pulses per revolution that allow accurate feedback for motor control and automation systems.
Employing Alps DRUMCODE™ technology, the EC05E series improves pulse signal quality and device durability, making it suitable for demanding industrial and electronics applications.
The encoder operates on a typical 5 Vdc power supply, drawing a minimal current of 0.55 mA, enhancing energy efficiency in equipment. Its bracket mounting with 0.62 mm holes enables secure installation in various mechanical assemblies.
The device complies with RoHS standards, guaranteeing environmentally safe manufacturing practices. Designed for an operating temperature range of -30 to +85 °C, the encoder reliably performs in diverse operating conditions.
Compact design from the EC05E series featuring Alps DRUMCODE™ technology. Provides incremental encoder reading with not indexed output. Operates typically at 5 Vdc with a low current rating of 0.55 mA. Bracket mount type allowing surface mounting with 0.62 mm mounting holes.
RoHS compliant with a long operating life of 100,000 cycles. Operating temperature range from -30 to +85 degrees Celsius for varied environments. Manufactured in Japan ensuring high quality and reliability. This mechanical rotary encoder is widely applicable in industrial automation, robotics, electronic instrumentation, HVAC systems, and precision manufacturing processes.
Discover additional Alps Alpine products and similar Mechanical Rotary Encoders at EnvMart to enhance your sensor and control projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The encoder provides 12 pulses per revolution, allowing for accurate feedback in motor control and automation systems.
It operates typically at 5 Vdc with a low current rating of 0.55 mA, enhancing energy efficiency in equipment.
The operating temperature range is from -30 to +85 degrees Celsius, making it suitable for varied environments.
This model features a bracket mount type that allows for surface mounting with 0.62 mm mounting holes.
It has a 2.2 mm hollow shaft, designed for ease of integration into mechanical assemblies.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing practices.
It has a long operating life of 100,000 cycles, suitable for demanding applications.
The encoder provides an incremental reading with a not indexed output.
It is widely applicable in industrial automation, robotics, electronic instrumentation, HVAC systems, and precision manufacturing processes.
The termination style is PC board mounting, facilitating easy integration into electronic systems.
This model is part of the EC05E series, which features Alps DRUMCODE™ technology for improved pulse signal quality.
It is manufactured in Japan, ensuring high quality and reliability in its performance.
