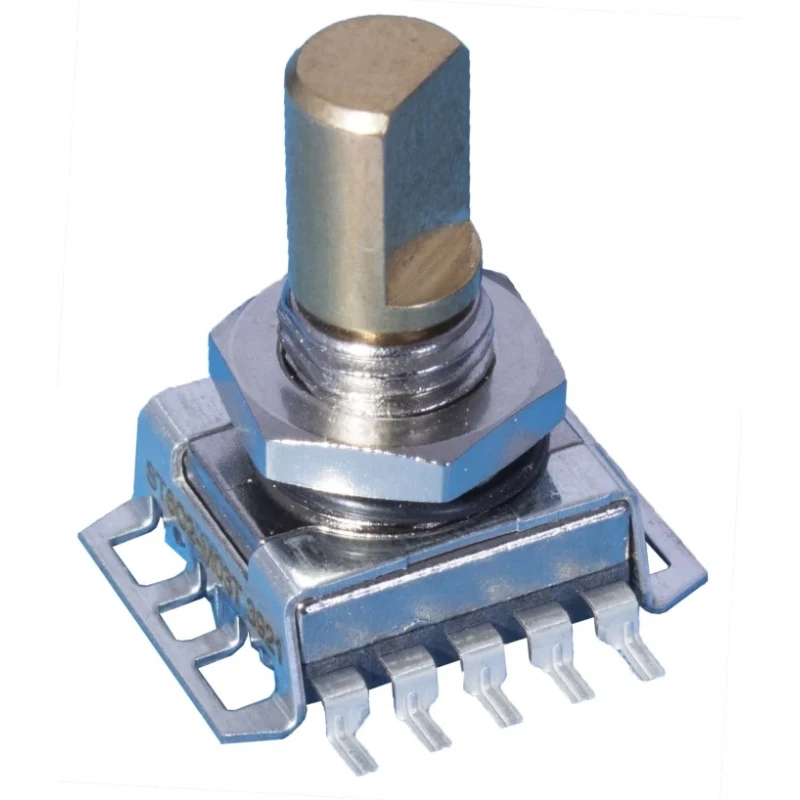

Elma Mechanical Rotary Encoder 8 ppr Pulse 2 Bit Quadrature Digital Square Wave 6 mm Slotted Shaft E33-ST622-M01T

Elma E33-ST622-M01T Mechanical Rotary Encoder delivers precise shaft position feedback through an 8 pulses per revolution (ppr) output combined with 2-bit quadrature digital square wave signals. This encoder is designed with a 6 mm slotted metal shaft and a 16 mm shaft length, allowing flexible installation options in various industrial applications.

The encoder supports a maximum operating speed of 60 rpm and includes pin-style termination for efficient electrical connectivity. Its robust metal housing and shaft construction guarantee mechanical durability, suitable for challenging environments.

Environmental sealing to IP68 provides excellent protection on both the shaft and front panel against dust, dirt, and water ingress. The encoder incorporates gold-plated contacts to maintain reliable and long-lasting electrical connections. Operating temperature ranges from -40 to +85 °C, making it ideal for demanding industrial, manufacturing, and machinery control systems.

This model also features RoHS compliance, ensuring it meets important environmental safety standards. 8 pulses per revolution for high-resolution rotary encoding. 6 mm slotted shaft with 16 mm length for varied mounting applications.

Maximum operating speed of 60 rpm suitable for moderate speed controls. 2-bit quadrature digital square wave output enabling precise incremental position measurement. Gold-plated contacts for enhanced electrical reliability.

Robust metal housing ensuring mechanical protection and durability. IP68 sealing for effective environmental resistance. Wide operating temperature range from -40 °C to +85 °C. Pin termination style for straightforward electrical connections.

RoHS certified ensuring compliance with environmental directives.

This mechanical rotary encoder is well-suited for use in industrial automation systems, precision machinery, manufacturing processes, and environments requiring reliable and accurate shaft position sensing.
