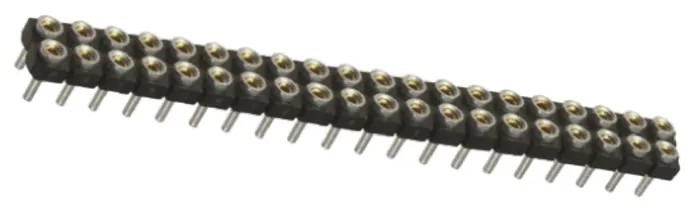

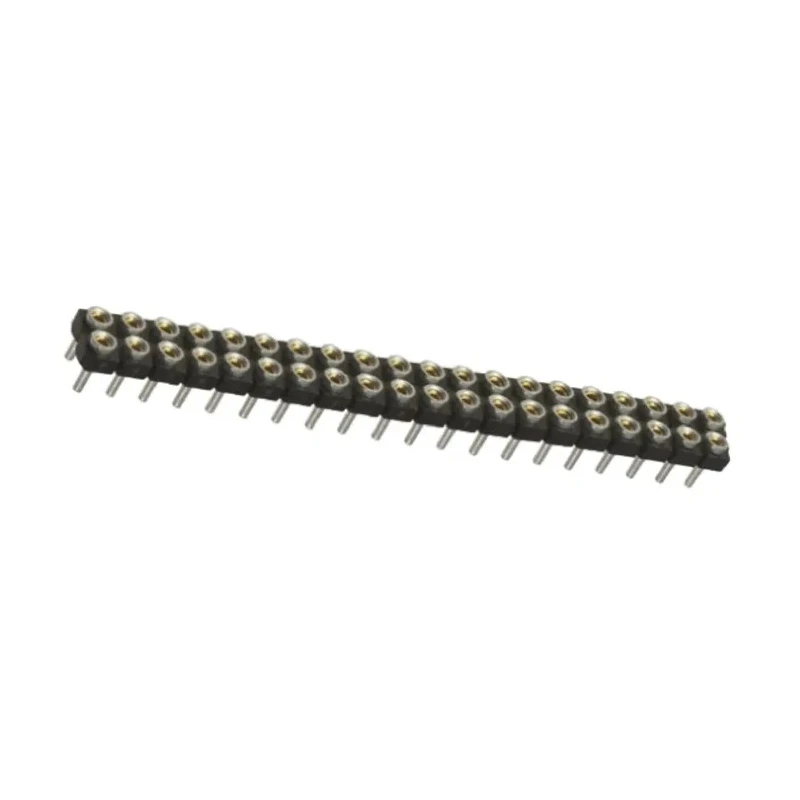

Samtec SDL Series Straight Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch, 12A Current, Through Hole SDL-120-T-10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | SDL-120-T-10 |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Beryllium Copper Alloy |
| Series | SDL |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Connector System | Board-to-Board |
| Stacking Height | 3.89mm |
Key Features
- Constructed with black glass filled polyester housing for durability and high performance.
- Contacts made of beryllium copper alloy with gold plating for reliable electrical conductivity.
- Through hole mounting with straight orientation for easy PCB integration.
- Rated to operate in temperatures between -55°C and 125°C.
- Low profile design with a 3.89 mm stacking height for compact assembly.
- Compatible with TD series header terminal strips for versatile board-to-board solutions.
- Suitable for industrial and electronic manufacturing applications requiring robust connectors.
- Ideal for PCB sockets requiring machined, double-row configuration with 2.54 mm pitch spacing.
Product Description
Samtec SDL-120-T-10 is a high-quality, low profile straight through hole PCB socket designed for board-to-board connections. This 40-contact, double row socket features a 2.54 mm pitch and is rated for a current of 12 amperes. The housing is made from durable black glass filled polyester, ensuring mechanical stability and resistance to industrial conditions.
Contacts are fabricated from beryllium copper alloy with gold plating, providing excellent conductivity and corrosion resistance. The socket's termination type is solder, suitable for secure PCB mounting. It features a stacking height of 3.89 mm and a straight orientation for effective alignment with mating components.
Operating temperature ranges from -55°C to +125°C, making it suitable for various industrial, electronic, manufacturing, and HVAC applications. The product is series SDL of Samtec, a well-known brand in electronic connectors, assuring quality and reliability.
These board-to-board machined socket strips mate with TD series header terminal strips, enabling flexible architectural designs for PCB assemblies. The product is particularly useful for low profile, double row socket needs in industrial and laboratory environments.
Durable black glass filled polyester housing for mechanical stability. Beryllium copper alloy contacts with gold plating for superior conductivity. Rated current of 12 amperes, appropriate for high-demand electronic applications.
2.54 mm pitch and 3.89 mm stacking height accommodate precise PCB layouts. Operating temperature range from -55°C to 125°C for a wide variety of environments. Solder termination type for secure PCB mounting. Compatible with TD series header terminal strips for enhanced system integration.
Ideal for industrial, manufacturing, laboratory, and HVAC applications requiring reliable PCB sockets. Explore our range of PCB Sockets at EnvMart for trusted quality and performance in your electronic assembly projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SDL-120-T-10 PCB socket is rated for a current of 12 amperes.
This model features a pitch of 2.54 mm, suitable for precise PCB layouts.
The housing is made from black glass filled polyester, while the contacts are fabricated from beryllium copper alloy with gold plating for reliable conductivity.
The stacking height of this socket is 3.89 mm, allowing for compact assembly.
It operates within a temperature range of -55°C to +125°C, making it suitable for various environments.
This PCB socket has a total of 40 contacts arranged in 2 rows.
The SDL-120-T-10 uses solder termination for secure PCB mounting.
Yes, it is compatible with TD series header terminal strips for enhanced board-to-board connections.
It supports through hole mounting, which facilitates easy integration into PCBs.
This socket is suitable for industrial, electronic manufacturing, laboratory, and HVAC applications requiring robust connectors.
The connector system type for the SDL-120-T-10 is board-to-board, designed for effective alignment with mating components.
The country of origin for this product is India.
