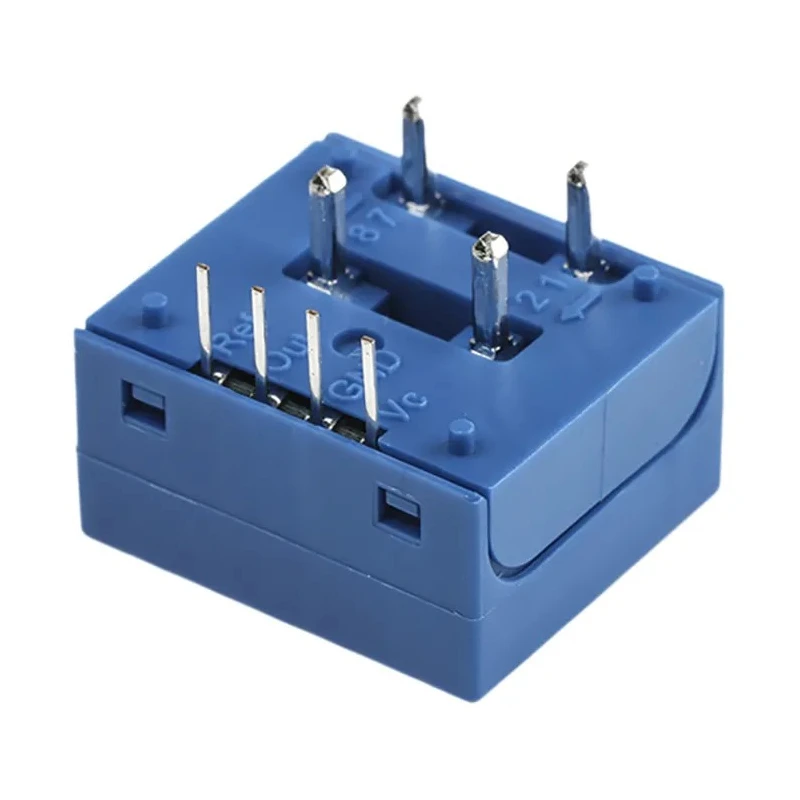

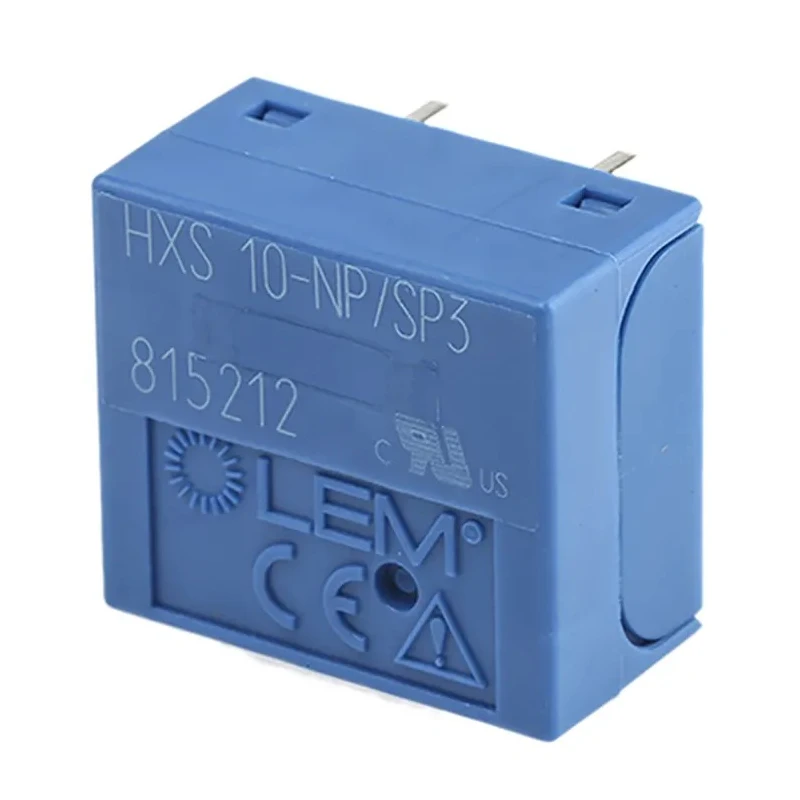

LEM Current Transformer HXS Series 60A 5V PCB Mounting Hall Effect Sensor HXS 10-NP/SP3

LEM HXS 10-NP/SP3 is a high-performance current transformer from the HXS Series, designed for PCB mounting with a compact, low-profile format. This Hall Effect sensor operates at 5V supply voltage and can measure currents up to 60A, covering AC, DC, and mixed current applications.

Its proprietary ASIC technology ensures precise, unipolar current measurement while maintaining extremely low power consumption. The device is engineered for an operating temperature range of -40°C to 85°C, making it suitable for harsh industrial environments requiring reliable current sensing.

The current transformer features integral primary and operates efficiently from a frequency as low as 50kHz, ensuring responsive and stable performance across various industrial automation, process control, and electrical equipment monitoring applications.

Designed in compliance with CE, EN 50178: 1997, and IEC 61010-1, this product meets strict international standards for safety and electromagnetic compatibility. Its compact form factor with dimensions of 18.7mm depth, 16.7mm width, and 14.2mm length allows for flexible PCB integration in confined spaces.

Terminal connections are made via wire terminals facilitating easy installation and integration in complex assemblies. With a lightweight construction of 10 grams, it suits various industrial monitoring systems where weight and space constraints exist.

The sensor features extremely low power consumption and a low profile design. Operating temperature range is -40°C to 85°C, suitable for industrial applications. Offers integral primary and high frequency operation starting from 50kHz.

Complies with CE, EN 50178: 1997, and IEC 61010-1 standards. Compact dimensions: 18.7mm depth, 16.7mm width, and 14.2mm length. Terminal type is wire, optimizing installation flexibility. Provides accurate current sensing in automated and process control environments.

This LEM Current Transformer is ideal for industrial, manufacturing, automation, process control, and electrical monitoring applications. It combines accuracy and reliability to support advanced system diagnostics and performance optimization.
