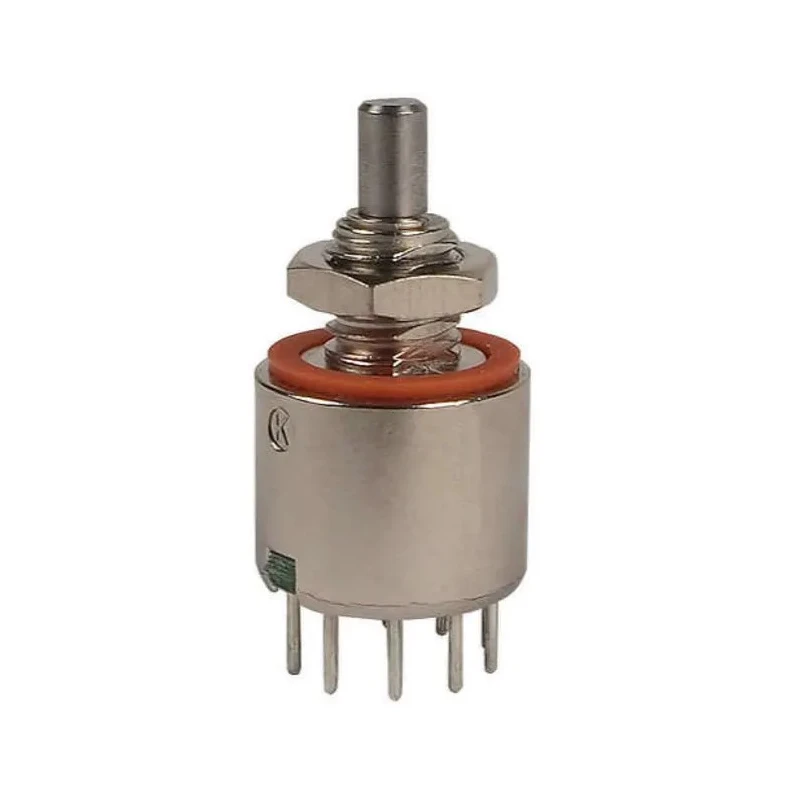

Elma 12 Position SPST Rotary Selector Switch, 200mA, PCB Terminal MR50

Free Delivery in India | Lowest Global Shipping Charges

Elma 12 Position SPST Rotary Selector Switch, 200mA, PCB Terminal MR50

Name: Elma 12 Position SPST Rotary Selector Switch, 200mA, PCB Terminal MR50
Brand: Elma
SKU: 171527
Price: 64.03 USD
Availability: InStock



Category Rotary Switches Brand Elma Condition New

Specifications

Country of Origin	India
Diameter	12.7mm
Brand	Elma
Height	12.7mm
Model	MR50
Depth	14.56mm
IP Rating	IP68
Width	12.7mm
Mount Type	Panel
Housing Material	Die Cast Zinc
Series	MR50
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Number of Positions	12
Switch Configuration	On-On
Minimum Operating Temperature	-45°C
Terminal type	PCB Terminal
Maximum dc Voltage	28V dc
Number of Poles	1
Standards/Approvals	UL, RoHS, ELV
Actuator Colour	Silver
Switch Contact Current	200mA
Mechanical Life	20000Cycles
Angle of Throw	30 °

Key Features

This rotary switch offers 12 distinct switch positions.
The switch features SPST contact configuration for single-pole single-throw operation.
Compact die cast zinc housing ensures durability and ruggedness.
Designed to operate between -45°C and 85°C temperature range.
The device is rated for a maximum DC voltage of 28V and is panel mountable.
IP68 front panel sealing offers excellent protection against dust and water ingress.
Switch actuator is silver in color with a compact 12.7mm diameter and height.
The switch lifespan extends up to 20,000 mechanical cycles.

Product Description

Elma MR50 is a precision 12-position SPST rotary selector switch engineered for reliable operation in demanding industrial and electronic applications. Featuring a robust die cast zinc housing, this compact switch measures 12.7mm in diameter and height, making it suitable for space-constrained PCB panel installations.

Rated to switch currents up to 200mA and maximum DC voltage of 28V, the MR50 switch provides effective single-pole single-throw (SPST) contact configuration with on-on switch positions, allowing for 12 unique selections. The switch offers mechanical longevity of 20,000 cycles and operates reliably in temperatures from -45°C to 85°C.

Its mounting is designed for panel integration, with IP68 front panel sealing providing industrial-grade environmental protection against dust and water exposure, making it ideal for outdoor and rugged conditions. The silver actuator and gold-plated contacts ensure efficient and low-resistance switching. The switch also complies with UL, RoHS, and ELV standards.

Typical applications include use in communication equipment, outdoor mobile devices, motorsport systems, aviation, military systems, and precision testing equipment. The combination of compact form factor, robustness, and environmental sealing makes the MR50 suitable for industrial, laboratory, and commercial electronics where reliable position switching is critical.

This rotary switch offers 12 distinct switch positions. The switch features SPST contact configuration for single-pole single-throw operation. Compact die cast zinc housing ensures durability and ruggedness. Designed to operate between -45°C and 85°C temperature range.

The device is rated for a maximum DC voltage of 28V and is panel mountable. IP68 front panel sealing offers excellent protection against dust and water ingress. Switch actuator is silver in color with a compact 12.7mm diameter and height.

The switch lifespan extends up to 20,000 mechanical cycles. Ideal for communication equipment, motorsport, aviation, military systems, and precision test equipment. Explore our comprehensive range of Rotary Switches and electrical components at EnvMart for precision and reliability in your industrial projects.
