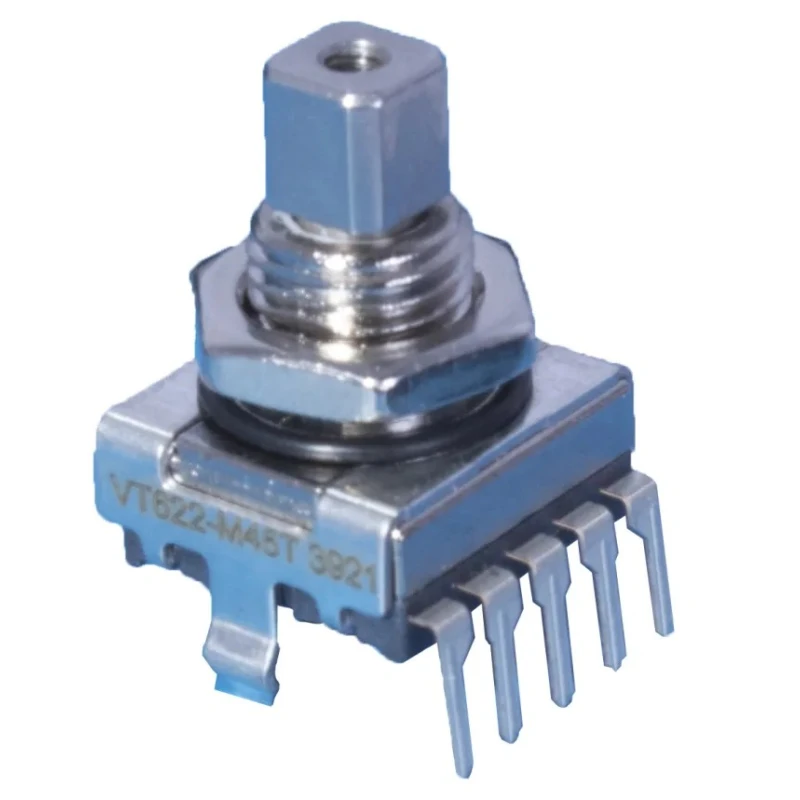

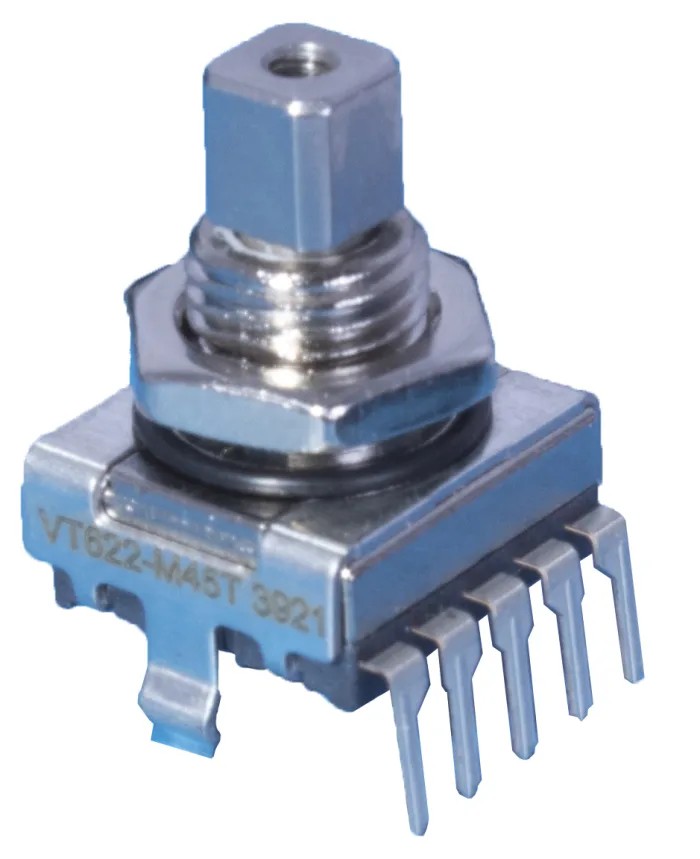

Elma 8 ppr Pulse 2 Bit Quadrature Mechanical Rotary Encoder with 6 mm Slotted Shaft E33-VT622-M45T

Elma E33-VT622-M45T is a high-quality mechanical rotary encoder designed for accurate position sensing in industrial and electronic applications. It features 8 pulses per revolution (ppr) and a 2 Bit Quadrature digital square wave encoder signal output. The encoder's rugged metal housing and shaft with a 6 mm diameter slotted design provide durability and precise mechanical coupling.

The E33 series mechanical rotary encoder offers a 5 mm long slotted shaft and pin-style termination for straightforward installation in control systems. It supports a maximum operating speed of 60 rpm, making it suited for moderate-speed rotary position measurements.

This encoder includes a pushbutton actuated with a 6N push force, enabling additional control functions. The device is environmentally sealed to IP68 standards on both the shaft and front panel, protecting against dust and water ingress. It complies with RoHS directives, assuring environmentally safe manufacturing practices.

Notable features include gold plated contacts for consistent electrical performance and no detent torque up to 4.5 Ncm, ensuring smooth rotation with reliable switching torque during its operational life of up to 1,000,000 revolutions. The operating temperature range of -40 to +85 degrees Celsius allows usage in harsh industrial environments.

This mechanical rotary encoder is ideal for industrial automation, instrumentation, and control systems requiring precise angular feedback. Its mounting options and robust construction make it suitable for applications in machinery, robotics, and process control setups.

Mechanical encoder with 2 Bit Quadrature digital square wave output. Slotted shaft design with a diameter of 6 mm and length of 5 mm. Maximum operating speed of 60 rpm for reliable performance. Features a pin termination style with robust metal housing.

Complies with RoHS standards ensuring environmental safety. Includes a pushbutton function requiring 6N activation force. Sealed to IP68 rating for protection against dust and water ingress. Operating temperature range from -40 to +85 °C for versatile environments.

Gold plated contacts and long rotational life up to 1,000,000 revolutions. Explore the comprehensive range of Mechanical Rotary Encoders and precision sensors available at EnvMart for all your industrial and electronic component needs.
