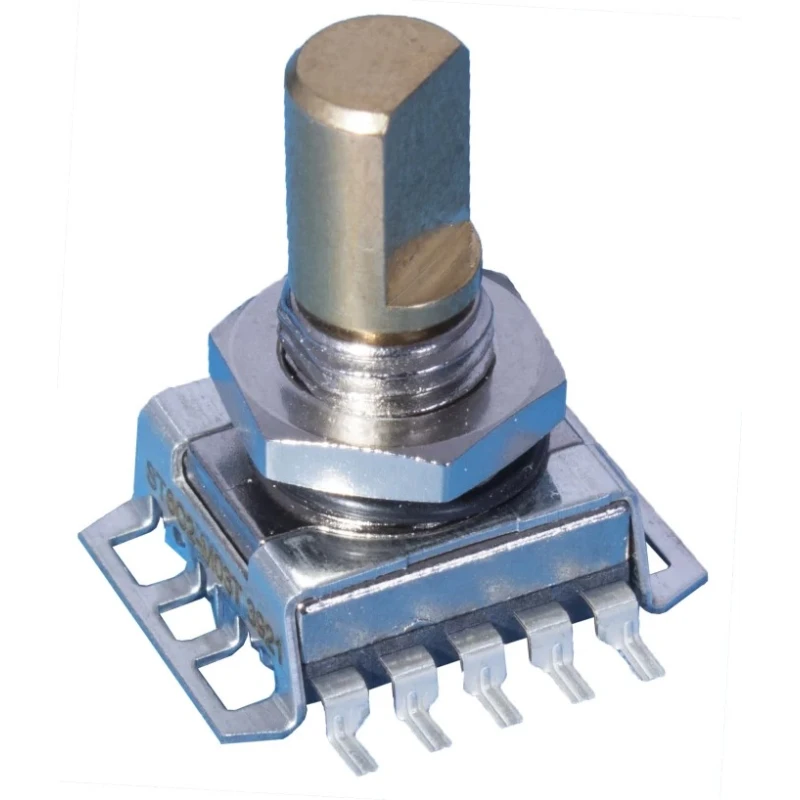

Elma Mechanical Rotary Encoder 8 ppr Pulse 2 Bit Quadrature Digital Square Wave, 6 mm Slotted Shaft E33-ST622-M01T

Elma E33-ST622-M01T Mechanical Rotary Encoder is designed for precise and reliable rotational position detection in industrial and electronic applications. With an 8 pulses per revolution (ppr) output and 2 bit quadrature encoding, it delivers accurate digital square wave signals suitable for motion control and measurement systems.

The encoder's 6 mm slotted shaft and 16 mm shaft length facilitate easy integration into machinery requiring horizontal mounting configurations. Featuring a robust metal housing and gold plated contacts, the encoder ensures longevity and consistent electrical performance. High resistance IP68 sealing on both the shaft and front panel protects against dust and water ingress, making it appropriate for harsh industrial environments.

The mechanical rotary encoder supports a maximum operating speed of 60 rpm and a low operating pushbutton force of 6N enhancing user interaction without compromising encoder integrity. Current rating is 10 mA and the termination style employs pins that provide reliable electrical connections. Its wide temperature range from -40°C to +85°C makes it versatile for various operational conditions.

Provides 8 pulses per revolution ensuring accurate positioning. Equipped with a 6 mm diameter slotted shaft for stable mechanical coupling. Digital square wave output signal enables reliable electronic interfacing. Maximum operating speed of 60 revolutions per minute supports moderate-speed applications.

Robust metal housing with gold plated contacts enhances durability and conductivity. Pushbutton function activated at 6N push force allows additional user input control. Horizontal mounting with IP68 sealing on shaft and front panel for harsh environmental resistance.

Operating temperature ranges from -40 to +85°C ensuring suitability in various conditions. Termination style utilizes pins for secure electrical connection. Compliance with RoHS standards ensures environmental safety.

This mechanical rotary encoder is ideal for industrial, electronics manufacturing, instrumentation, and automation sectors requiring reliable and precise rotary position feedback. Its rugged construction and IP68 protection ensure long-term performance in demanding environments.
