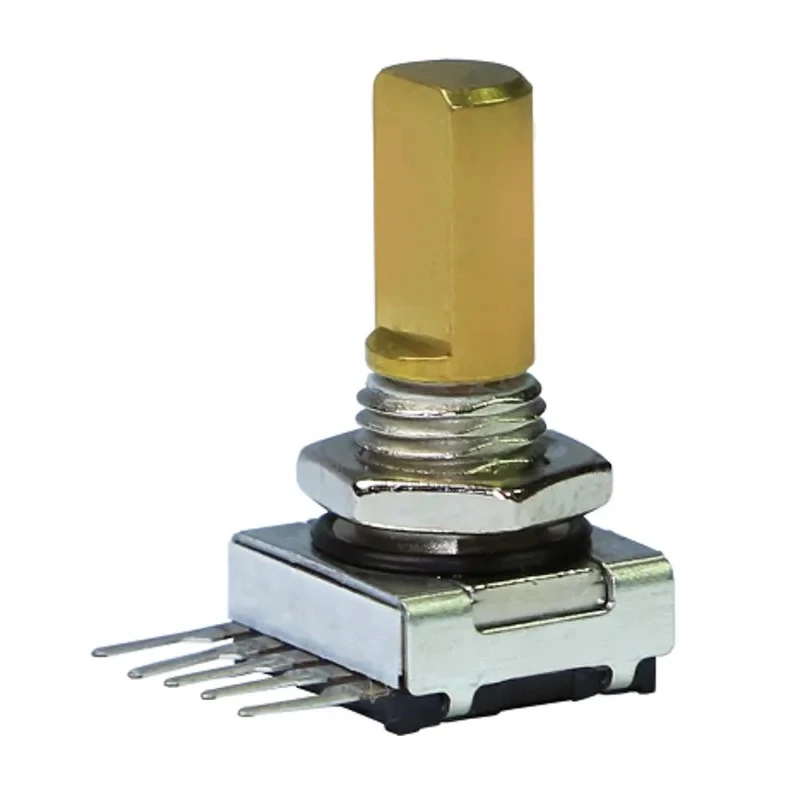

Elma Mechanical Rotary Encoder 16 ppr Pulse 2 Bit Quadrature Digital Square Wave 6 mm Slotted Shaft E33-CT6C2-M01T

The Elma E33-CT6C2-M01T mechanical rotary encoder is designed for industrial precision sensing and motion control applications. It features a robust metal housing and a metal slotted shaft with a diameter of 6 mm and length of 16 mm, ensuring precise mechanical engagement.

This encoder provides 16 pulses per revolution (ppr) and outputs a digital square wave via a 2 Bit Quadrature encoder reading, ideal for incremental position sensing or speed monitoring in automation and control systems. The maximum operating speed is 60 rpm, suitable for moderate-speed machinery.

Gold plated contacts enhance signal integrity and reliability over long operational lifetimes. The device includes a pushbutton function activated at a 6N force, allowing integrated user control options. It supports horizontal mounting and is environmentally sealed to IP68 on both the shaft and front panel, providing excellent protection against dust and water ingress.

Operating temperature ranges from -40°C to +85°C, making it suitable for diverse industrial environments. The encoder’s low current rating of 10 mA ensures efficient power usage in continuous operation. Termination is provided through pin connections for straightforward wiring in control enclosures.

This encoder is RoHS compliant, aligning with current environmental safety standards. It is commonly used in manufacturing automation, robotics, laboratory instruments, HVAC systems, and other industrial machinery requiring accurate rotary position feedback.

Provides 16 pulses per revolution ensuring high resolution measurement. Features a slotted shaft with a 6 mm diameter for secure mounting. Outputs a 2 Bit Quadrature digital square wave signal for accurate position tracking.

Supports a maximum operating speed of 60 rpm suitable for moderate-speed operations. Includes robust metal housing and gold plated contacts for durability and reliability. Pushbutton function activated with 6N push force allows user control and interaction.

Horizontal mounting capability with IP68 sealing ensures protection against dust and water ingress. Operating temperature range from -40 to +85°C for use in varied environments. Low current rating of 10 mA for energy-efficient performance.

Termination style is via pins facilitating easy electrical connection. Explore the wide range of Elma Mechanical Rotary Encoders and sensors on EnvMart for reliable performance in your automation and industrial instrumentation projects.
