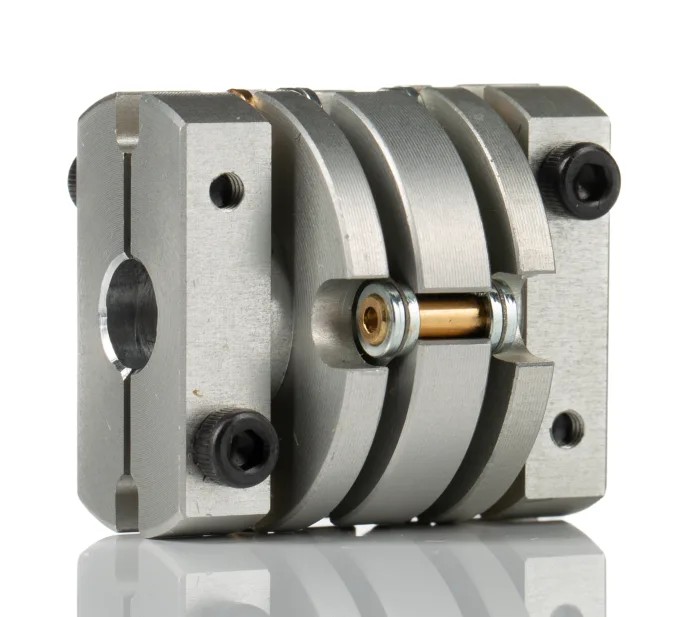

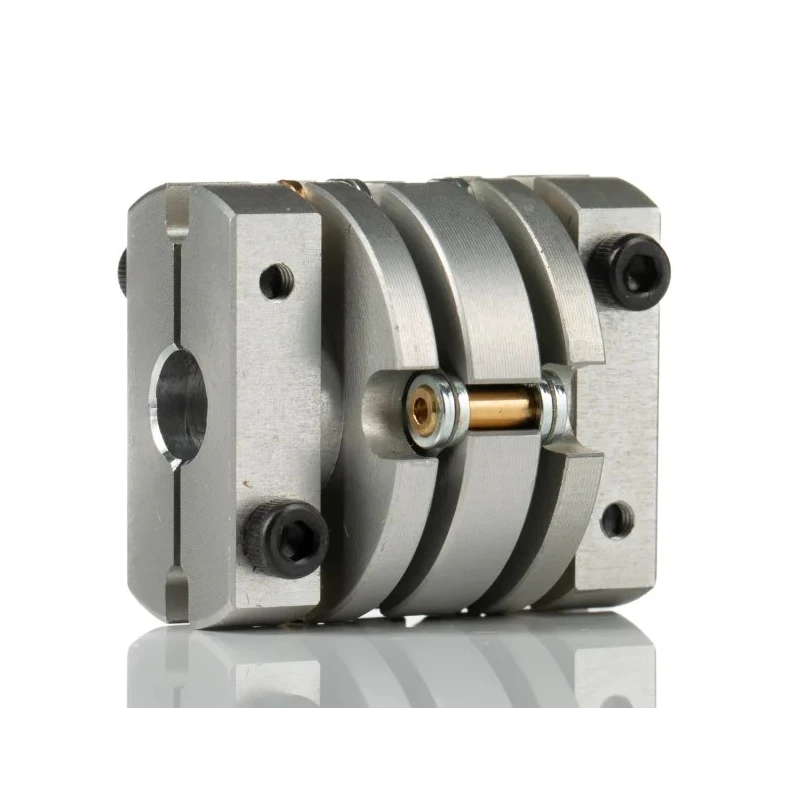

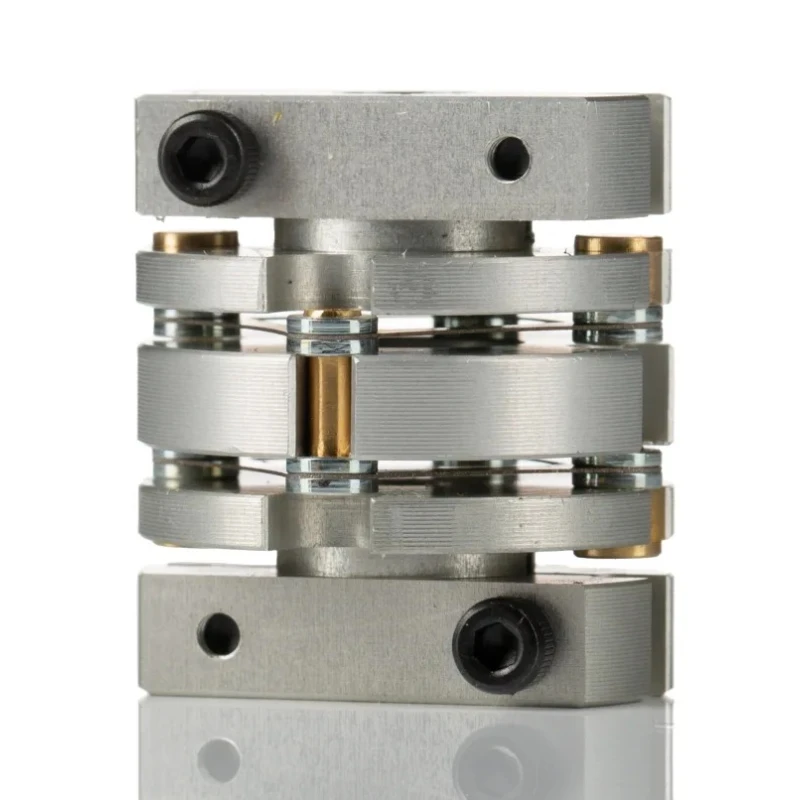

Huco Flexible Bellow Coupler 26 mm OD 28.4 mm Length 65 mm Bore 466.26.2424
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Screw Size | M2.5 to M6 |
| Brand | Huco |
| Length | 28.4mm |
| Maximum Speed | 15000rpm |
| Membrane Material | Spring Quality Stainless Steel |
| Series | Flex |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | -40°F |
| Hub Material | Aluminium Alloy 2014T6 (Clear Anodised) |
| Bore Size A | 65mm |
| Huco, 25.6 mm OD, 36.1 mm Length 65 mm Coupler 65 mmBrand | Huco |
| Huco, 12 mm OD, 23 mm Length CouplerBrand | Huco |
Key Features
- Constructed from aluminium alloy 2014T6 with clear anodised finish ensuring durability.
- Features spring quality stainless steel membrane delivering excellent torsional rigidity.
- Capable of maximum rotational speed of 15,000 rpm for high-performance operations.
- Operates efficiently within temperature range of -40°F to 250°F.
- Sized with 26 mm outer diameter and bore sizes of 65 mm on both ends.
- Incorporates a flexible bellow style coupling enabling angular, radial, and axial compliance.
- Complies with ISO 773/774 and BS 4235 Pt. 1 standards, ensuring quality and interoperability.
- Equipped to handle precision encoder, motion control systems, and dynamometer applications.
Product Description
Huco 466.26.2424 is a flexible bellow coupling engineered for precise mechanical power transmission and shaft alignment in industrial settings. This miniature coupling features a robust aluminium alloy 2014T6 hub with a clear anodised finish for corrosion resistance and long service life.
Its membrane is crafted from spring quality stainless steel, providing excellent torsional rigidity coupled with flexibility for angular, radial, and axial shaft misalignments. Rated for continuous uni- and bi-directional rotation, the coupling operates reliably at speeds up to 15,000 rpm.
Operating temperature limits from -40°F to 250°F enable use in diverse environments including laboratory instruments, motion control systems, and precision encoders. The coupling features two back-to-back joints forming a rigid system with near infinite backlash-free life and dynamic balance for vibration reduction.
Approved to ISO 773/774 (BS 4235 Pt. 1) and BS 46 Pt. 1 keyway standards, it is suitable for high resolution measuring devices, dynamometers, and precision frictional load applications.
Manufactured in the United Kingdom, this Huco coupling ensures quality and reliability for industrial power transmission needs. Constructed from aluminium alloy 2014T6 with clear anodised finish ensuring durability. Features spring quality stainless steel membrane delivering excellent torsional rigidity.
Capable of maximum rotational speed of 15,000 rpm for high-performance operations. Operates efficiently within temperature range of -40°F to 250°F. Sized with 26 mm outer diameter and bore sizes of 65 mm on both ends. Incorporates a flexible bellow style coupling enabling angular, radial, and axial compliance.
Complies with ISO 773/774 and BS 4235 Pt. 1 standards, ensuring quality and interoperability. Equipped to handle precision encoder, motion control systems, and dynamometer applications. Designed and manufactured in the United Kingdom with high quality assurance.
Browse the Industrial Tools & Equipment Mechanical Power Transmission Couplers category on EnvMart for more high-precision coupling solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can operate at a maximum rotational speed of 15,000 rpm, making it suitable for high-performance applications.
It is constructed from aluminium alloy 2014T6 with a clear anodised finish, and features a membrane made from spring quality stainless steel.
The coupling operates efficiently within a temperature range of -40°F to 250°F.
This unit has an outer diameter of 26 mm and a bore size of 65 mm on both ends.
It complies with ISO 773/774 and BS 4235 Pt. 1 standards, ensuring quality and interoperability.
It is equipped to handle precision encoder, motion control systems, and dynamometer applications.
The flexible bellow style design allows for angular, radial, and axial compliance, accommodating various shaft misalignments.
The length of this model is 28.4 mm.
It is compatible with screw sizes ranging from M2.5 to M6.
This coupler is designed and manufactured in the United Kingdom.
The spring quality stainless steel membrane delivers excellent torsional rigidity, which is crucial for maintaining performance under load.
Yes, it is rated for continuous uni- and bi-directional rotation, making it versatile for different applications.
