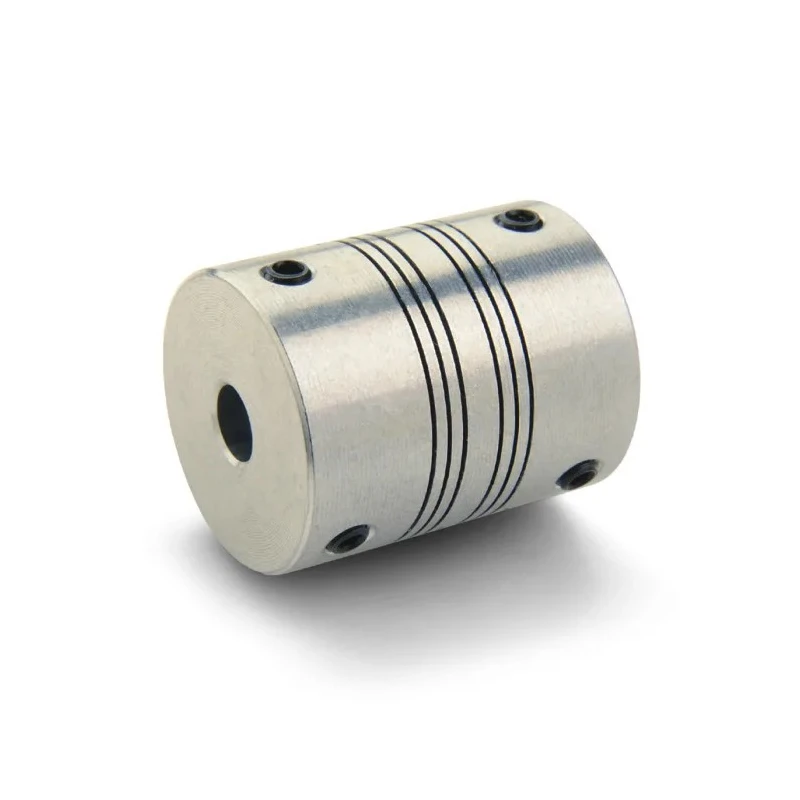

Ruland Aluminium Flexible Shaft Coupler 25 mm Outside Diameter 9.53 mm Bore Size PSR16-6-6-A

Free Delivery in India | Lowest Global Shipping Charges

Ruland Aluminium Flexible Shaft Coupler 25 mm Outside Diameter 9.53 mm Bore Size PSR16-6-6-A

Name: Ruland Aluminium Flexible Shaft Coupler 25 mm Outside Diameter 9.53 mm Bore Size PSR16-6-6-A
Brand: Ruland
SKU: 119873



Category Mechanical Power Transmission Couplers Brand Ruland Condition New

Specifications

Country of Origin	United States
Screw Size	M4
Brand	Ruland
Material	Aluminium
Length	31.8mm
Model	PSR16-6-6-A
Maximum Speed	6000rpm
Number of Beams	4
Outside diameter	25mm
Maximum Operating Temperature	107°C
Minimum Operating Temperature	-40°C
Torque Rating	25.8Nm
Standards/Approvals	DIN 912 12.9, REACH, RoHS3
Moment of Inertia	3.3 x 10-6 kg/m²
Misalignment - Angular	3°
Misalignment - Parallel	0.38mm
Misalignment - Axial	0.25mm
Bore Size B	9.53mm
Ruland, 25.4 mm OD 9.53 mm, 31.75 mm Length 9.53 mm CouplerBrand	Ruland

Key Features

Constructed from aluminium for lightweight and strength.
Maximum operating speed up to 6000 rpm.
Torque rating of 25.8 Nm suitable for demanding applications.
Allows up to 3° of angular misalignment and 0.38 mm parallel misalignment.
Screw style coupling with four beams ensures zero backlash operation.
Operates reliably in temperatures from -40°C to 107°C.
Compatible with applications like encoders, stepper motors, robotics, and servo systems.
Manufactured as one piece eliminating mechanical joints for durability.

Product Description

Ruland PSR16-6-6-A Aluminium Flexible Shaft Coupler features a 25 mm outside diameter and 9.53 mm bore sizes on both ends with a length of 31.8 mm. It is designed for applications requiring high precision and reliable power transmission including industrial robotics, stepper motors, encoders, pumps, valves, and fans.

This coupling excels where higher speeds, greater misalignments, and limited lubrication would otherwise exceed the performance of other couplers. Its one-piece torsionally rigid aluminium construction eliminates mechanical joints and potential failure points, ensuring durable, backlash-free operation.

With a maximum speed rating of 6000 rpm and torque capacity of 25.8 Nm, it accommodates angular misalignment up to 3°, parallel misalignment of 0.38 mm, and axial misalignment of 0.25 mm, allowing reliable power transfer even with shaft misalignments. Operating temperature range is from -40°C to 107°C.

The PSR16-6-6-A features a screw style fixing with four beams and uses M4 DIN 912 12.9 screws. It is RoHS3 and REACH compliant, confirming environmental and material safety standards. Ideal for industrial, laboratory, manufacturing, and robotics applications.

Constructed from lightweight aluminium for balance of strength and weight. Designed for high-speed operation up to 6000 rpm. Capable of handling torque demands up to 25.8 Nm. Zero backlash performance with screw-style fixing and four beams.

Wide operating temperature range from -40°C to 107°C. Manufactured as single piece to minimize failure risk. Suits precision applications such as servo motors and encoders. Complies with industry standards including DIN 912 12.9, REACH, and RoHS3.

This flexible shaft coupling provides reliable, torsionally rigid, backlash-free mechanical power transmission. Its robust design and high-speed capability make it suitable for demanding engineering and industrial systems. Browse the Mechanical Power Transmission Couplers category at EnvMart for more options from Ruland.
