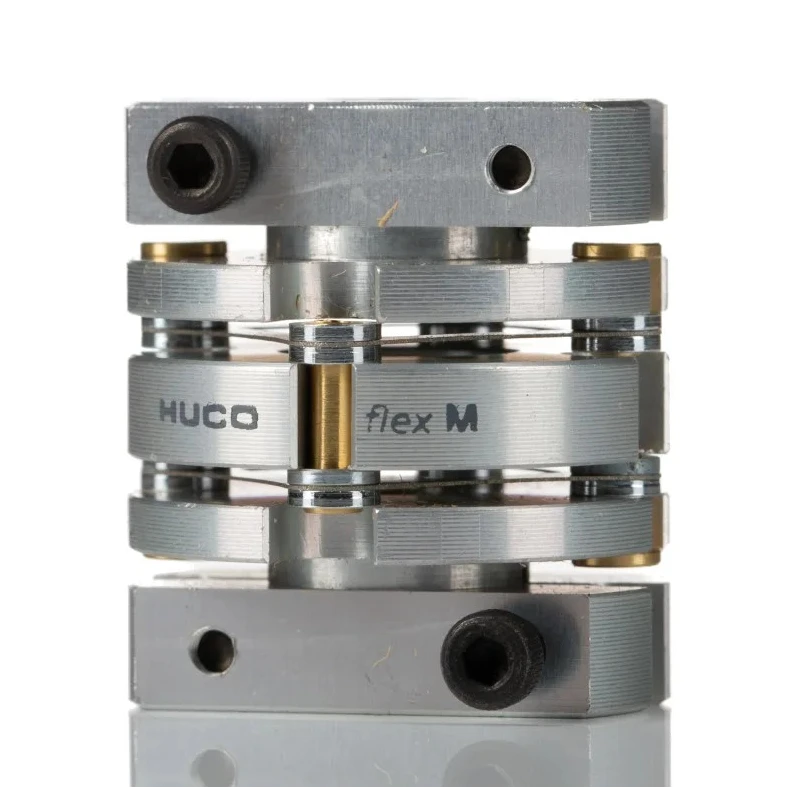

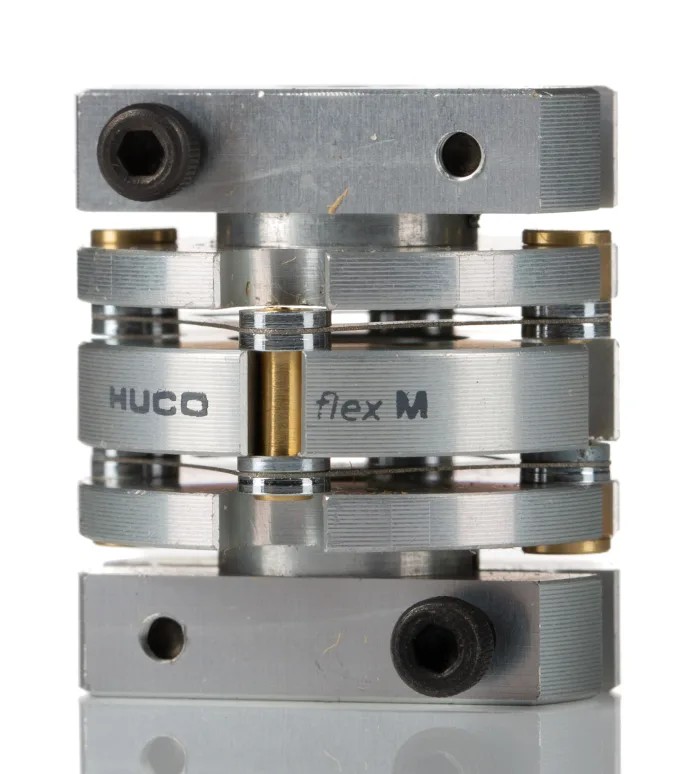

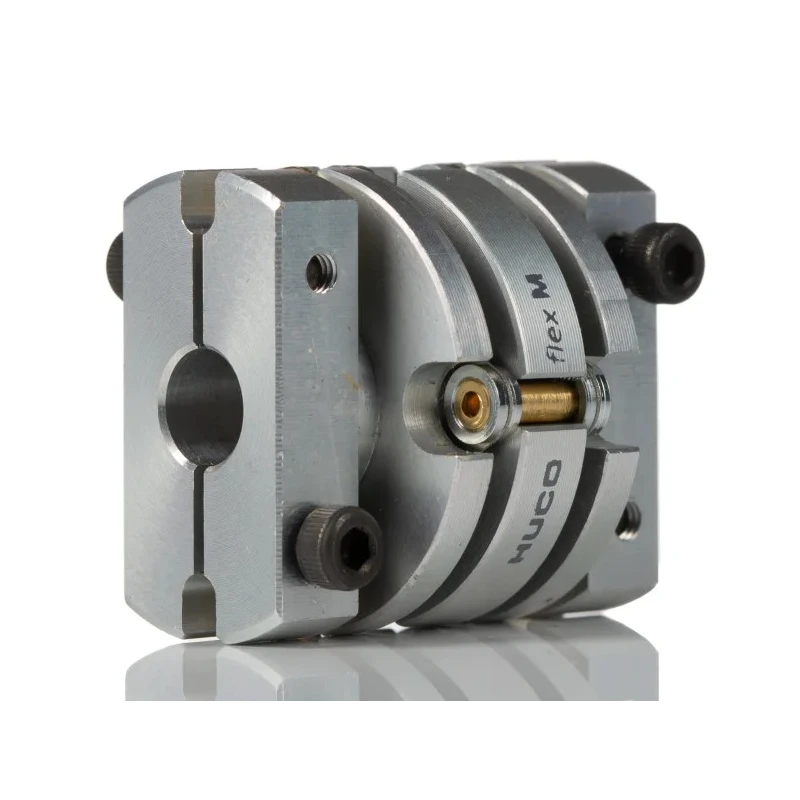

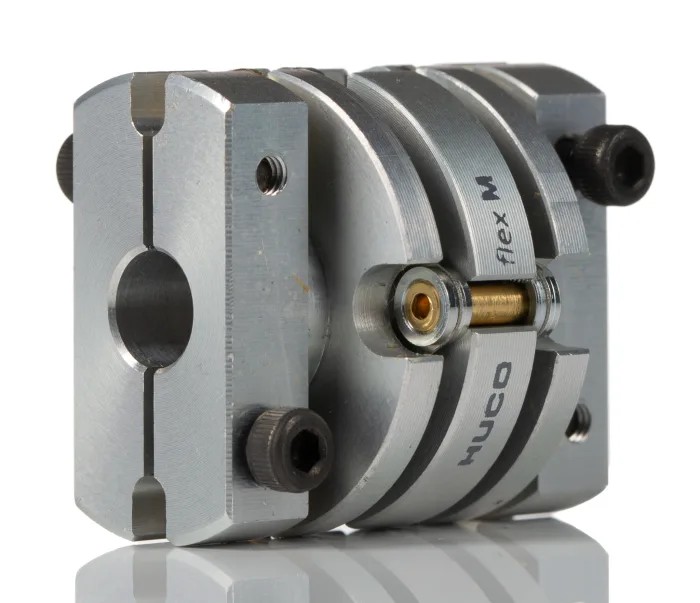

Huco Flexible Membrane Coupler 25.6 mm OD, 28.4 mm Length, Bore Size 65 mm, Max Speed 40000 rpm 466.26.2224

Huco 466.26.2224 flexible membrane coupler is a high precision mechanical power transmission component designed to ensure precise alignment between shafts with excellent torsional rigidity. Its 25.6 mm outer diameter, 28.4 mm length, and 65 mm bore sizes deliver a robust connection suitable for demanding industrial instrument applications.

The coupling's spring quality stainless steel membrane material offers durability combined with remarkable flexibility, providing backlash-free transmission of motion. Rated for maximum speeds of 40000 rpm, it supports continuous uni- and bi-directional rotation, making it ideal for applications requiring precise rotational positioning such as high resolution measuring devices, velocity control systems, dynamometers, and precision encoders.

This coupler accommodates angular, radial, and axial misalignments while maintaining rigidity through its two back-to-back joint design. Such features minimize mechanical vibration and wear, extending operational lifespan with near infinite life under typical operating stresses.

The operating temperature range between -40°C and 140°C ensures reliable performance across diverse environmental conditions. Compliance with ISO 773/774 and British standards 4235 Pt. 1 and 46 Pt. 1 confirms its adherence to recognized quality norms for mechanical power transmission couplings.

The all-metal construction with low inertia makes this coupler suitable for motion-critical industrial, laboratory, and manufacturing settings requiring precise and reliable shaft connections.

The coupler features a bore size of 65 mm on both ends for secure shaft attachment. Constructed with spring quality stainless steel membrane material ensuring durability and flexibility. Capable of operating continuously at speeds up to 40000 rpm.

Operates efficiently within a temperature range from -40°C to 140°C. Complies with ISO 773/774 (BS 4235 Pt. 1), BS 46 Pt. 1 standards for quality assurance. Designed for use in high resolution measuring devices, motion control systems, dynamometers, and precision encoders.

Provides excellent torsional rigidity with minimal backlash for accurate motion transmission. Includes two back-to-back joints offering a more rigid system requiring greater alignment accuracy. Offers angular, radial, and axial compliance with low inertia and all-metal construction.

Ideal for industrial, mechanical power transmission, and precision motion control applications. Browse the full range of Huco couplers and related power transmission components at EnvMart for quality and reliability.
