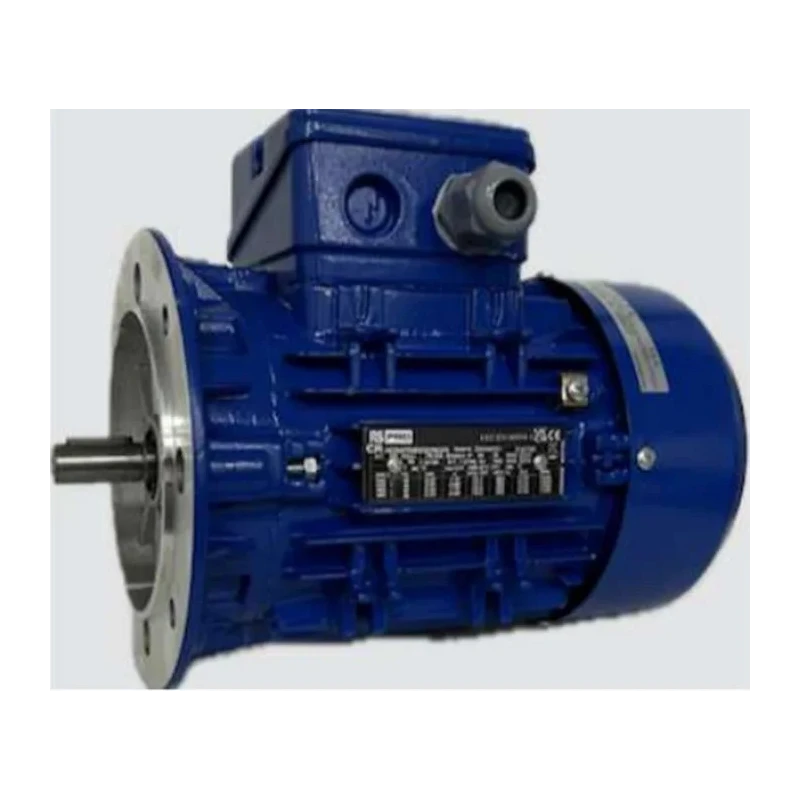

RS PRO 1.5 kW IE3 3 Phase 4-Pole 400V Aluminium Squirrel Cage AC Motor Flange Mounting AAP90L4A

RS PRO AAP90L4A is a 3 Phase 400V AC Squirrel Cage Induction Motor with a power rating of 1.5 kW and efficiency class IE3. Designed for flange mounting, this motor features an aluminium body providing lightweight durability and excellent corrosion resistance.

The motor operates at 1445 rpm with 4 poles, enabling effective torque generation up to 9.9 Nm. Deep groove bearings by SKF, FAG, NSK, and NTN with C3 shielding contribute to its longevity and low maintenance. Oil seal fitted ends and reinforced bearing housing offer additional protection for industrial use.

Manufactured in compliance with IEC 60034 standards and RoHS directives, this motor guarantees quality and reliability. The stator windings are inverter rated, making it suitable for variable speed drive applications. The motor includes two earthing terminals and a non-drive end (NDE) shaft that is drilled and tapped for easy mounting of accessories.

This durable and robust motor is ideal for various industrial applications including pumps, blowers, fans, gearboxes, machine tools, and conveyor belt systems. It provides efficient, low maintenance performance tailored to meet stringent industrial demands.

Its aluminium frame (Frame size 90) and rustproof RAL7031 40 micron minimum painting ensure resistance against corrosion in demanding environments. The product is made in Turkey and comes with certification of RoHS compliance.

This flange mounted squirrel cage induction motor features a durable aluminium body. It operates at 400V with 3 phases and produces 1.5 kW power at 1445 rpm. The motor has 4 poles, providing a balance of speed and torque with maximum output torque of 9.9 Nm.

Equipped with SKF, FAG, NSK, NTN deep groove bearings with C3 shielding for enhanced reliability. Designed to meet IEC 60034 standards and RoHS compliant for quality assurance. Features oil seal fitted ends and reinforced bearing housing for long service life.

Corrosion resistant RAL7031 rustproof painting at a minimum thickness of 40 microns. Includes two earthing terminals and NDE shaft drilled and tapped for easy accessory mounting. Inverter rated windings ensure compatibility with variable speed drives.

Ideal for pumps, blowers, gearboxes, conveyor belts, and machine tools in industrial environments. Explore more motors with superior performance and reliability in our Motors & Pumps category at EnvMart.
