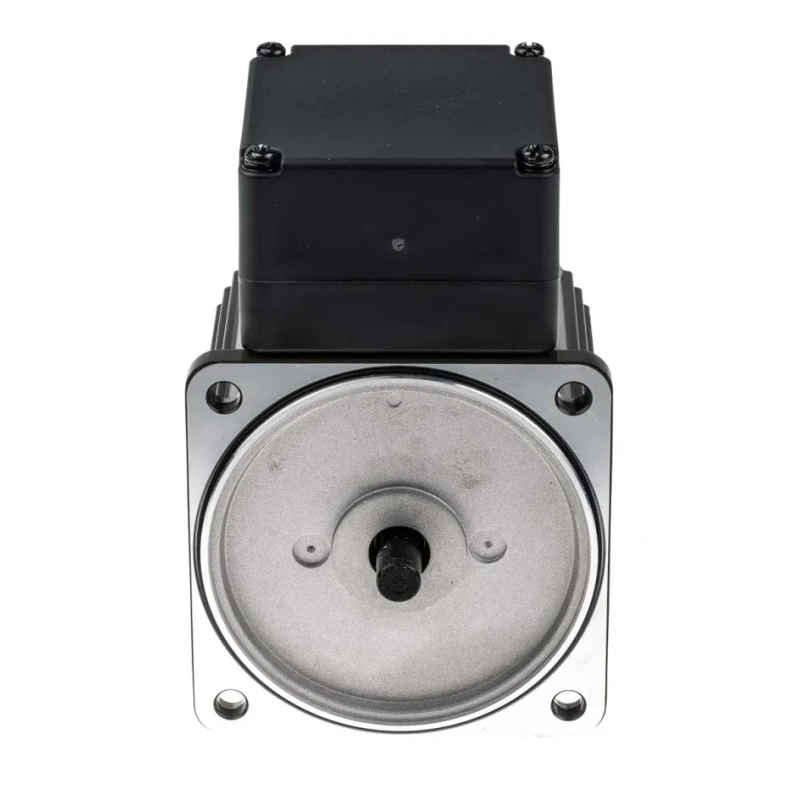

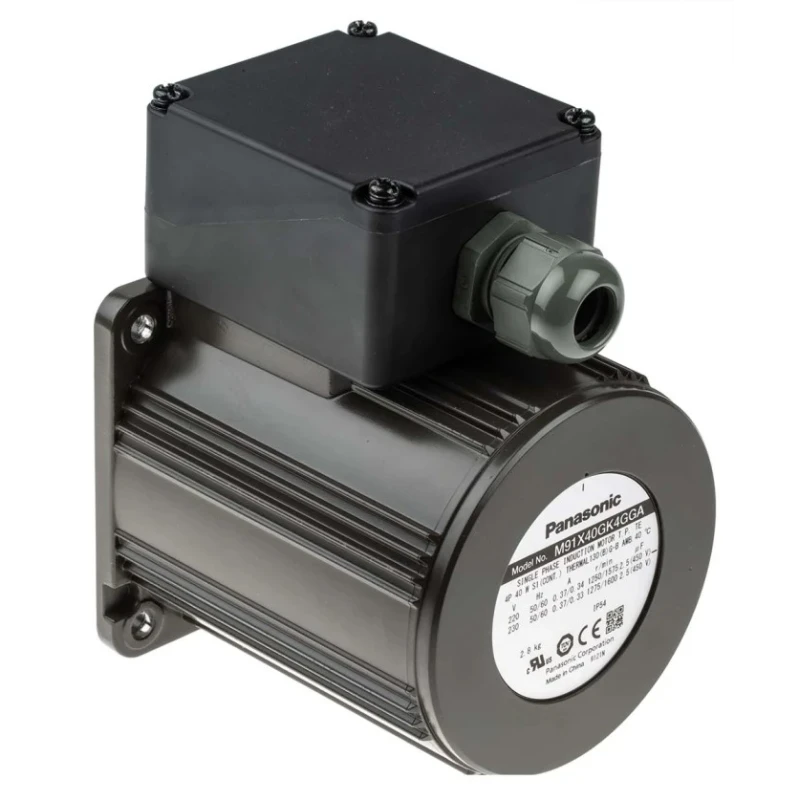

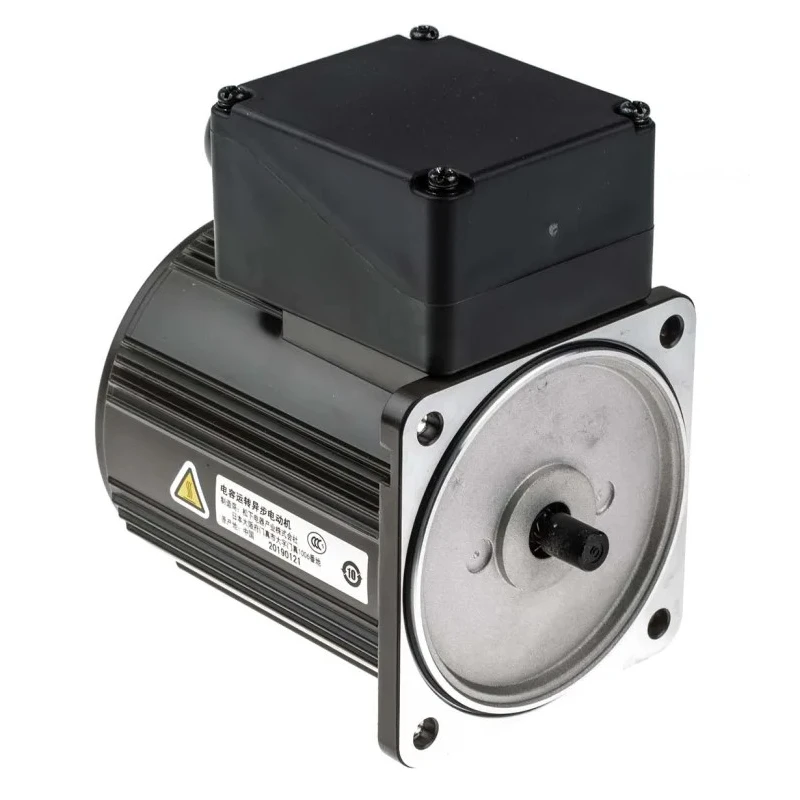

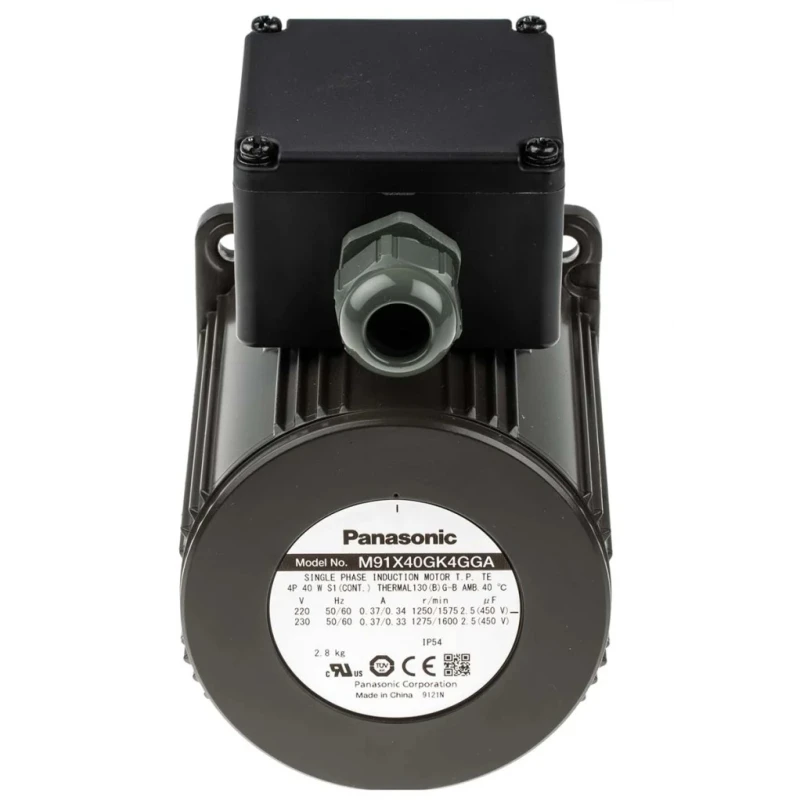

Panasonic Reversible Spur AC Motor 40 W, 1 Phase, 4-Pole, 230 V, Panel Mounting M91X40GK4GGA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Material | Steel |
| Length | 105mm |
| Model | M91X40GK4GGA |
| Depth | 90mm |
| Width | 90mm |
| Mount Type | Panel |
| Rotation | Reversible |
| Current Rating | 370mA |
| Series | M91 |
| Power Rating | 40W |
| Sub Type | Induction |
| Output Speed | 1275rpm |
| Shaft Diameter | 12mm |
| Shaft Length | 27mm |
| Number of Phases | 1 |
| Supply Voltage | 230V |
| Bearing Type | Ball |
| Number of Poles | 4 |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 0.31Nm |
| Gearhead Type | Spur |
Key Features
- This panel mounting motor features a steel shaft with 12 mm diameter and 27 mm shaft length.
- It offers reversible rotation with a maximum output torque of 0.31 Nm.
- Designed as an induction motor with ball bearing type for quiet and reliable operation.
- Ideal for use in conveyor systems, machinery, and door openers in various industrial applications.
- Compatible exclusively with Panasonic 3 Series gearboxes featuring grease-lubricated gearboxes and 10000 hr life.
- Panasonic’s Class B motor insulation ensures durable performance under industrial conditions.
- The motor complies with RoHS standards and is UL, CE and CCC approved for safety and quality assurance.
Product Description
Panasonic M91X40GK4GGA reversible spur AC motor is a 40 W, single-phase induction motor designed for versatile industrial automation applications requiring efficient torque and reversible operation. It operates at a supply voltage of 230 V and an output speed of 1275 rpm, featuring 4 poles, and is intended for panel mounting installations.
The motor shaft is made of steel with a 12 mm diameter and a length of 27 mm, providing robust mechanical integration. The compact motor dimensions of 90 mm width, 90 mm depth, and 105 mm length suit space-limited panel configurations.
This motor uses ball bearings to ensure smooth, quiet rotation and enhanced reliability during continuous industrial operation. It is designed with a spur gearhead that facilitates pairing with matching Panasonic 3 Series gearboxes, intended exclusively for this motor series, ensuring optimal gearhead life and performance.
Typical applications include conveyor drives, automated machinery, and door opening systems, where reversible rotation and reliable torque output of 0.31 Nm are essential. The motor incorporates Class B insulation for thermal endurance and complies with RoHS environmental standards, reflecting Panasonic's commitment to quality and sustainability. It holds UL, CE, and CCC certifications, affirming compliance with international safety and quality norms.
This motor delivers reliable power suitable for various industrial tasks. Compact panel mount design enables easy installation in control panels. Integrated ball bearing supports long service life and low noise operation.
Reversible rotation extends operational flexibility for machinery. Spur gearhead compatibility limited to Panasonic 3 Series gearboxes. Meets RoHS requirements and holds key international safety approvals. Constructed for conveyor systems, door openers, and general machinery.
Class B insulation provides durability under industrial thermal stresses. Explore more AC Motor solutions and compatible gearheads at EnvMart to enhance your industrial automation and machinery performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This motor has a power rating of 40 W, making it suitable for various industrial applications.
The motor operates at a supply voltage of 230 V, which is standard for many industrial applications.
It has an output speed of 1275 rpm, providing efficient performance for various tasks.
This model utilizes ball bearings, ensuring smooth and quiet operation during use.
The maximum output torque is 0.31 Nm, suitable for applications requiring reliable torque.
The motor has dimensions of 105 mm in length, 90 mm in width, and 90 mm in depth, making it compact for panel mounting.
Yes, the M91X40GK4GGA features reversible rotation, allowing for versatile operational capabilities.
This motor is designed for panel mounting, facilitating easy installation in control panels.
It is compatible exclusively with Panasonic 3 Series gearboxes that feature grease-lubricated gearheads.
The motor complies with RoHS standards and holds UL, CE, and CCC certifications for safety and quality assurance.
This motor is ideal for use in conveyor systems, automated machinery, and door openers in various industrial settings.
The motor features a steel shaft with a diameter of 12 mm and a length of 27 mm, providing robust mechanical integration.
