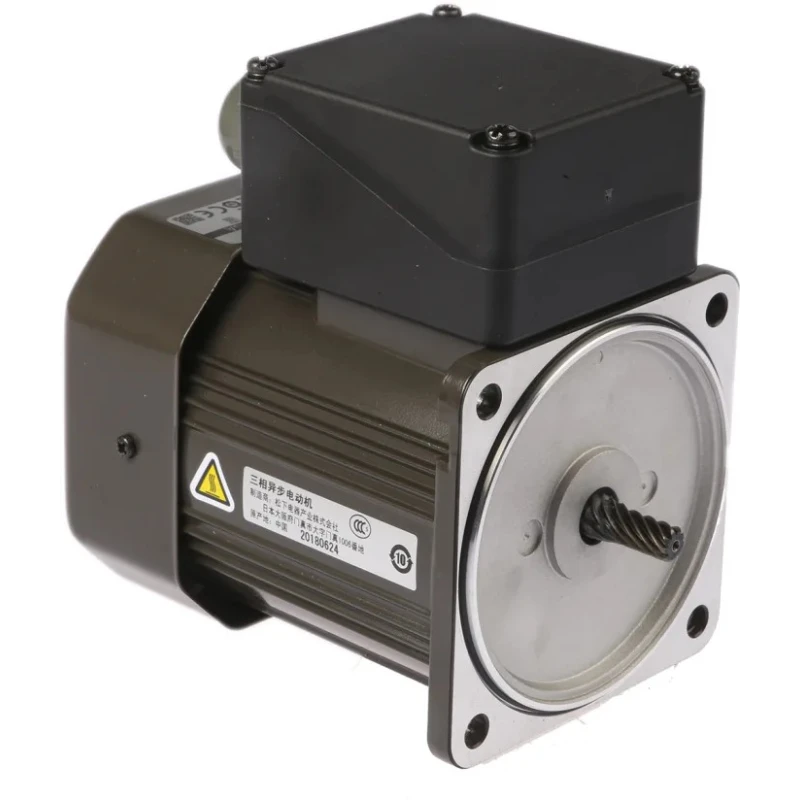

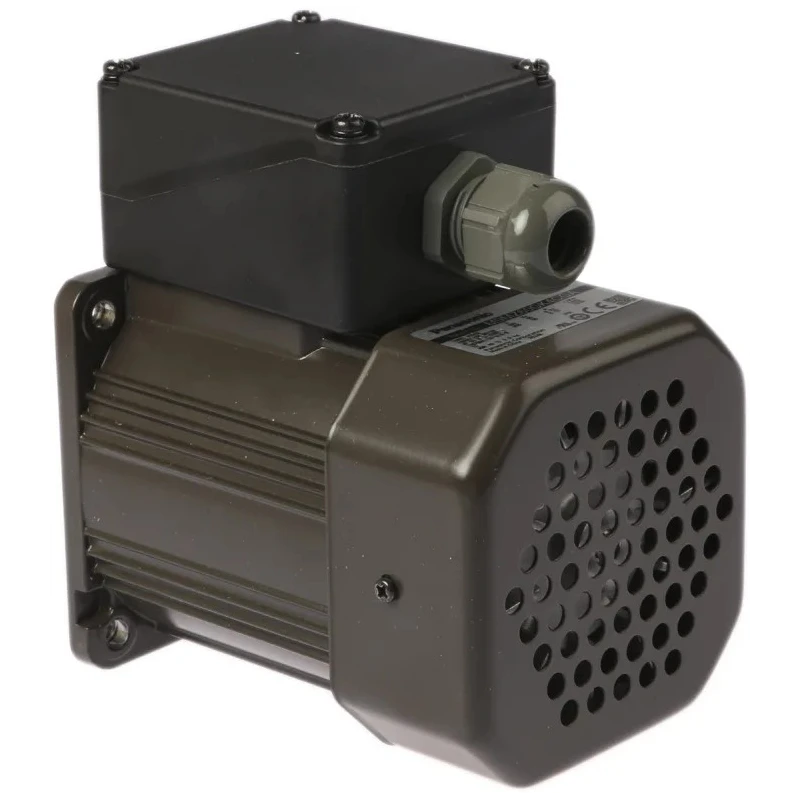

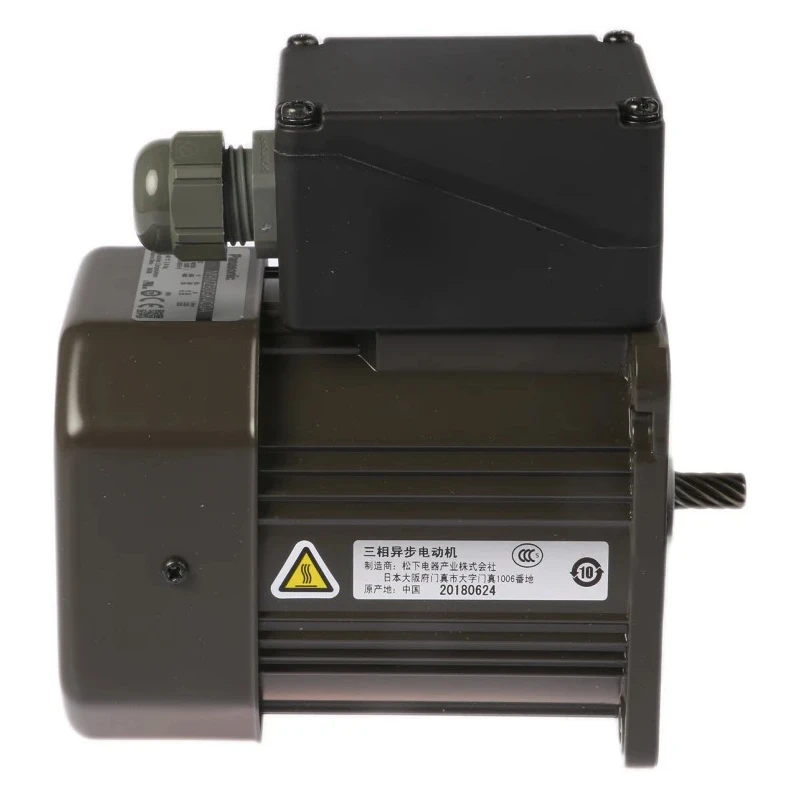

Panasonic M9M Reversible Spur AC Motor 60 W 3 Phase 4-Pole 400V Panel Mounting M9MZ60GK4CGA

Panasonic M9MZ60GK4CGA reversible spur AC motor is a 60 W power industrial-grade induction motor designed for 3-phase 400V supply with 4 poles, delivering a speed of 1325 rpm. Its panel mounting configuration allows for easy integration into automation and control gear setups in manufacturing, conveyor systems, and machinery applications.

This motor is built with a robust steel shaft measuring 15 mm in diameter and 25 mm in length, complemented by a compact body size of 90 mm width, 140.5 mm length, and 90 mm depth. The shaft design and ball bearing type provide enhanced durability and smooth operation, ensuring long service life.

The motor's reversible rotation capability makes it suitable for varied industrial tasks requiring directional flexibility. It offers a maximum torque of 0.88 Nm and a rated current of 220 mA. The spur gearhead type in conjunction supports precise mechanical power transmission with Panasonic 3 Series 60W gearheads, which feature grease-lubricated gearboxes for 10,000-hour life and quiet operation.

Panasonic M9M motors replace earlier G Series with improved design elements like class B insulation and shorter gearhead options. UL, CE, and CCC approvals attest to its quality and safety compliance, while RoHS conformity ensures it meets environmental standards. This motor is ideal for industrial automation, electrical control panels, HVAC systems, and commercial machinery requiring reliable AC motor power.

The motor features a reversible rotation suitable for flexible industrial applications. It operates at an output speed of 1325 rpm providing efficient performance. Constructed with a steel shaft, 15 mm diameter and 25 mm length for durability.

Compact dimensions of 90 mm width, 140.5 mm length, and 90 mm depth facilitate easy installation. Maximum output torque rated at 0.88 Nm ensures reliable torque transfer. Includes ball bearing type contributing to smooth and long-lasting operation.

Designed for panel mounting to integrate seamlessly with industrial equipment. Compliant with RoHS standards ensuring environmental safety. Typical industrial uses include conveyor systems, machinery, and door openers. Compatible exclusively with Panasonic 3 Series Gearboxes for optimal pairing.

Explore the range of Panasonic AC Motors and gearboxes at EnvMart for robust industrial automation solutions.
