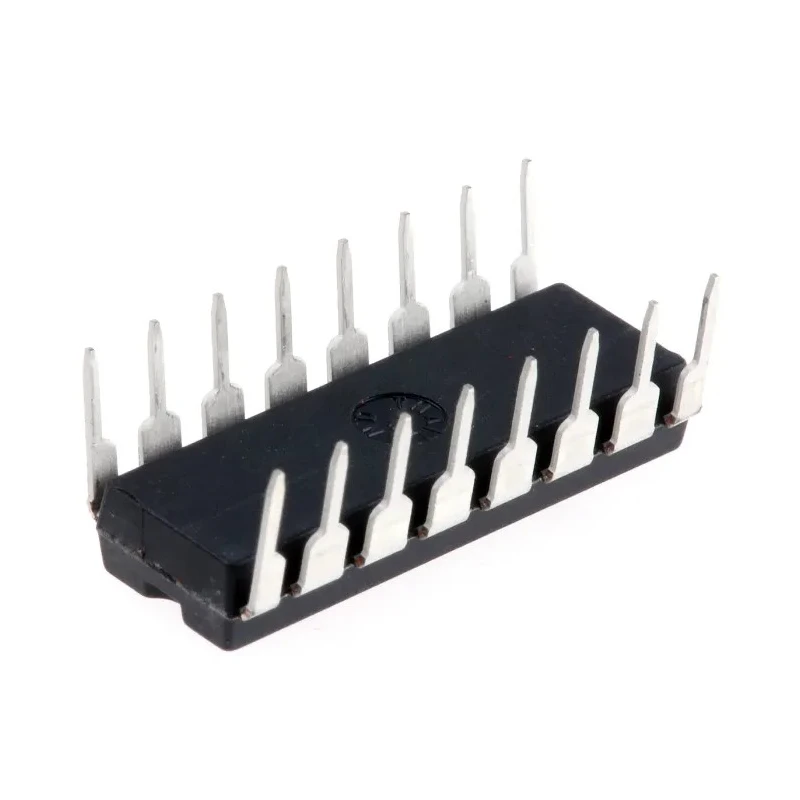

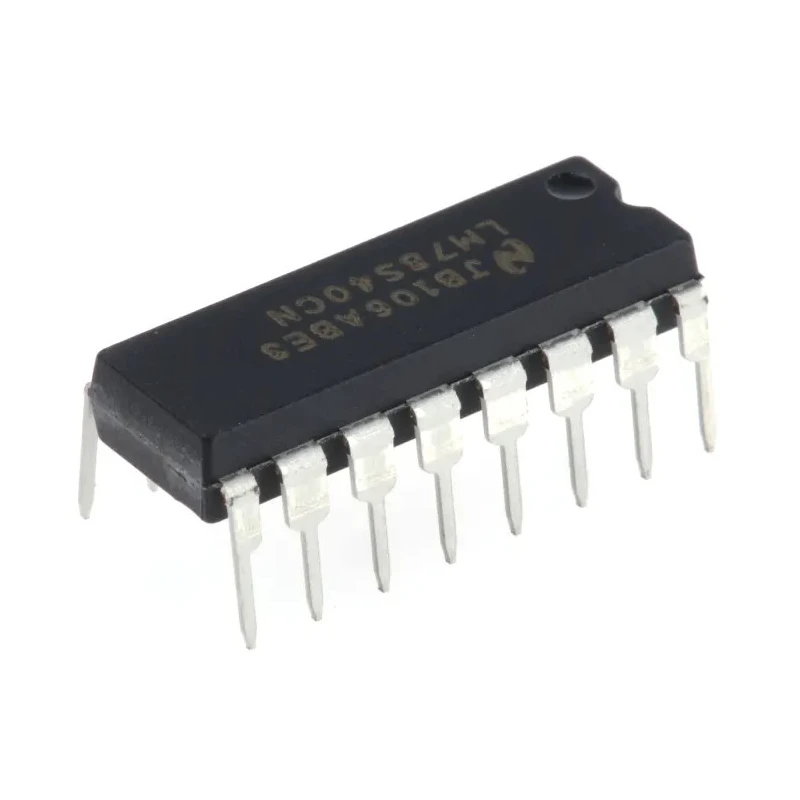

Texas Instruments 16-Pin MDIP 5-Channel PWM Controller, 100 kHz, 14V, Voltage Mode, Buck Topology, LM78S40CN/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 3.3mm |
| Length | 19.05mm |
| Model | LM78S40CN/NOPB |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Maximum Duty Cycle | 88% |
| Series | LM |
| Output Current | 1.2A |
| Topology | Buck |
| Maximum Operating Temperature | 70°C |
| Package Type | MDIP |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 5 |
| Output Voltage | 40V |
| Maximum Switching Frequency | 100kHz |
| Pin Count | 16 |
| Maximum Supply Voltage | 14V |
| Minimum Supply Voltage | 2.7V |
| Start-up Supply Current | 1.8mA |
| PWM Controller Type | Voltage Mode |
Key Features
- Supports step-down (buck) voltage regulation for efficient power management applications.
- Features a maximum switching frequency of 100 kHz and supports up to 14V supply voltage.
- Delivers up to 1.2A output current with 40V maximum output voltage and up to 88% duty cycle.
- Provides five independent channels for controlling multiple outputs from a single IC.
- Designed for through-hole mounting and voltage mode PWM control for versatile integration.
- Operating temperature range from 0°C to 70°C ensures stability in industrial environments.
- Compact MDIP package with 16 pins, dimensions 19.05mm x 6.35mm x 3.3mm.
Product Description
Texas Instruments LM78S40CN/NOPB is a highly integrated 5-channel PWM controller IC, engineered to meet demanding power management needs in industrial, laboratory, and commercial applications. This device utilizes a voltage-mode PWM approach and provides robust step-down (buck) regulation capability, supporting input voltages up to 14V with reliable switching frequencies up to 100 kHz. Its 16-pin MDIP form factor enables straightforward through-hole installation, making it ideal for PCB assembly in systems requiring efficient multi-channel DC/DC conversion.
Key technical features include a maximum output voltage of 40V and output currents up to 1.2A across each channel, making the LM78S40CN/NOPB suitable for both distributed and clustered power regulation. The controller supports up to five separate outputs, offering flexibility for supplying multiple components or circuits from a single solution. The maximum duty cycle reaches 88%, optimizing output quality and response under varying load conditions.
The IC’s minimum supply voltage operates from 2.7V, ensuring compatibility with low-voltage digital logic platforms, while its maximum supply voltage of 14V accommodates standard and higher-voltage systems. Start-up and steady-state supply currents are both rated at 1.8mA, minimizing self-consumption and supporting energy-efficient operation.
Designed for a wide industrial temperature range (0°C to 70°C), LM78S40CN/NOPB maintains reliable performance in environments subject to thermal fluctuations. With a package size of 19.05mm (length) x 6.35mm (width) x 3.3mm (height), this MDIP IC is easily integrated into compact control panels and power systems.
Step-down buck topology enables precise voltage regulation in DC/DC conversion and power distribution systems. Voltage mode PWM control grants enhanced stability and response for critical electronic, industrial, and laboratory applications.
Five-channel design permits simultaneous control of multiple loads, supporting scalable equipment and instrumentation. Through-hole MDIP packaging provides robust mechanical mounting and facilitates conventional assembly processes.
Ideal for power management, embedded systems, laboratory instrumentation, and manufacturing controls requiring reliable multi-output regulation.
Suitable for use in industrial machinery, laboratory apparatus, commercial equipment, and embedded systems, the LM78S40CN/NOPB offers a versatile and reliable solution for DC power management. Explore more Texas Instruments PWM controllers and power management ICs in the Power Management ICs category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM78S40CN/NOPB can deliver up to 1.2A output current across each of its five channels.
This PWM controller supports a maximum supply voltage of 14V.
It features a maximum switching frequency of 100 kHz.
The LM78S40CN/NOPB provides five independent outputs for controlling multiple loads.
The operating temperature range is from 0°C to 70°C, ensuring stability in industrial environments.
It is designed for through-hole mounting, facilitating easy PCB assembly.
This model comes in a compact MDIP package type with 16 pins.
The maximum output voltage supported is 40V.
The minimum supply voltage for the LM78S40CN/NOPB is 2.7V.
It has a maximum duty cycle of 88%, optimizing output quality under varying load conditions.
The start-up supply current is rated at 1.8mA, which helps minimize self-consumption.
This PWM controller utilizes a buck topology for efficient step-down voltage regulation.
