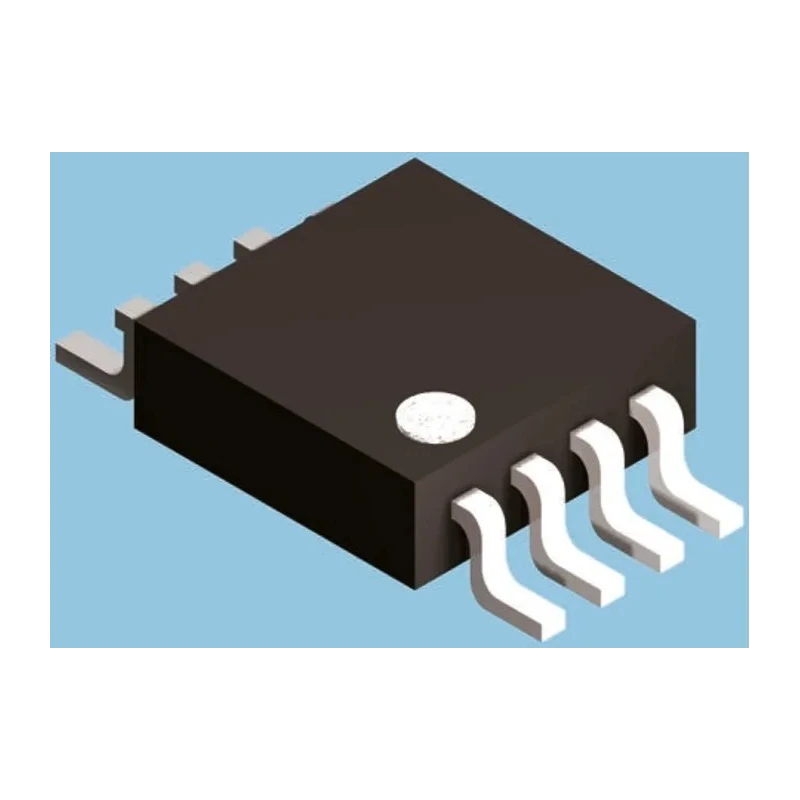

Texas Instruments 1 2-Input AND Logic Gate, 8-Pin US SN74LVC2G08DCUR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 800μm |
| Length | 2.4mm |
| Model | SN74LVC2G08DCUR |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | Single Ended |
| Series | SN74 |
| Input Type | Differential |
| Maximum Operating Temperature | 125°C |
| Package Type | US |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 8 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | AND |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 4.8ns |
| Maximum Low Level Output Current | 32mA |
| Number of Inputs per Gate | 2 |
Key Features
- This logic gate operates within a voltage range of 1.65 to 5.5 V.
- It includes 1 element with 2 inputs per gate for AND function logic.
- The component is surface mountable and compatible with input LVTTL/TTL and output LVCMOS.
- Maximum propagation delay time at CL is 4.8 nanoseconds ensuring fast switching.
- Operating temperature ranges from -40°C to 125°C for robust industrial use.
- Maximum high level output current is -4 mA and maximum low level output current is 32 mA.
- The device package type is US with a pin count of 8 ensuring easy integration into circuits.
- Schmitt trigger input is not included in this model.
Product Description
Texas Instruments SN74LVC2G08DCUR is a 1 2-Input AND Logic Gate packaged in an 8-pin US surface mount configuration, designed for low-voltage CMOS digital logic applications. It operates over a wide voltage range of 1.65 V to 5.5 V making it suitable for various electronic circuit designs and industrial applications including embedded systems, automotive electronics, and communication devices.
This single gate device delivers reliable AND logic function with two differential inputs and is compatible with LVTTL/TTL inputs and LVCMOS outputs, ensuring versatile interfacing with other logic families. The propagation delay time of 4.8 ns supports high-speed logic operations essential in modern electronics.
Engineered for challenging environments, it supports operation within -40°C to 125°C which is standard for industrial-grade semiconductors. Its surface mount package and 8-pin count allow for efficient PCB layout and automated assembly processes.
The product is part of the renowned SN74LVC family from Texas Instruments, known for performance and high reliability. This device does not include a Schmitt trigger input, focusing on standard logic operations. It has a maximum high-level output current of -4 mA and low-level output current of 32 mA, suited for driving subsequent logic stages or loads in electronic circuits.
This 1 2-Input AND Logic Gate is ideal for computerized logic control and other electronic systems. It supports low-voltage operation, making it power-efficient for battery-powered and portable devices. Its wide operating temperature and industrial spec rating make it suitable for harsh environments.
The small form factor and surface mount package aid compact design and automated manufacturing. Texas Instruments’ SN74 series assures reliability and compatibility across diverse applications. Explore more in Logic Gate products by Texas Instruments and find the right semiconductor solution for your electronics projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a voltage range of 1.65 V to 5.5 V.
The maximum propagation delay time at CL is 4.8 nanoseconds.
This model includes 2 inputs per gate for the AND function logic.
The maximum operating temperature is 125°C.
It is packaged in an 8-pin US surface mount configuration.
The maximum low-level output current is 32 mA.
It is compatible with LVTTL/TTL input types.
The height of this model is 800 μm.
This device performs the AND logic function.
No, this model does not include a Schmitt trigger input.
The minimum operating temperature is -40°C.
The output type is single-ended.
