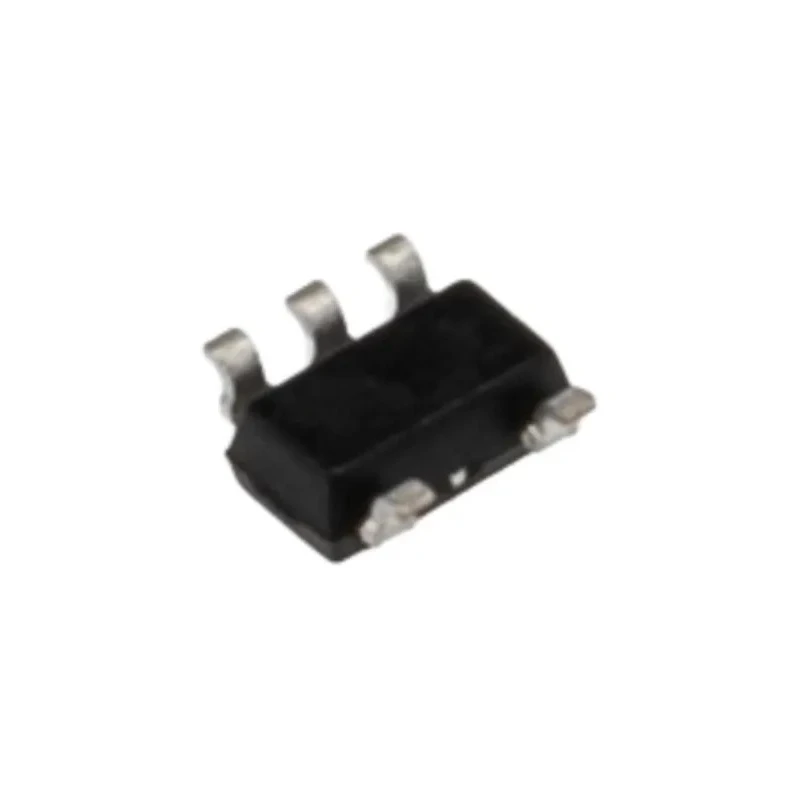

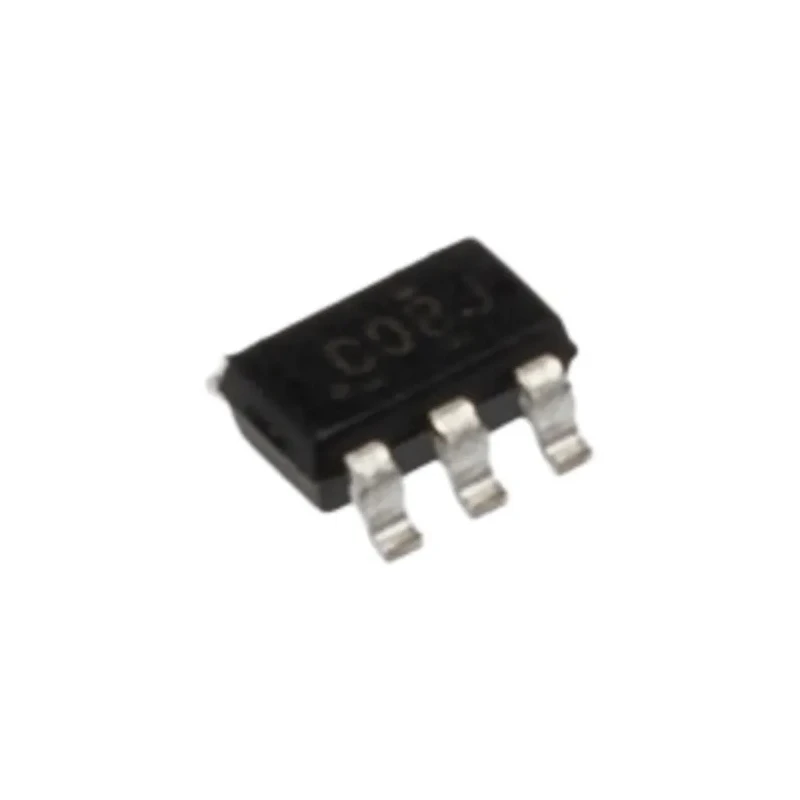

Texas Instruments 1 2-Input AND Logic Gate, 5-Pin SOT-23 Surface Mount SN74LVC1G08DBVT

Texas Instruments SN74LVC1G08DBVT 1 2-Input AND Logic Gate in 5-pin SOT-23 package offers surface mount CMOS technology and low voltage compatibility, designed for efficient operation in advanced electronic circuits.

This logic gate features a single gate element with two inputs per gate, optimized for fast switching with a maximum propagation delay of 5ns at the rated load. It operates over a wide voltage range from 1.65V to 5.5V, making it suitable for low voltage applications.

The device maintains robust performance from -40°C to 125°C, providing reliable operation under harsh environmental conditions. Its compact footprint with dimensions of 3.05mm length and 1.45mm height supports high-density electronic designs.

The SN74LVC1G08DBVT has output currents of ±32mA, enabling compatibility with driving moderate loads while preserving signal quality through CMOS output stages. The absence of Schmitt trigger input indicates it is intended for standard logic level transitions.

Operates with supply voltage of 1.65V to 5.5V. Maximum propagation delay time of 5ns ensures fast switching. Single element Logic Gate with 2 inputs per gate. Compact SOT-23 package facilitates space-saving PCB layouts. Wide operating temperature range from -40°C up to 125°C.

Capable of driving output currents up to ±32mA. CMOS output type for low power consumption and noise immunity. Surface mount mount type suitable for modern electronics assembly. Dimensions: 3.05mm length x 1.45mm height.

Ideal for industrial and commercial semiconductor applications.

For professionals designing logic circuits, the SN74LVC1G08DBVT provides a dependable AND gate solution with proven performance and reliability. Explore more Texas Instruments semiconductor products and logic ICs at EnvMart to enhance your industrial and electronics projects.
