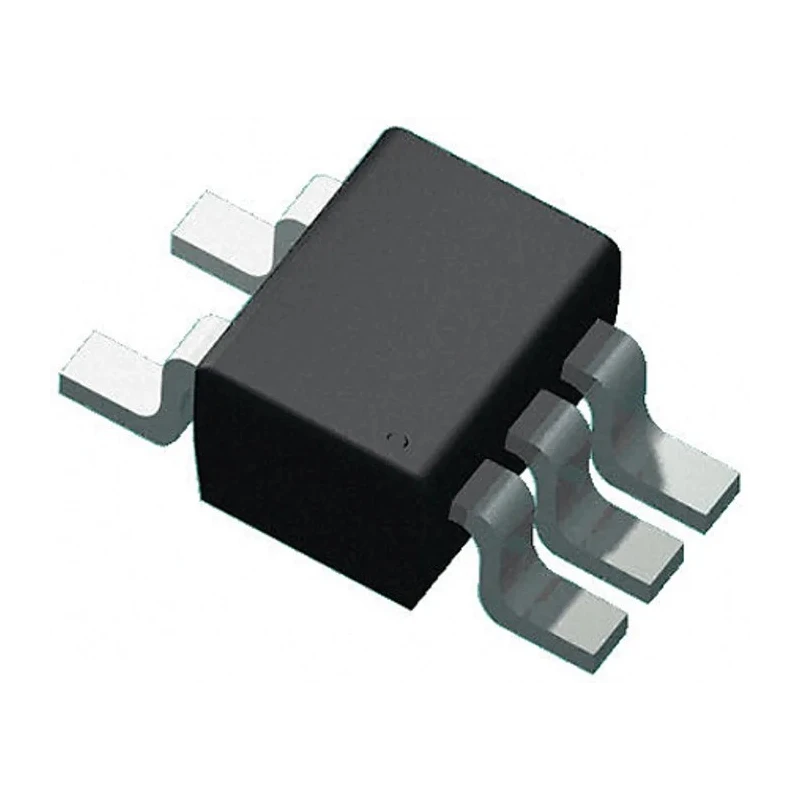

onsemi Voltage Regulator 24V TSOT-23 5-Pin Low Dropout Linear Regulator NCP718ASN180T1G

onsemi NCP718ASN180T1G is a highly efficient, low dropout (LDO) linear voltage regulator that offers exceptional performance for industrial, automotive, and power management applications. This compact device in a TSOT-23 surface-mount package supports input voltages from 2.5 V up to 24 V and delivers a stable, low noise output voltage essential for sensitive analog and digital circuits.

The regulator features an ultra-low quiescent current typically 4 μA across the full temperature range, maximizing battery life in portable and power-sensitive devices. Protection mechanisms include thermal shutdown and current limiting to enhance device robustness and reliability under harsh operating conditions. Its excellent power supply ripple rejection (PSRR) of 60 dB at 1 kHz ensures minimal output noise, critical for noise-sensitive applications such as communication and sensor modules.

Compact with dimensions 2.9 mm length, 1.6 mm width, and 0.9 mm height, the TSOT-23 package is ideal for space-constrained designs. The device is AEC-Q100 qualified, making it suitable for automotive electronic systems requiring stringent quality and reliability standards.

The NCP718 series supports both fixed and adjustable output voltages in the range of 1.2 V to 5 V, offering flexible design options. It operates stably with standard low-value capacitors (1 μF), facilitating cost-effective design implementations. Its low noise characteristics, featuring a typical 36 μVRMS output noise from 100 Hz to 100 kHz, adapt well for sensitive analog signal processing applications.

This voltage regulator is widely used in industrial automation, automotive electronics, instrumentation, and power management circuits in various electronic devices. Its thermal and current protections provide dependable performance in demanding environments.

Packaging and shipment are optimized for reel format, making it suitable for high-volume automated PCB assembly processes. Explore the onsemi range of Power Management ICs on EnvMart for reliable solutions across diverse industrial and automotive applications.

This voltage regulator operates over a wide input voltage range of 2.5 V to 24 V. It features ultra-low quiescent current consumption of typically 4 μA, optimizing efficiency for power-sensitive devices. The device includes protection features such as current limiting and thermal shutdown.

It is housed in a compact TSOT-23 package with 5 pins and low height of 0.9 mm for surface mounting. Excellent voltage ripple rejection (PSRR) of 60 dB at 1 kHz for noise sensitive applications. Stable operation with a 1 μF output capacitor using common capacitor types.

Designed to withstand maximum operating temperatures up to 150°C for reliability. Certified to the automotive standard AEC-Q100, suitable for automotive electronics. Adjustable and fixed output voltage variants available, supporting output voltages between 1.2 V and 5 V.

Low noise output voltage with a typical 36 μVRMS from 100 Hz to 100 kHz, ideal for sensitive analog circuits. EnvMart offers this reliable voltage regulator with detailed technical documentation for advanced industrial and automotive electronic designs.
