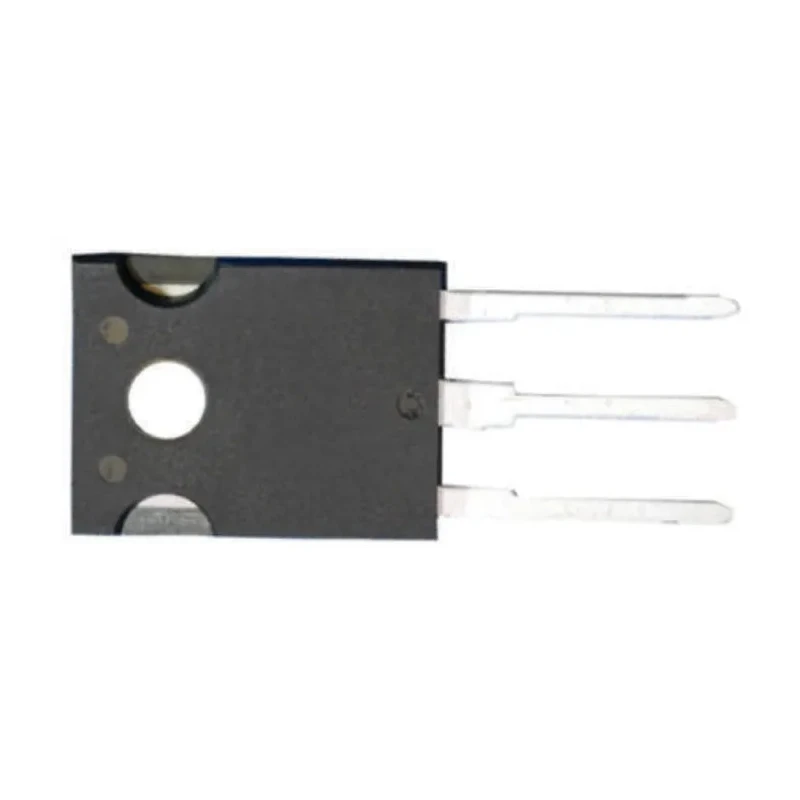

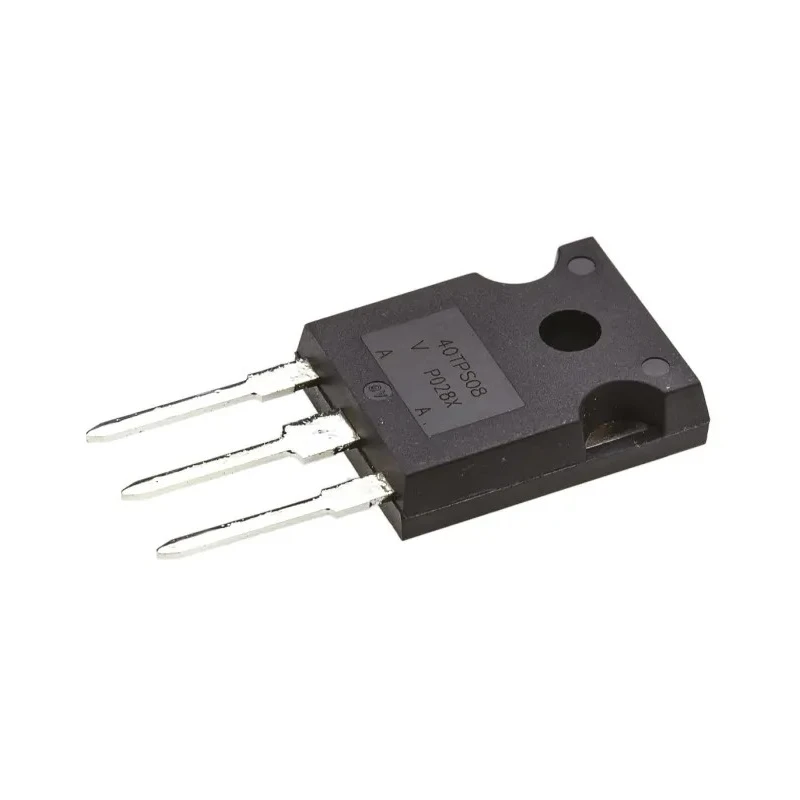

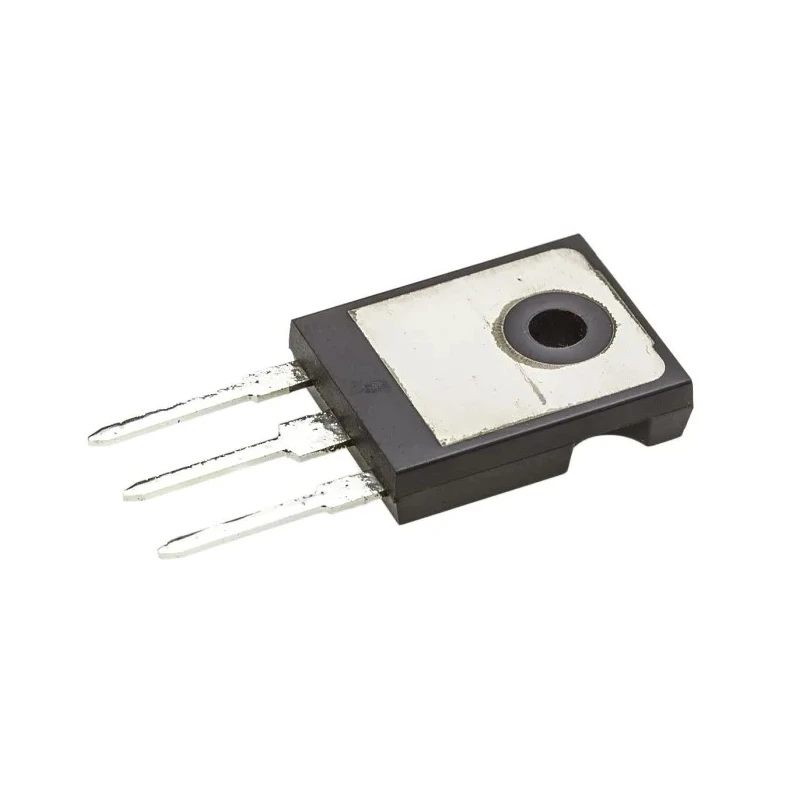

Vishay Thyristor SCR, 800V, 35A, 150mA, TO-247 Package, Through Hole, VS-40TPS08-M3

Free Delivery in India | Lowest Global Shipping Charges

Vishay Thyristor SCR, 800V, 35A, 150mA, TO-247 Package, Through Hole, VS-40TPS08-M3

Name: Vishay Thyristor SCR, 800V, 35A, 150mA, TO-247 Package, Through Hole, VS-40TPS08-M3
Brand: Vishay
SKU: 85041



Category Thyristors Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Model	VS-40TPS08-M3
Mount Type	Through Hole
Series	VS-40TPS-M3
Maximum Operating Temperature	125°C
Package Type	TO-247
Minimum Operating Temperature	-40°C
Pin Count	3
Rated Average On-State Current Irms	35A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	800V
Surge Current Rating	600A
Maximum Gate Trigger Current Igt	150mA
Maximum Holding Current Ih	150mA
Maximum Gate Trigger Voltage Vgt	2.5V
Peak On-State Voltage	1.85V
Repetitive Peak Off-State Current	0.5mA

Key Features

Rated average on-state current of 35A for demanding power applications.
Repetitive peak reverse voltage rated at 800V ensures reliability under high-voltage conditions.
Surge current withstand up to 600A for transient protection.
Maximum gate trigger current of 150mA for controlled switching.
TO-247 package with 3-pin configuration allows secure through-hole mounting.
Operating temperature range from -40°C to 125°C for diverse environments.
Peak on-state voltage of 1.85V for efficient conduction.
Suitable for phase control in battery chargers, welders, plating equipment, and regulated supplies.

Product Description

The Vishay VS-40TPS08-M3 is a silicon-controlled rectifier (SCR) thyristor engineered for phase control in industrial and commercial systems. It combines robust electrical performance, reliability, and convenient mounting to support demanding power management tasks.

Equipped with a rated average on-state current (Irms) of 35A, this device is well suited for applications that require stable and continuous high current. With a repetitive peak reverse voltage (VDRM) of 800V, the VS-40TPS08-M3 safely operates in circuits with substantial voltage swings. Surge current capacity is rated at 600A, permitting it to withstand transient overloads and system spikes without permanent damage.

The maximum gate trigger current (Igt) of 150mA and a gate trigger voltage (Vgt) of 2.5V provide secure switching characteristics. The device features a through-hole TO-247 package, facilitating effortless integration into PCB layouts and assemblies. Its pin count of 3 and electrically isolated base plate contribute to safe operation and simplified mechanical installation.

Temperature tolerance ranges from -40°C to 125°C, making this thyristor suitable for operation across a wide variety of environments, including industrial, laboratory, and field applications. Holding current (Ih) is rated at 150mA, while repetitive peak off-state current remains low at 0.5mA, ensuring minimal leakage under standby conditions. Peak on-state voltage of 1.85V ensures efficient conduction during operation.

Designed specifically for phase control tasks, this SCR supports use in battery chargers, welding equipment, plating machinery, regulated power supplies, and temperature or speed control circuits. The device’s encapsulated and isolated base plate structure improves electrical safety and reliability while easing integration into industrial equipment.

This thyristor is synonymous with SCR technology, recognized for its bistable switching performance. Its precise triggering and robust construction make it an optimal component for engineers designing power regulation and control systems. The VS-40TPS08-M3 is not automotive-rated, but aligns with requirements for industrial electrical standards.
